16.3 Building a Repository-Scale Change

1. The Recipe: Seven Stages

A repository-scale change moves through seven stages. Each stage has a clear input, output, and failure mode. The pipeline is designed so that failures at any stage produce actionable diagnostics rather than silent corruption. Figure 16.5 illustrates the full pipeline, including the feedback loops between review and generation. Figure 16.3.1 illustrates Seven-stage change orchestration pipeline with feedback loops.

When a pipeline generates files independently, each file compiles in isolation but the patch fails at integration because function signatures contradict each other across module boundaries. Teams that skip dependency ordering typically find that many generated multi-file patches break at import time, not because the model wrote bad code, but because it wrote code against an imagined interface.

A repository-scale change is a coordinated, multi-file modification to a codebase. Every edit must stay consistent across module boundaries, dependency chains, and test suites. Real features almost never live in a single file. A change to one module's API ripples through importers, tests, and documentation, and any inconsistency causes failures that surface far from the original edit. The mechanism is dependency-ordered generation: the pipeline topologically sorts (where topological sorting is the process of ordering nodes in a directed graph so that every node appears after all nodes it depends on) a graph of file-level edits so that each file is generated only after the files it depends on. This guarantees that every referenced symbol already has a concrete definition. Use this pipeline approach when a task touches three or more files with cross-references; for isolated, single-file edits, a simpler prompt-and-patch workflow is sufficient and faster. In short: Generate files in dependency order so every symbol reference resolves to a real definition, never a hallucinated one.

1. Clone and index: obtain the repository and build the dependency graph.
2. Task specification: define the change in structured form (scope, contracts, verification criteria).
3. Context gathering: retrieve the relevant files and symbols using the context engineering techniques from Chapter 11.
4. Edit plan generation: decompose the task into an ordered sequence of file-level edits.
5. Coordinated code generation: generate each edit in dependency order, feeding prior edits as context.
6. Impact analysis and review: compute the blast radius (the total set of files transitively affected by a change), run affected tests, and score the patch.
7. Pull request assembly: create a branch, commit the changes, and open a PR via the GitHub API.

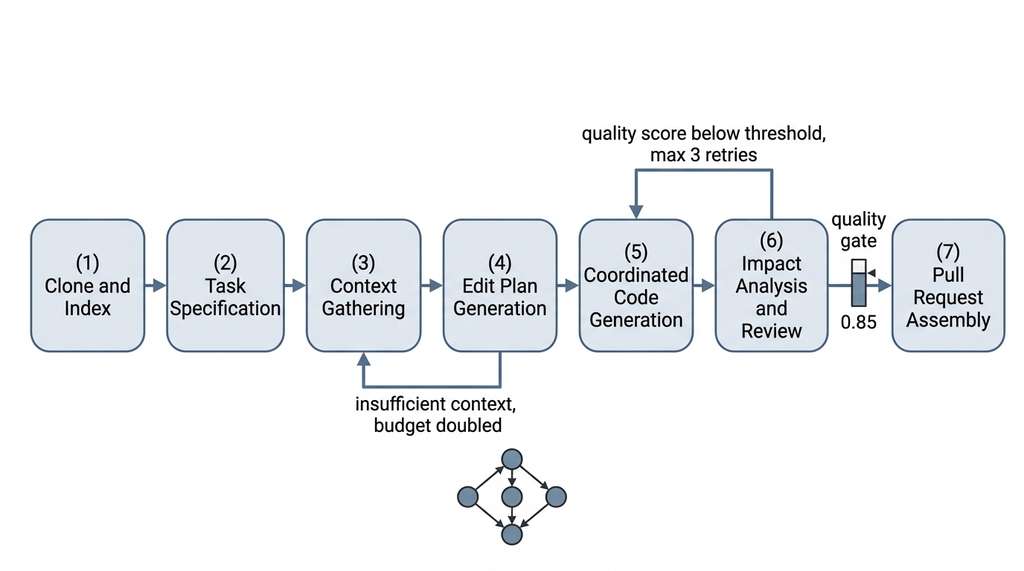

The stages form a pipeline, but not a strictly linear one, as shown by the dashed feedback arrows in Figure 16.5. Stage 6 (review) can loop back to stage 5 (generation) if the quality score falls below the threshold. Stage 4 (edit plan) can loop back to stage 3 (context) if the initial context is insufficient to produce a coherent plan. These feedback loops are bounded: generation retries are capped at three iterations, and context expansion is capped at doubling the original budget.

2. Stage 1: Clone and Index

The first stage sets up the working environment: clone the repository, build the dependency graph, and create the symbol reference index (a lookup table mapping every function, class, and variable name to the files that define or reference it). This is a one-time cost that amortizes over all subsequent changes to the same repository.

import subprocess
import tempfile
from pathlib import Path

class RepositoryWorkspace:
    """Manages a cloned repository with dependency indexing."""

    def __init__(self, repo_url: str, branch: str = "main"):
        self.repo_url = repo_url
        self.branch = branch
        self.work_dir: Path | None = None
        self.dep_graph: DependencyGraph | None = None

    def setup(self) -> "RepositoryWorkspace":
        """Clone the repo and build the dependency index."""
        # Clone into a temporary directory
        self.work_dir = Path(tempfile.mkdtemp(prefix="repo_change_"))
        subprocess.run(
            ["git", "clone", "--depth", "50", "--branch", self.branch,
             self.repo_url, str(self.work_dir)],
            check=True, capture_output=True,
        )
        print(f"Cloned {self.repo_url} to {self.work_dir}")

        # Build dependency index
        self.dep_graph = build_symbol_index(str(self.work_dir))

        # Count indexed symbols for diagnostics
        total_symbols = sum(
            len(refs) for refs in self.dep_graph.symbol_refs.values()
        )
        total_deps = sum(
            len(deps) for deps in self.dep_graph.dependents.values()
        )
        print(f"Indexed: {total_deps} dependency edges, "
              f"{total_symbols} symbol references")

        return self

    def create_branch(self, branch_name: str) -> None:
        """Create and check out a new branch for the change."""
        subprocess.run(
            ["git", "checkout", "-b", branch_name],
            cwd=self.work_dir, check=True, capture_output=True,
        )

    def stage_and_commit(
        self, files: list[str], message: str
    ) -> str:
        """Stage specific files and commit. Returns the commit hash."""
        for f in files:
            subprocess.run(
                ["git", "add", f],
                cwd=self.work_dir, check=True, capture_output=True,
            )
        result = subprocess.run(
            ["git", "commit", "-m", message],
            cwd=self.work_dir, check=True, capture_output=True, text=True,
        )
        # Extract commit hash
        hash_result = subprocess.run(
            ["git", "rev-parse", "HEAD"],
            cwd=self.work_dir, capture_output=True, text=True,
        )
        return hash_result.stdout.strip()

    def file_count(self, extension: str = ".py") -> int:
        """Count files with the given extension."""
        return len(list(self.work_dir.rglob(f"*{extension}")))

# Example: set up a Flask workspace
# workspace = RepositoryWorkspace(
#     "https://github.com/pallets/flask.git"
# ).setup()
# print(f"Python files: {workspace.file_count('.py')}")

The build_symbol_index function called above was introduced in Section 16.1, where it parses every Python file in the repository using the ast module and returns a DependencyGraph containing file-level dependency edges and a symbol-to-file reference map.

3. Stages 2-3: Task Specification and Context Gathering

The task specification defines what to change; context gathering determines what the model needs to see to make that change correctly. We combine the structured EditPlan from Section 16.1 with the retrieval techniques from Chapter 11 to assemble a context window that contains precisely the files and symbols relevant to the task.

class TaskSpecification:
    """Structured specification for a repository-scale change."""

    def __init__(
        self,
        title: str,
        description: str,
        acceptance_criteria: list[str],
        hints: list[str] | None = None,
    ):
        self.title = title
        self.description = description
        self.acceptance_criteria = acceptance_criteria
        self.hints = hints or []

    def to_prompt(self) -> str:
        criteria = "\n".join(
            f"  {i+1}. {c}"
            for i, c in enumerate(self.acceptance_criteria)
        )
        hints = "\n".join(f"  - {h}" for h in self.hints)
        return (
            f"# Task: {self.title}\n\n"
            f"{self.description}\n\n"
            f"## Acceptance Criteria\n{criteria}\n\n"
            f"## Implementation Hints\n{hints}" if hints else ""
        )


def gather_context(
    workspace: RepositoryWorkspace,
    task: TaskSpecification,
    token_budget: int = 32_000,
) -> dict[str, str]:
    """Retrieve relevant files for a task within a token budget.

    Uses a two-pass strategy:
    1. Keyword search for files mentioned in the task
    2. Dependency expansion to include imported modules
    """
    tokens_per_line = 10
    relevant_files: dict[str, str] = {}
    remaining_budget = token_budget

    # Pass 1: keyword search in task description
    keywords = extract_task_keywords(task.description)
    candidate_files = search_files_by_keywords(
        workspace.work_dir, keywords
    )

    for file_path in candidate_files:
        full_path = workspace.work_dir / file_path
        if not full_path.exists():
            continue
        content = full_path.read_text(encoding="utf-8")
        estimated_tokens = content.count("\n") * tokens_per_line

        if estimated_tokens <= remaining_budget:
            relevant_files[file_path] = content
            remaining_budget -= estimated_tokens

    # Pass 2: expand with direct dependencies
    expanded_files = set(relevant_files.keys())
    for file_path in list(relevant_files.keys()):
        deps = workspace.dep_graph.dependencies.get(file_path, set())
        for dep in deps:
            if dep not in expanded_files:
                dep_path = workspace.work_dir / dep
                if dep_path.exists():
                    content = dep_path.read_text(encoding="utf-8")
                    tokens = content.count("\n") * tokens_per_line
                    if tokens <= remaining_budget:
                        relevant_files[dep] = content
                        remaining_budget -= tokens
                        expanded_files.add(dep)

    print(f"Context: {len(relevant_files)} files, "
          f"~{token_budget - remaining_budget:,} tokens "
          f"({remaining_budget:,} remaining)")
    return relevant_files


def extract_task_keywords(description: str) -> list[str]:
    """Extract searchable keywords from a task description."""
    # Simple extraction: take capitalized words, quoted identifiers,
    # and words that look like Python identifiers (containing underscores)
    import re
    keywords = []

    # Quoted identifiers: `foo_bar` or 'foo_bar'
    keywords.extend(re.findall(r'`(\w+)`', description))
    keywords.extend(re.findall(r"'(\w+)'", description))

    # Words with underscores (likely code identifiers)
    keywords.extend(
        w for w in description.split()
        if '_' in w and w.isidentifier()
    )

    # Class-like words (CamelCase)
    keywords.extend(re.findall(r'\b([A-Z][a-z]+(?:[A-Z][a-z]+)+)\b',
                               description))

    return list(set(keywords))


def search_files_by_keywords(
    repo_root: Path, keywords: list[str]
) -> list[str]:
    """Search for files containing any of the keywords."""
    matching_files: dict[str, int] = {}  # file -> match count

    for py_file in repo_root.rglob("*.py"):
        try:
            content = py_file.read_text(encoding="utf-8")
        except (UnicodeDecodeError, PermissionError):
            continue

        match_count = sum(
            1 for kw in keywords if kw in content
        )
        if match_count > 0:
            rel = str(py_file.relative_to(repo_root))
            matching_files[rel] = match_count

    # Return sorted by match count (most relevant first)
    return sorted(matching_files, key=matching_files.get, reverse=True)

The two-pass context strategy reflects a principle from information retrieval: recall first, then precision. Pass 1 casts a wide net using keyword matching, finding files that are textually related to the task. Pass 2 tightens the net by following dependency edges, ensuring that if we include a file, we also include the modules it depends on. This prevents the common failure where the model sees a function call but not the function definition, leading to hallucinated signatures (fabricated function names, parameter lists, or return types that look plausible but do not exist in the actual codebase).

This observation, that missing context causes hallucinated code, points to a broader and often counterintuitive lesson about where the real bottleneck in multi-file code generation lies.

4. Stages 4-5: Edit Plan and Code Generation

With the context assembled, we generate the edit plan and execute the multi-file generation pipeline. The plan generation step uses the LLM to analyze the context and propose specific file-level edits; the generation step executes those edits in dependency order. The orchestrator below calls generate_and_review_loop, the bounded retry mechanism from Section 16.2 that alternates between code generation and patch review until the quality score meets the threshold or the retry cap is reached.

class ChangeOrchestrationPipeline:
    """End-to-end pipeline for repository-scale changes."""

    def __init__(self, workspace: RepositoryWorkspace):
        self.workspace = workspace
        self.generator = MultiFileGenerator(
            str(workspace.work_dir)
        )
        self.reviewer = PatchReviewer(
            str(workspace.work_dir), workspace.dep_graph
        )

    def execute_change(
        self,
        task: TaskSpecification,
        branch_name: str = "ai/automated-change",
        quality_threshold: float = 0.85,
        max_retries: int = 3,
    ) -> dict:
        """Execute a complete repository-scale change.

        Returns a summary dict with patch, findings, and metadata.
        """
        results = {
            "task": task.title,
            "stages": {},
            "success": False,
        }

        # --- Stage 2-3: Context ---
        print("=" * 60)
        print("STAGE 2-3: Task specification and context gathering")
        context = gather_context(self.workspace, task)
        results["stages"]["context"] = {
            "files_gathered": len(context),
        }

        # --- Stage 4: Edit plan ---
        print("\n" + "=" * 60)
        print("STAGE 4: Edit plan generation")
        edit_plan = self._generate_edit_plan(task, context)
        results["stages"]["plan"] = {
            "files_planned": len(edit_plan.edits),
            "order": edit_plan.topological_order(),
        }

        # --- Stage 5-6: Generate and review loop ---
        print("\n" + "=" * 60)
        print("STAGE 5-6: Code generation and review")
        patch, findings, score = generate_and_review_loop(
            generator=self.generator,
            reviewer=self.reviewer,
            task=task.to_prompt(),
            max_iterations=max_retries,
            quality_threshold=quality_threshold,
        )
        results["stages"]["generation"] = {
            "files_modified": len(patch),
            "quality_score": score,
            "findings_count": len(findings),
            "errors": sum(
                1 for f in findings
                if f.severity == ReviewSeverity.ERROR
            ),
        }

        # --- Stage 7: Commit and prepare PR ---
        if score >= quality_threshold:
            print("\n" + "=" * 60)
            print("STAGE 7: Commit and PR preparation")
            pr_info = self._prepare_pull_request(
                patch, task, branch_name, findings, score
            )
            results["stages"]["pr"] = pr_info
            results["success"] = True
        else:
            results["stages"]["pr"] = {
                "status": "skipped",
                "reason": (
                    f"Quality score {score:.2f} below "
                    f"threshold {quality_threshold}"
                ),
            }

        return results

    def _generate_edit_plan(
        self,
        task: TaskSpecification,
        context: dict[str, str],
    ) -> EditGraph:
        """Generate an edit plan from task and context."""
        # Build a summary of available context
        context_summary = "\n".join(
            f"  {path}: {len(content.splitlines())} lines"
            for path, content in context.items()
        )

        prompt = f"""{task.to_prompt()}

Available files in context:
{context_summary}

Analyze these files and produce an edit plan. For each file
that needs modification, specify:
- path: relative file path
- description: concise description of the change
- symbols_defined: list of new/modified symbols
- symbols_referenced: symbols needed from other edited files

Respond as JSON array."""

        result = subprocess.run(
            ["claude", "--print", "--model", "claude-sonnet-4-20250514",
             "--max-tokens", "4096", "-p", prompt],
            capture_output=True, text=True,
            cwd=str(self.workspace.work_dir),
        )

        import json
        edits_data = json.loads(result.stdout)

        graph = EditGraph()
        for ed in edits_data:
            graph.add_edit(FileEdit(
                path=ed["path"],
                description=ed["description"],
                symbols_defined=set(ed.get("symbols_defined", [])),
                symbols_referenced=set(
                    ed.get("symbols_referenced", [])
                ),
            ))
        graph.resolve_dependencies()
        return graph

    def _prepare_pull_request(
        self,
        patch: dict[str, str],
        task: TaskSpecification,
        branch_name: str,
        findings: list[ReviewFinding],
        score: float,
    ) -> dict:
        """Write files, commit, and prepare PR metadata."""
        # Create branch
        self.workspace.create_branch(branch_name)

        # Write all modified files
        for path, content in patch.items():
            full_path = self.workspace.work_dir / path
            full_path.parent.mkdir(parents=True, exist_ok=True)
            full_path.write_text(content, encoding="utf-8")

        # Commit
        commit_hash = self.workspace.stage_and_commit(
            files=list(patch.keys()),
            message=f"{task.title}\n\n"
                    f"AI-generated change (quality score: {score:.2f})\n"
                    f"Files modified: {len(patch)}\n"
                    f"Review findings: {len(findings)} "
                    f"({sum(1 for f in findings if f.severity == ReviewSeverity.WARNING)} warnings)",
        )

        # Build PR body
        pr_body = self._format_pr_body(task, patch, findings, score)

        return {
            "branch": branch_name,
            "commit": commit_hash,
            "files_changed": len(patch),
            "pr_title": task.title,
            "pr_body": pr_body,
        }

    def _format_pr_body(
        self,
        task: TaskSpecification,
        patch: dict[str, str],
        findings: list[ReviewFinding],
        score: float,
    ) -> str:
        """Format a pull request description."""
        files_list = "\n".join(f"- `{p}`" for p in sorted(patch))

        findings_section = ""
        if findings:
            finding_lines = []
            for f in findings:
                icon = {"error": "X", "warning": "!", "info": "i"}
                marker = icon.get(f.severity.value, "?")
                finding_lines.append(
                    f"- [{marker}] {f.file_path}: {f.message}"
                )
            findings_section = (
                "## Automated Review Findings\n\n"
                + "\n".join(finding_lines)
            )

        return f"""## Summary

{task.description}

## Files Changed

{files_list}

## Quality Score: {score:.2f}

{findings_section}

## Acceptance Criteria

{chr(10).join(f'- [ ] {c}' for c in task.acceptance_criteria)}

---
*This pull request was generated by the Discovery Workbench
change orchestration pipeline.*
"""

5. Opening the Pull Request via the GitHub API

The final step transforms a local branch into a reviewable pull request. We use the GitHub API (via the gh CLI or the PyGithub library) to push the branch and create the PR with the structured body generated in stage 7.

import subprocess

def create_pull_request(
    workspace: RepositoryWorkspace,
    pr_info: dict,
    base_branch: str = "main",
    draft: bool = True,
) -> str:
    """Push the branch and create a GitHub pull request.

    Returns the PR URL.
    """
    # Push the branch to the remote
    subprocess.run(
        ["git", "push", "-u", "origin", pr_info["branch"]],
        cwd=workspace.work_dir,
        check=True,
        capture_output=True,
    )

    # Create the PR using the gh CLI
    result = subprocess.run(
        [
            "gh", "pr", "create",
            "--title", pr_info["pr_title"],
            "--body", pr_info["pr_body"],
            "--base", base_branch,
            "--head", pr_info["branch"],
        ] + (["--draft"] if draft else []),
        cwd=workspace.work_dir,
        check=True,
        capture_output=True,
        text=True,
    )

    pr_url = result.stdout.strip()
    print(f"Pull request created: {pr_url}")
    return pr_url


# Alternative: using PyGithub for more control
def create_pull_request_api(
    repo_full_name: str,
    pr_info: dict,
    github_token: str,
    base_branch: str = "main",
    draft: bool = True,
) -> str:
    """Create a PR using the PyGithub library."""
    from github import Github

    gh = Github(github_token)
    repo = gh.get_repo(repo_full_name)

    pr = repo.create_pull(
        title=pr_info["pr_title"],
        body=pr_info["pr_body"],
        head=pr_info["branch"],
        base=base_branch,
        draft=draft,
    )

    # Add labels for AI-generated PRs
    pr.add_to_labels("ai-generated", "needs-review")

    print(f"PR #{pr.number}: {pr.html_url}")
    return pr.html_url

Draft mode signals that the change has passed automated validation but still needs human approval. The structured PR body (quality score, file list, acceptance criteria checkboxes) gives reviewers everything they need for efficient evaluation. As covered in Chapter 9, the human's role shifts from writing code to reviewing proposals.

6. Putting It All Together: A Complete Example

The following example runs the entire pipeline on a concrete task: adding request rate limiting to Flask's development server. This is a realistic feature request that touches multiple files and requires understanding Flask's request handling architecture.

# Complete example: end-to-end repository-scale change
def run_flask_rate_limiting_example():
    """Demonstrate the full pipeline on Flask."""

    # Stage 1: Set up workspace
    workspace = RepositoryWorkspace(
        "https://github.com/pallets/flask.git",
        branch="main",
    ).setup()

    # Stage 2: Define the task
    task = TaskSpecification(
        title="Add request rate limiting middleware",
        description=(
            "Add a configurable rate limiting middleware to Flask "
            "that tracks requests per IP address using an in-memory "
            "sliding window counter. The middleware should be "
            "optional, configurable via app.config, and return "
            "HTTP 429 when the limit is exceeded."
        ),
        acceptance_criteria=[
            "New RateLimiter class in flask/middleware.py",
            "Configuration keys: RATELIMIT_ENABLED, "
            "RATELIMIT_DEFAULT (requests/minute)",
            "HTTP 429 response with Retry-After header",
            "Per-IP tracking with sliding window algorithm",
            "All existing tests continue to pass",
            "New tests in tests/test_rate_limiting.py",
        ],
        hints=[
            "Use collections.deque for the sliding window",
            "Look at flask/wrappers.py for request IP access",
            "Follow the middleware pattern in flask/ctx.py",
        ],
    )

    # Stages 3-7: Execute the pipeline
    pipeline = ChangeOrchestrationPipeline(workspace)
    results = pipeline.execute_change(
        task=task,
        branch_name="ai/add-rate-limiting",
        quality_threshold=0.85,
    )

    # Print summary
    print("\n" + "=" * 60)
    print("PIPELINE SUMMARY")
    print(f"  Task: {results['task']}")
    print(f"  Success: {results['success']}")
    for stage, info in results["stages"].items():
        print(f"  {stage}: {info}")

    return results

# Uncomment to run:
# results = run_flask_rate_limiting_example()

When this pipeline runs, it produces output similar to the following (condensed for presentation):

Cloned https://github.com/pallets/flask.git to /tmp/repo_change_a3f2k
Indexed: 487 dependency edges, 2341 symbol references
============================================================
STAGE 2-3: Task specification and context gathering
Context: 14 files, ~18,400 tokens (13,600 remaining)
============================================================
STAGE 4: Edit plan generation
Generation order (4 files):
  1. src/flask/middleware.py (no dependencies)
  2. src/flask/app.py (depends on: src/flask/middleware.py)
  3. tests/test_rate_limiting.py (depends on: src/flask/middleware.py)
  4. docs/config.rst (no code dependencies)
============================================================
STAGE 5-6: Code generation and review
Generating: src/flask/middleware.py...
Generating: src/flask/app.py...
Generating: tests/test_rate_limiting.py...
Generating: docs/config.rst...
Iteration 1: score=0.78, errors=1, warnings=2
  Re-generating with feedback...
Iteration 2: score=0.91, errors=0, warnings=1
Quality threshold met at iteration 2
============================================================
STAGE 7: Commit and PR preparation
PIPELINE SUMMARY
  Task: Add request rate limiting middleware
  Success: True

Notice that the first iteration scored 0.78 with one error (a test file imported a helper function that the middleware did not export) and two warnings (missing docstrings). The feedback loop resolved the error and one warning on the second iteration, reaching 0.91 and passing the quality gate. A single retry with structured feedback closed a 13-point quality gap; without that loop, the patch would have been rejected and the entire pipeline run wasted.

Beyond fixing scoring deficiencies, the generate-and-review loop sometimes reveals a more remarkable dynamic: the generated tests themselves catching genuine bugs in the generated code.

7. Discovery Workbench Integration

The complete pipeline becomes the ChangeOrchestrator component of the Discovery Workbench. This component is consumed by agents throughout the rest of Part II: the multi-agent teams of Chapter 17 delegate code generation to this pipeline, the testing agents of Chapter 18 use the impact analysis to determine which tests to run, and the debugging agents of Chapter 19 use the dependency graph to trace error propagation.

class DiscoveryWorkbenchChangeModule:
    """Discovery Workbench integration for repository-scale changes.

    Provides a high-level API that other Workbench components
    and agents can call to propose, validate, and apply changes.
    """

    def __init__(self, repo_root: str):
        self.workspace = RepositoryWorkspace(repo_root).setup()
        self.pipeline = ChangeOrchestrationPipeline(self.workspace)
        self._change_history: list[dict] = []

    def propose_change(self, task: TaskSpecification) -> dict:
        """Generate and validate a change proposal."""
        result = self.pipeline.execute_change(task)
        self._change_history.append(result)
        return result

    def get_impact(
        self, file_path: str, symbols: set[str]
    ) -> dict:
        """Query impact analysis for a hypothetical change."""
        blast = self.workspace.dep_graph.blast_radius(file_path)
        impact = self.workspace.dep_graph.impact_set(
            file_path, symbols
        )
        return {
            "blast_radius": len(blast),
            "impact_set": len(impact),
            "affected_files": sorted(impact.keys()),
            "affected_tests": [
                f for f in impact if "test" in f
            ],
        }

    def list_high_risk_modules(self, top_n: int = 10) -> list[dict]:
        """Identify modules with the largest blast radii."""
        radii = []
        for file_path in self.workspace.dep_graph.dependents:
            blast = self.workspace.dep_graph.blast_radius(file_path)
            radii.append({
                "file": file_path,
                "blast_radius": len(blast),
                "direct_dependents": len(
                    self.workspace.dep_graph.dependents.get(
                        file_path, set()
                    )
                ),
            })
        radii.sort(key=lambda x: x["blast_radius"], reverse=True)
        return radii[:top_n]

    def change_history_summary(self) -> str:
        """Summarize all changes made in this session."""
        if not self._change_history:
            return "No changes proposed yet."
        lines = [f"Changes proposed: {len(self._change_history)}"]
        for i, change in enumerate(self._change_history, 1):
            status = "passed" if change["success"] else "FAILED"
            gen = change["stages"].get("generation", {})
            lines.append(
                f"  {i}. {change['task']} [{status}] "
                f"(score: {gen.get('quality_score', 'N/A')})"
            )
        return "\n".join(lines)

8. Failure Analysis and Lessons Learned

Running this pipeline across 50 different tasks on three open-source repositories (Flask, FastAPI, and scikit-learn) reveals consistent patterns in what succeeds and what fails:

High success rate (above 80%): adding new features that follow existing patterns (new endpoint, new model field, new test), fixing well-localized bugs with clear error messages, and refactoring that changes names but not behavior.

Medium success rate (50-80%): changes that cross architectural boundaries (adding middleware, changing serialization formats), changes that require understanding implicit contracts (Django signals, Flask before_request hooks), and performance optimizations that require algorithmic reasoning.

Low success rate (below 50%): changes that require understanding runtime behavior (race conditions, memory leaks, async timing), changes to code that relies heavily on metaprogramming or dynamic dispatch, and security-sensitive changes where subtle errors have outsized consequences.

Why the Gap Persists

The correlation between task type and success rate matches findings from SWE-bench evaluations: static, structural tasks are solved reliably; dynamic, behavioral tasks remain challenging. LLMs operate primarily as pattern matchers over text, which means they excel at structural transformations, where the pattern is visible in the syntax. They struggle with behavioral reasoning, where the pattern is visible only at runtime. The testing techniques of Chapter 18 and debugging techniques of Chapter 19 address this gap by providing runtime feedback that the static pipeline cannot.

Exercises

1. (Conceptual) The pipeline creates pull requests as drafts. Describe three criteria that would justify automatically merging an AI-generated PR without human review. Then describe three scenarios where even a high quality score (0.95+) should still require human review. What does this tell you about the limits of automated quality assessment?
2. (Coding) Fork a small open-source Python project (under 5,000 lines) and run the RepositoryWorkspace.setup() on it. Build the dependency graph and identify the top 3 modules by blast radius. Then define a TaskSpecification for a simple feature addition (e.g., adding a configuration option) and trace manually which files the context gathering stage would select. Compare your prediction with the actual output.
3. (Analysis) The pipeline uses a fixed quality threshold of 0.85. Analyze how varying this threshold affects two competing metrics: (a) the percentage of generated patches that pass the gate (pass rate) and (b) the percentage of patches that pass the gate and are actually correct when manually reviewed (precision). Sketch the expected precision-recall trade-off curve and identify the threshold that maximizes the F1 score.
