20.1 Threat Modeling

1. Why Threat Modeling Comes First

What if the most dangerous vulnerability in your system is not a bug in any single line of code, but a question nobody thought to ask during design? That question separates teams who patch fires from teams who prevent them. Most security work happens too late: teams write code, deploy it, then run a vulnerability scanner and scramble to fix whatever it finds. This approach has two problems. First, the scanner only finds the vulnerability patterns it knows about; novel flaws slip through. Second, fixing vulnerabilities after deployment is expensive: studies such as NIST's cost-of-defect analyses suggest that a flaw caught during design can cost roughly an order of magnitude less to fix than one caught in production, though the exact ratio varies by project and organization. Threat modeling inverts this timeline by analyzing risks during design, when changes are cheap.

In 2017, the Equifax breach exposed the personal data of 147 million people, not because of a sophisticated zero-day exploit, but because a known vulnerability sat unpatched in a component no one had flagged as critical. A structured threat model would likely have identified that component's trust boundary and escalated its patch priority months earlier.

Threat modeling decomposes a system into its components, data flows (the connections carrying information between components), and trust boundaries (dividing lines between regions that operate at different privilege levels, defined formally in Section 3 below), then systematically enumerates the ways an adversary could abuse each element. It matters because it surfaces architectural vulnerabilities that no scanner or code review can detect: flaws that arise from how components interact rather than from any single line of code. You walk through every component and every data flow, applying a checklist of threat categories (such as STRIDE) to consider spoofing, tampering, information leakage, and other attack classes that teams routinely overlook. Use threat modeling during system design or before major architectural changes; for individual code-level bugs, static analysis tools and code review are more appropriate. In short: the most dangerous vulnerabilities live not in lines of code but in the gaps between components, and threat modeling is the only discipline that systematically searches those gaps.

The connection to discovery is direct. In Chapter 1, we defined discovery as search through a space of possibilities. Threat modeling is search through the space of possible attacks. The search space is defined by your system's architecture (its components, data flows, and trust boundaries), and the goal is to find attack paths that an adversary could exploit. A good threat model is a map of this space, and every security control you add narrows the regions where attacks can succeed.

To conduct that search effectively, you need a framework that converts the open question of "is this system secure?" into a finite set of concrete, answerable checks.

2. The STRIDE Framework

STRIDE is Microsoft's threat classification framework, introduced by Loren Kohnfelder and Praerit Garg in 1999 and refined by Adam Shostack into the standard methodology used across the industry. The acronym names six categories of threats, each paired with a security property it violates:

The power of STRIDE is its breadth as a checklist: it covers the most common categories of software threats, though it does not address every possible risk (supply-chain attacks and privacy violations, for example, fall outside its scope). For every component in your system, you ask six questions: Can someone spoof its identity? Can they tamper with its data? Can they deny performing an action? Can they read data they should not? Can they make it unavailable? Can they gain privileges they should not have? Not every question will yield a real threat for every component, but the discipline of asking ensures you do not overlook an entire category.

3. Dataflow Diagrams and Trust Boundaries

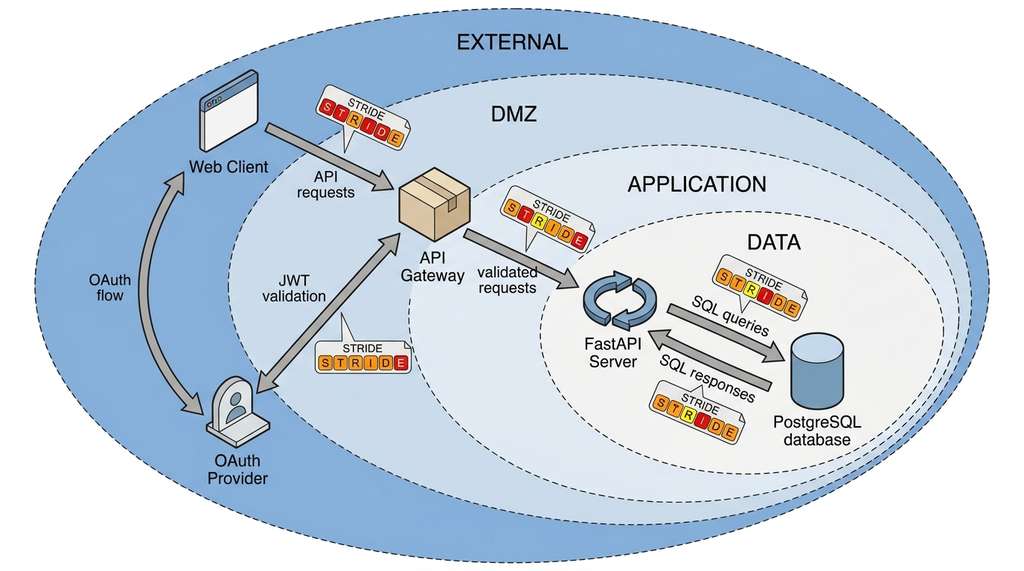

STRIDE analysis begins with a dataflow diagram (DFD), where a DFD is a visual map of how data moves through a system's components. A DFD contains four types of elements: processes (code that transforms data), data stores (databases, files, caches), external entities (users, third-party services), and data flows (connections between elements). Over this diagram, you draw trust boundaries: lines separating regions with different privilege levels. Every data flow that crosses a trust boundary is a potential attack surface. Figure 20.1.1 illustrates dataflow diagram with trust boundaries and STRIDE analysis.

The following DFD models a scientific data API, the kind of service the Discovery Workbench might expose for experiment result queries. The system has a web client, a FastAPI server, a PostgreSQL database, and an external authentication provider. Figure 20.1 illustrates this architecture, with dashed borders marking the four trust zones and arrows showing each data flow that crosses a boundary.

"""
Dataflow diagram representation for threat modeling.
We model the system as a graph of elements and flows,
then identify trust boundaries programmatically.
"""
from dataclasses import dataclass, field
from enum import Enum
from typing import Optional


class ElementType(Enum):
    PROCESS = "process"
    DATA_STORE = "data_store"
    EXTERNAL_ENTITY = "external_entity"


class TrustZone(Enum):
    EXTERNAL = "external"         # Untrusted: users, public internet
    DMZ = "dmz"                   # Semi-trusted: load balancers, API gateways
    APPLICATION = "application"   # Trusted: application servers
    DATA = "data"                 # High-trust: databases, secret stores


@dataclass
class Element:
    name: str
    element_type: ElementType
    trust_zone: TrustZone
    description: str = ""


@dataclass
class DataFlow:
    source: str           # Element name
    destination: str      # Element name
    data_description: str
    protocol: str = "HTTPS"
    authenticated: bool = False
    encrypted: bool = True

    def crosses_trust_boundary(
        self, elements: dict[str, Element]
    ) -> bool:
        """A flow crosses a trust boundary when source and
        destination are in different trust zones."""
        src_zone = elements[self.source].trust_zone
        dst_zone = elements[self.destination].trust_zone
        return src_zone != dst_zone


@dataclass
class ThreatModel:
    name: str
    elements: dict[str, Element] = field(default_factory=dict)
    flows: list[DataFlow] = field(default_factory=list)

    def add_element(self, element: Element) -> None:
        self.elements[element.name] = element

    def add_flow(self, flow: DataFlow) -> None:
        self.flows.append(flow)

    def boundary_crossing_flows(self) -> list[DataFlow]:
        """Identify all flows that cross trust boundaries.
        These are the primary attack surface."""
        return [
            f for f in self.flows
            if f.crosses_trust_boundary(self.elements)
        ]


# Build the DFD for our scientific data API
model = ThreatModel(name="Discovery Workbench Data API")

model.add_element(Element(
    "web_client", ElementType.EXTERNAL_ENTITY,
    TrustZone.EXTERNAL, "Browser-based research dashboard"
))
model.add_element(Element(
    "auth_provider", ElementType.EXTERNAL_ENTITY,
    TrustZone.EXTERNAL, "OAuth2 identity provider (e.g., ORCID)"
))
model.add_element(Element(
    "api_gateway", ElementType.PROCESS,
    TrustZone.DMZ, "Rate limiting, TLS termination"
))
model.add_element(Element(
    "fastapi_server", ElementType.PROCESS,
    TrustZone.APPLICATION, "Core API: experiment queries, data export"
))
model.add_element(Element(
    "postgres_db", ElementType.DATA_STORE,
    TrustZone.DATA, "Experiment results, user profiles, audit logs"
))

model.add_flow(DataFlow(
    "web_client", "api_gateway",
    "API requests with bearer token",
    authenticated=True
))
model.add_flow(DataFlow(
    "api_gateway", "fastapi_server",
    "Validated, rate-limited requests",
    protocol="HTTP", encrypted=False  # Internal network
))
model.add_flow(DataFlow(
    "fastapi_server", "postgres_db",
    "SQL queries with parameterized inputs",
    protocol="PostgreSQL", authenticated=True
))
model.add_flow(DataFlow(
    "web_client", "auth_provider",
    "OAuth2 authorization code flow"
))
model.add_flow(DataFlow(
    "auth_provider", "fastapi_server",
    "JWT validation via JWKS endpoint"
))

# Find the attack surface
boundary_flows = model.boundary_crossing_flows()
print(f"Total flows: {len(model.flows)}")
print(f"Boundary-crossing flows: {len(boundary_flows)}")
for flow in boundary_flows:
    src = model.elements[flow.source]
    dst = model.elements[flow.destination]
    print(f"  {src.trust_zone.value} -> {dst.trust_zone.value}: "
          f"{flow.source} -> {flow.destination}")
    print(f"    Data: {flow.data_description}")
    print(f"    Encrypted: {flow.encrypted}, "
          f"Authenticated: {flow.authenticated}")

The output reveals that all five flows cross trust boundaries, but the most concerning are the unencrypted internal flow between the API gateway and the FastAPI server (vulnerable to network sniffing in shared hosting, as highlighted in red in Figure 20.1) and the database connection (where a compromised application server gains full data access). These crossing points become the focus of STRIDE analysis.

4. Applying STRIDE to Each Flow

STRIDE applies systematically to each boundary-crossing flow. The following code automates this analysis, generating a structured threat catalog:

"""
Automated STRIDE analysis for each boundary-crossing flow.
Generates a threat catalog with risk ratings.
"""
from dataclasses import dataclass


@dataclass
class Threat:
    category: str        # S, T, R, I, D, or E
    flow_description: str
    threat_description: str
    severity: str        # Critical, High, Medium, Low
    mitigation: str


STRIDE_QUESTIONS = {
    "S": "Can an attacker impersonate the {src} to the {dst}?",
    "T": "Can an attacker modify data in transit from {src} to {dst}?",
    "R": "Can {src} deny having sent data to {dst}?",
    "I": "Can an attacker observe data flowing from {src} to {dst}?",
    "D": "Can an attacker disrupt the flow from {src} to {dst}?",
    "E": "Can {src} gain elevated privileges at {dst}?",
}


def stride_analysis(
    flow: DataFlow, elements: dict[str, Element]
) -> list[Threat]:
    """Apply STRIDE to a single dataflow, generating threats
    based on the flow's properties."""
    threats = []
    src = elements[flow.source]
    dst = elements[flow.destination]

    # Spoofing: unauth flows are vulnerable
    if not flow.authenticated:
        threats.append(Threat(
            "S", f"{flow.source} -> {flow.destination}",
            f"Attacker spoofs {src.name} identity to {dst.name} "
            f"(no authentication on this flow)",
            "High",
            "Add mutual TLS or token-based authentication"
        ))

    # Tampering: unencrypted flows are vulnerable
    if not flow.encrypted:
        threats.append(Threat(
            "T", f"{flow.source} -> {flow.destination}",
            f"Attacker modifies data between {src.name} and "
            f"{dst.name} (unencrypted {flow.protocol})",
            "High",
            "Enable TLS encryption on internal network segment"
        ))

    # Information Disclosure: unencrypted flows leak data
    if not flow.encrypted:
        threats.append(Threat(
            "I", f"{flow.source} -> {flow.destination}",
            f"Network observer reads {flow.data_description} "
            f"in plaintext",
            "High" if "token" in flow.data_description.lower()
            else "Medium",
            "Encrypt all inter-service communication"
        ))

    # Denial of Service: external sources can flood
    if src.trust_zone == TrustZone.EXTERNAL:
        threats.append(Threat(
            "D", f"{flow.source} -> {flow.destination}",
            f"External entity {src.name} floods {dst.name} "
            f"with requests",
            "Medium",
            "Implement rate limiting and request size caps"
        ))

    # Elevation of Privilege: zone transitions
    src_z = src.trust_zone.value
    dst_z = dst.trust_zone.value
    if (src.trust_zone in (TrustZone.EXTERNAL, TrustZone.DMZ)
            and dst.trust_zone in (TrustZone.APPLICATION, TrustZone.DATA)):
        threats.append(Threat(
            "E", f"{flow.source} -> {flow.destination}",
            f"Compromised {src.name} ({src_z}) accesses "
            f"{dst.name} ({dst_z}) resources",
            "Critical",
            "Enforce principle of least privilege; "
            "use service accounts with minimal permissions"
        ))

    return threats


# Run STRIDE on all boundary-crossing flows
all_threats = []
for flow in model.boundary_crossing_flows():
    flow_threats = stride_analysis(flow, model.elements)
    all_threats.extend(flow_threats)

# Summary
print(f"\nThreat catalog: {len(all_threats)} threats identified")
for t in all_threats:
    print(f"  [{t.category}] {t.severity}: {t.threat_description}")
    print(f"       Mitigation: {t.mitigation}")

5. Attack Trees

Where STRIDE gives you a flat list of threats, attack trees give you a hierarchical view of how an attacker might achieve a specific goal. An attack tree is a rooted tree structure in which each node represents either an attacker objective or a concrete attack step, and branches decompose high-level goals into increasingly specific actions. An attack tree has a root node (the attacker's objective, such as "exfiltrate experiment data") and child nodes representing the steps or conditions needed to reach that objective. Children connected by AND gates require all sub-steps; children connected by OR gates require any one. Leaf nodes (the bottommost nodes in the tree, with no children of their own) are concrete attack actions with estimated cost, skill level, and probability of success.

Attack trees were formalized by Bruce Schneier in 1999 and connect to the search trees of Chapter 1. Just as a search algorithm explores a tree of possible states to find a goal state, an attacker explores a tree of possible actions to find an exploit path. Defense consists of pruning branches (making attack steps infeasible or expensive) until no viable path remains.

"""
Attack tree construction and analysis.
Trees model hierarchical attack paths with AND/OR gates.
"""
from dataclasses import dataclass, field
from enum import Enum
from typing import Optional


class GateType(Enum):
    OR = "or"    # Any child suffices
    AND = "and"  # All children required


@dataclass
class AttackNode:
    name: str
    description: str
    gate: GateType = GateType.OR
    cost: Optional[float] = None       # Estimated cost in USD
    skill_level: Optional[str] = None  # novice, intermediate, expert
    mitigated: bool = False
    children: list["AttackNode"] = field(default_factory=list)

    def add_child(self, child: "AttackNode") -> "AttackNode":
        self.children.append(child)
        return child

    def min_attack_cost(self) -> float:
        """Compute the minimum cost to reach this node.
        OR gates: cheapest child path.
        AND gates: sum of all child paths."""
        if not self.children:
            return float("inf") if self.mitigated else (self.cost or 0)
        child_costs = [c.min_attack_cost() for c in self.children]
        if self.gate == GateType.OR:
            return min(child_costs)
        else:  # AND: attacker must succeed at all children
            if any(c == float("inf") for c in child_costs):
                return float("inf")
            return sum(child_costs)

    def viable_paths(self) -> list[list[str]]:
        """Enumerate all viable (non-mitigated) attack paths."""
        if self.mitigated:
            return []
        if not self.children:
            return [[self.name]]
        if self.gate == GateType.OR:
            paths = []
            for child in self.children:
                for path in child.viable_paths():
                    paths.append([self.name] + path)
            return paths
        else:  # AND: combine paths from all children
            from itertools import product
            child_paths = [c.viable_paths() for c in self.children]
            if any(len(p) == 0 for p in child_paths):
                return []  # AND gate: all children must be viable
            combined = []
            for combo in product(*child_paths):
                merged = [self.name]
                for path in combo:
                    merged.extend(path)
                combined.append(merged)
            return combined


# Build an attack tree for data exfiltration
root = AttackNode(
    "Exfiltrate experiment data",
    "Attacker goal: steal proprietary research results"
)

# Path 1: SQL injection
sql_path = root.add_child(AttackNode(
    "SQL injection", "Extract data via malicious SQL",
    cost=100, skill_level="intermediate"
))
sql_path.add_child(AttackNode(
    "Find unparameterized query",
    "Locate endpoint using string concatenation for SQL",
    cost=50, skill_level="intermediate"
))
sql_path.add_child(AttackNode(
    "Craft UNION SELECT payload",
    "Build payload to extract additional tables",
    cost=50, skill_level="intermediate"
))

# Path 2: Authentication bypass
auth_path = root.add_child(AttackNode(
    "Authentication bypass", "Access API without valid credentials",
    gate=GateType.OR
))
auth_path.add_child(AttackNode(
    "Steal JWT from XSS",
    "Inject script to exfiltrate auth token",
    cost=200, skill_level="intermediate"
))
auth_path.add_child(AttackNode(
    "Brute-force weak credentials",
    "Enumerate common passwords against login endpoint",
    cost=50, skill_level="novice"
))
auth_path.add_child(AttackNode(
    "Exploit JWT algorithm confusion",
    "Switch RS256 to HS256 using public key as secret",
    cost=300, skill_level="expert"
))

# Path 3: Insider threat (AND gate: needs access + exfil method)
insider_path = root.add_child(AttackNode(
    "Insider data theft", "Authorized user exfiltrates data",
    gate=GateType.AND
))
insider_path.add_child(AttackNode(
    "Obtain legitimate access",
    "Use valid researcher credentials",
    cost=0, skill_level="novice"
))
insider_path.add_child(AttackNode(
    "Bypass data-loss prevention",
    "Evade download monitoring and DLP controls",
    cost=100, skill_level="intermediate"
))

# Analysis
print(f"Minimum attack cost: ${root.min_attack_cost():.0f}")
print(f"\nViable attack paths ({len(root.viable_paths())}):")
for i, path in enumerate(root.viable_paths(), 1):
    print(f"  Path {i}: {' -> '.join(path)}")

The analysis reveals the cheapest attack path: brute-forcing weak credentials at an estimated \$50, requiring only novice skill, while the most sophisticated attack (JWT algorithm confusion) costs six times more and demands expert knowledge. This directs the first investments: strong password policies, login rate limiting, and multi-factor authentication (MFA), where a user must present two or more independent credentials (such as a password plus a one-time code) before gaining access. The attack tree makes that prioritization defensible with concrete numbers rather than intuition.

6. AI-Assisted Threat Model Generation

Building a threat model by hand is thorough but slow. For a system with dozens of components and hundreds of flows, the combinatorial explosion of STRIDE questions becomes impractical. Because manually applying six STRIDE questions to every boundary-crossing flow scales quadratically with system size, AI assistance becomes valuable precisely where manual analysis hits diminishing returns. AI can accelerate this process by generating an initial threat model from code and architecture descriptions, which a security engineer then reviews and refines.

"""
AI-assisted threat model generation using an LLM.
The model analyzes source code and produces a structured
STRIDE threat catalog.
"""
import json
from anthropic import Anthropic


def generate_threat_model(
    source_code: str,
    architecture_description: str,
    model: str = "claude-sonnet-4-20250514"
) -> dict:
    """Generate a STRIDE threat model from source code
    and architecture description.

    Returns a structured dict with elements, flows,
    trust boundaries, and threats.
    """
    client = Anthropic()

    prompt = f"""You are a security architect performing threat modeling.
Analyze the following system and produce a STRIDE threat model.

ARCHITECTURE:
{architecture_description}

SOURCE CODE:
{source_code}

Return a JSON object with this structure:
{{
  "elements": [
    {{"name": "...", "type": "process|data_store|external_entity",
      "trust_zone": "external|dmz|application|data",
      "description": "..."}}
  ],
  "flows": [
    {{"source": "...", "destination": "...",
      "data": "...", "protocol": "...",
      "authenticated": true/false, "encrypted": true/false}}
  ],
  "threats": [
    {{"category": "S|T|R|I|D|E",
      "target": "element or flow name",
      "description": "...",
      "severity": "Critical|High|Medium|Low",
      "mitigation": "...",
      "cwe_id": "CWE-NNN if applicable"}}
  ]
}}

Be specific about CWE IDs. Focus on threats relevant to
scientific data systems. Include at least one threat per
STRIDE category."""

    message = client.messages.create(
        model=model,
        max_tokens=4096,
        messages=[{"role": "user", "content": prompt}]
    )

    # Extract JSON from response
    response_text = message.content[0].text
    # Find JSON block in response
    start = response_text.find("{")
    end = response_text.rfind("}") + 1
    return json.loads(response_text[start:end])


# Example: analyze a FastAPI application
fastapi_code = '''
from fastapi import FastAPI, Depends, HTTPException
from sqlalchemy.orm import Session
import subprocess

app = FastAPI()

@app.get("/experiments/{exp_id}")
def get_experiment(exp_id: str, db: Session = Depends(get_db)):
    query = f"SELECT * FROM experiments WHERE id = '{exp_id}'"
    result = db.execute(query)  # SQL injection vulnerability
    return result.fetchone()

@app.post("/analyze")
def run_analysis(command: str):
    result = subprocess.run(
        command, shell=True, capture_output=True  # Command injection
    )
    return {"output": result.stdout.decode()}
'''

architecture = """
Web application with:
- FastAPI server (Python 3.11)
- PostgreSQL database for experiment data
- Endpoints for querying experiments and running analysis scripts
- OAuth2 authentication via ORCID
- Deployed on AWS ECS behind an ALB
"""

threat_model = generate_threat_model(fastapi_code, architecture)
print(json.dumps(threat_model, indent=2))

The LLM-generated model typically identifies the SQL injection (Common Weakness Enumeration (CWE) identifier CWE-89) in the get_experiment endpoint and the command injection (CWE-78) in run_analysis. It also tends to surface architectural threats invisible in the code alone: missing rate limiting on the Application Load Balancer (ALB) (denial of service), absent audit logging (repudiation), and potential Server-Side Request Forgery (SSRF), where an attacker tricks the server into making requests to internal services that should not be externally reachable, if analysis commands can reach internal services. A security engineer should review the generated model for false positives and add domain-specific threats (such as the reagent-dispensing scenario above) that require physical-world knowledge the LLM lacks.

7. Quantifying Risk: The DREAD Model

STRIDE tells you what threats exist; you also need to decide which ones to fix first. The DREAD model scores each threat on five dimensions, each rated 1 to 10:

Damage (how bad is the impact?), Reproducibility (how reliably can the attack be repeated?), Exploitability (how much skill does the attack require?), Affected Users (how many users are impacted?), and Discoverability (how easy is the vulnerability to find?). The composite risk score is the average:

Threats scoring above 7 are critical and demand immediate mitigation. Threats scoring 4 to 7 are high priority. Below 4, the risk may be acceptable depending on your threat tolerance. The quantitative framing makes prioritization discussions concrete: instead of arguing about whether SQL injection is "worse" than XSS, you compare their DREAD scores and allocate resources accordingly. (As of 2024, Microsoft itself has moved away from DREAD in favor of simplified bug-bar severity classifications and CVSS, the Common Vulnerability Scoring System, an industry-standard framework maintained by FIRST.org that rates vulnerability severity on a 0 to 10 scale using metrics such as attack vector, complexity, and impact; however, DREAD remains a useful teaching framework because its five dimensions make risk reasoning explicit and accessible.)

Scoring Threats with DREAD

"""
DREAD risk scoring for prioritizing threats.
"""
from dataclasses import dataclass


@dataclass
class DREADScore:
    damage: int           # 1-10: severity of successful attack
    reproducibility: int  # 1-10: ease of repeating the attack
    exploitability: int   # 1-10: ease of launching the attack
    affected_users: int   # 1-10: fraction of users impacted
    discoverability: int  # 1-10: ease of finding the vulnerability

    @property
    def score(self) -> float:
        total = (self.damage + self.reproducibility +
                 self.exploitability + self.affected_users +
                 self.discoverability)
        return total / 5.0

    @property
    def priority(self) -> str:
        s = self.score
        if s >= 7:
            return "CRITICAL"
        elif s >= 4:
            return "HIGH"
        else:
            return "MEDIUM"


# Score the threats we identified earlier
threats_with_scores = [
    ("SQL injection in /experiments/{exp_id}",
     DREADScore(9, 10, 7, 10, 8)),  # 8.8 CRITICAL
    ("Command injection in /analyze",
     DREADScore(10, 10, 6, 10, 6)),  # 8.4 CRITICAL
    ("Missing rate limiting on ALB",
     DREADScore(5, 10, 9, 10, 9)),   # 8.6 CRITICAL
    ("No audit logging (repudiation)",
     DREADScore(4, 10, 10, 5, 3)),   # 6.4 HIGH
    ("JWT algorithm confusion",
     DREADScore(9, 8, 3, 10, 4)),    # 6.8 HIGH
]

print("Threat Prioritization (DREAD)")
print("-" * 60)
# Sort by score descending
for name, dread in sorted(
    threats_with_scores, key=lambda x: x[1].score, reverse=True
):
    print(f"  [{dread.priority}] {dread.score:.1f} - {name}")

Identifying and scoring threats, whether by hand or with AI assistance, is only half the job; the real payoff comes when those findings drive concrete engineering decisions.

8. From Threat Model to Security Requirements

A threat model is useful only if it produces actionable security requirements. Each threat in the catalog should map to a concrete control: a code change, a configuration setting, an architectural constraint, or a monitoring rule. The following process shows how to perform that mapping: for each threat whose DREAD score exceeds your threshold, express the mitigation as a testable requirement, classify it by the type of test that can verify it, and determine whether that test can run automatically in a CI/CD pipeline.

"""
Converting threat model findings into testable security
requirements that integrate with the CI/CD pipeline.
"""


def threats_to_requirements(
    threats: list[tuple[str, DREADScore, str]],
    threshold: float = 4.0
) -> list[dict]:
    """Convert scored threats into testable security requirements.

    Args:
        threats: List of (name, dread_score, mitigation) tuples
        threshold: Minimum DREAD score to generate a requirement

    Returns:
        List of requirement dicts with test criteria
    """
    requirements = []
    for name, dread, mitigation in threats:
        if dread.score < threshold:
            continue
        requirements.append({
            "id": f"SEC-{len(requirements)+1:03d}",
            "threat": name,
            "dread_score": dread.score,
            "priority": dread.priority,
            "requirement": mitigation,
            "test_type": classify_test_type(mitigation),
            "automated": can_automate(mitigation),
        })
    return requirements


def classify_test_type(mitigation: str) -> str:
    """Determine appropriate test type for a mitigation."""
    keywords = mitigation.lower()
    if any(w in keywords for w in ["parameterize", "inject", "sanitize"]):
        return "SAST + unit test"
    elif any(w in keywords for w in ["rate limit", "timeout"]):
        return "integration test"
    elif any(w in keywords for w in ["encrypt", "tls"]):
        return "configuration audit"
    elif any(w in keywords for w in ["log", "audit"]):
        return "integration test"
    else:
        return "manual review"


def can_automate(mitigation: str) -> bool:
    """Check if the mitigation test can run in CI/CD."""
    manual_keywords = ["physical", "manual", "review", "training"]
    return not any(
        w in mitigation.lower() for w in manual_keywords
    )


# Generate requirements from our threat catalog
threat_data = [
    ("SQL injection", DREADScore(9, 10, 7, 10, 8),
     "Use parameterized queries for all database access"),
    ("Command injection", DREADScore(10, 10, 6, 10, 6),
     "Sanitize inputs and use subprocess with shell=False"),
    ("Missing rate limiting", DREADScore(5, 10, 9, 10, 9),
     "Add rate limiting middleware with 100 req/min per IP"),
    ("No audit logging", DREADScore(4, 10, 10, 5, 3),
     "Log all data access with user ID and timestamp"),
]

reqs = threats_to_requirements(threat_data)
for req in reqs:
    print(f"{req['id']} [{req['priority']}] {req['threat']}")
    print(f"  Requirement: {req['requirement']}")
    print(f"  Test type: {req['test_type']}")
    print(f"  Automated: {req['automated']}")

These requirements become inputs to the security review pipeline in Section 20.3, where automated scanners verify that each mitigation is correctly implemented and regression tests ensure it stays that way.
