40.3 Building a Research Agent Team

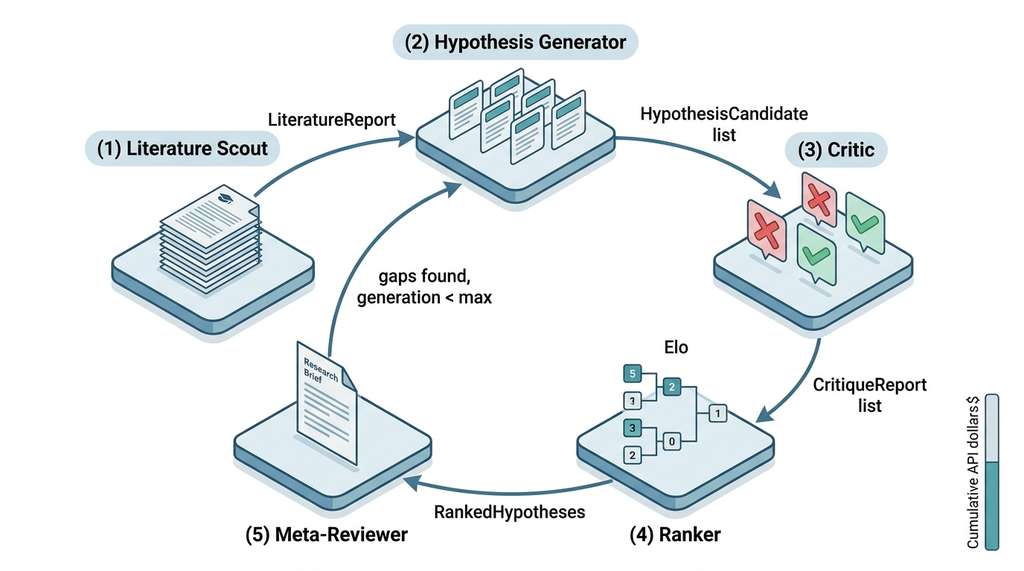

1. Architecture Overview

What would happen if you could hire five tireless postdocs, each a specialist in one phase of the research process, and have them argue over hypotheses around the clock for the price of a coffee? Our research agent team makes that scenario concrete, following the AI Co-Scientist pattern with modifications for practicality. The team has five roles:

1. Literature Scout: Retrieves and synthesizes relevant papers using PaperQA2.
2. Hypothesis Generator: Proposes candidate hypotheses grounded in the literature.
3. Critic: Debates each hypothesis, identifying weaknesses and alternative explanations.
4. Ranker: Conducts pairwise tournaments to order hypotheses by quality.
5. Meta-Reviewer: Synthesizes the ranked list into a research brief with recommendations.

Elo rating, the scoring system in the ranking stage, originated in chess. It assigns each competitor a numerical strength estimate and updates that estimate after every head-to-head match. It matters here because it converts noisy pairwise large language model (LLM) judgments ("hypothesis A is better than B") into a single ranked list with calibrated confidence. Vote-counting alone cannot achieve this when judges disagree. After every comparison, the winner gains points and the loser loses points. The size of the adjustment depends on how surprising the outcome was relative to current ratings. Use Elo-style tournaments when you have more than four candidates and need a robust ranking from an unreliable judge; for three or fewer candidates, direct rubric scoring is sufficient.

The data flow follows a directed acyclic graph (where a directed acyclic graph is a set of processing steps connected by one-way edges with no cycles, so data flows forward without looping back on itself) with one feedback edge. Figure 40.3 illustrates this five-stage pipeline with its conditional feedback loop from the Meta-Reviewer back to the Hypothesis Generator:

The feedback edge connects the meta-reviewer back to the generator: if the reviewer determines that the current hypothesis set is insufficiently diverse or that a promising direction was not explored, the generator produces a targeted second wave of hypotheses. We cap this outer loop at two iterations to control cost. In short: one agent proposes, another attacks, a tournament picks the survivors, and the loop repeats until the ideas stop getting better. Figure 40.3.1 illustrates the Generate-Debate-Rank multi-agent workflow loop.

2. Agent Definitions with OpenAI Agents SDK

Each role needs a concrete implementation. The OpenAI Agents SDK provides a lightweight framework for defining agents with system prompts, tools, and handoff rules. Each agent is a Python object whose run() method sends the agent's system prompt and tools to the LLM, executes any tool calls, and returns a typed result. The five agents and their typed interfaces follow:

"""
Research agent team using OpenAI Agents SDK.
Each agent has a focused system prompt, typed output, and tool set.
"""
from pydantic import BaseModel, Field
from agents import Agent, Runner, function_tool
from paperqa import Settings, ask


# ── Typed interfaces ──────────────────────────────────────────────

class LiteratureReport(BaseModel):
    """Output from the Literature Scout agent."""
    summary: str = Field(description="Synthesis of key findings")
    papers: list[dict] = Field(description="List of cited papers")
    gaps: list[str] = Field(description="Identified knowledge gaps")
    key_methods: list[str] = Field(description="Dominant methods in field")


class HypothesisCandidate(BaseModel):
    """A single hypothesis with supporting reasoning."""
    id: str
    statement: str = Field(description="The hypothesis statement")
    reasoning: str = Field(description="Why this hypothesis is plausible")
    testable_prediction: str = Field(description="How to test it")
    grounding: list[str] = Field(description="Papers that support it")
    novelty_claim: str = Field(description="What makes this new")


class CritiqueReport(BaseModel):
    """Output from the Critic agent for a single hypothesis."""
    hypothesis_id: str
    strengths: list[str]
    weaknesses: list[str]
    alternative_explanations: list[str]
    missing_evidence: list[str]
    revised_statement: str | None = Field(
        default=None,
        description="Improved hypothesis if revision is warranted",
    )
    verdict: str = Field(description="'promising', 'needs_work', 'weak'")


class RankedHypotheses(BaseModel):
    """Output from the tournament ranking."""
    rankings: list[dict] = Field(
        description="Hypotheses ordered by Elo rating"
    )
    total_comparisons: int
    consensus_score: float = Field(
        description="Agreement rate among pairwise judgments"
    )


class ResearchBrief(BaseModel):
    """Final output: a research brief with recommendations."""
    title: str
    executive_summary: str
    top_hypotheses: list[dict]
    recommended_experiments: list[str]
    estimated_effort: str
    gaps_for_future_work: list[str]
    bibliography: list[dict]


# ── Tool definitions ──────────────────────────────────────────────

@function_tool
async def search_literature(query: str, max_papers: int = 10) -> str:
    """Search scientific literature using PaperQA2."""
    answer = await ask(
        query,
        settings=Settings(
            llm="gpt-4o",
            summary_llm="gpt-4o-mini",
            paper_directory="./papers/",
            max_sources=max_papers,
        ),
    )
    return answer.formatted_answer


@function_tool
async def check_novelty(hypothesis: str) -> str:
    """Check whether a hypothesis is already known in the literature."""
    answer = await ask(
        f"Has this hypothesis or finding been previously reported? "
        f"Hypothesis: {hypothesis}",
        settings=Settings(
            llm="gpt-4o",
            summary_llm="gpt-4o-mini",
            paper_directory="./papers/",
        ),
    )
    return answer.formatted_answer


# ── Agent definitions ─────────────────────────────────────────────

literature_scout = Agent(
    name="Literature Scout",
    instructions=(
        "You are a scientific literature review agent. Search for papers "
        "relevant to the research question. Synthesize findings into a "
        "structured report with cited sources. Identify knowledge gaps "
        "that represent opportunities for new research.\n\n"
        "Rules:\n"
        "- Cite every claim with author, year, and title.\n"
        "- Distinguish established findings from preliminary results.\n"
        "- Identify the dominant methods and their limitations.\n"
        "- List at least 3 knowledge gaps."
    ),
    tools=[search_literature],
    output_type=LiteratureReport,
)

hypothesis_generator = Agent(
    name="Hypothesis Generator",
    instructions=(
        "You are a scientific hypothesis generation agent. Given a "
        "literature review, propose novel hypotheses that address the "
        "identified knowledge gaps. Each hypothesis must be:\n"
        "1. Specific and falsifiable.\n"
        "2. Grounded in existing evidence (cite papers).\n"
        "3. Novel (not a restatement of known findings).\n"
        "4. Testable with available methods.\n\n"
        "Generate exactly 6 hypotheses with diverse approaches. "
        "Vary your reasoning: some should extend existing work, "
        "some should challenge assumptions, and some should propose "
        "new mechanisms."
    ),
    output_type=list[HypothesisCandidate],
)

critic = Agent(
    name="Hypothesis Critic",
    instructions=(
        "You are a scientific reviewer agent. For each hypothesis, "
        "provide a thorough critique:\n"
        "- Identify logical gaps or unstated assumptions.\n"
        "- Propose alternative explanations for the same observations.\n"
        "- List specific evidence that would strengthen or weaken it.\n"
        "- Suggest revisions only if the core idea has merit.\n\n"
        "Be constructively skeptical. Your goal is to improve "
        "the hypotheses, not to reject them all."
    ),
    tools=[check_novelty],
    output_type=list[CritiqueReport],
)

meta_reviewer = Agent(
    name="Meta-Reviewer",
    instructions=(
        "You are a research strategy agent. Given ranked hypotheses "
        "with critiques, produce a research brief that:\n"
        "1. Summarizes the top 3 hypotheses and why they ranked highest.\n"
        "2. Recommends concrete experiments to test each.\n"
        "3. Estimates effort (computational vs. experimental).\n"
        "4. Identifies gaps that the current set does not cover.\n"
        "5. Provides a bibliography of key references.\n\n"
        "Write for a principal investigator who needs to decide "
        "which direction to pursue."
    ),
    output_type=ResearchBrief,
)

Notice that only four of the five roles receive explicit Agent() definitions here. The Ranker is implemented as procedural logic inside the LangGraph rank_node function (Section 3) rather than as an LLM agent with a system prompt, because its task (running the Elo tournament and updating scores) is algorithmic: the LLM serves only as a pairwise judge inside the loop, not as an autonomous decision-maker. Keeping the Ranker procedural makes the tournament deterministic up to the LLM judgments themselves.

3. The Debate Loop with LangGraph

Without structured debate, a solo generator agent converges on a narrow cluster of plausible-sounding hypotheses and never stress-tests them; teams that skip the critique stage routinely ship ideas that a single pointed question would have eliminated. The debate loop exists to catch exactly those failures before they waste laboratory time and budget.

The Agents SDK defines individual agents; LangGraph connects them into a stateful workflow with conditional edges, persistence, and streaming. The debate loop is the heart of the system: hypotheses are generated, critiqued, and then compared in a pairwise tournament (using a position-swapped judging technique explained in the "Position Bias" callout later in this section). LangGraph's StateGraph makes this loop explicit and debuggable.

"""
Research team workflow using LangGraph for the debate-and-rank loop.
"""
from typing import TypedDict, Annotated
from langgraph.graph import StateGraph, END
from langgraph.graph.message import add_messages
import random
import json


class ResearchState(TypedDict):
    """Typed state flowing through the research workflow."""
    question: str
    literature: dict | None
    hypotheses: list[dict]
    critiques: list[dict]
    rankings: list[dict]
    brief: dict | None
    generation: int
    max_generations: int
    total_cost_usd: float


# ── Node functions ────────────────────────────────────────────────

async def scout_node(state: ResearchState) -> dict:
    """Run the literature scout agent."""
    result = await Runner.run(
        literature_scout,
        input=f"Research question: {state['question']}",
    )
    return {
        "literature": result.final_output.model_dump(),
        "total_cost_usd": state["total_cost_usd"] + _estimate_cost(result),
    }


async def generate_node(state: ResearchState) -> dict:
    """Run the hypothesis generator."""
    lit = state["literature"]
    context = (
        f"Research question: {state['question']}\n\n"
        f"Literature summary: {lit['summary']}\n\n"
        f"Knowledge gaps: {lit['gaps']}\n\n"
        f"Key methods: {lit['key_methods']}"
    )

    # on generation > 0, include feedback from meta-reviewer
    if state["generation"] > 0 and state["brief"]:
        context += (
            f"\n\nPrevious round feedback: "
            f"{state['brief'].get('gaps_for_future_work', [])}"
        )

    result = await Runner.run(hypothesis_generator, input=context)
    new_hypotheses = [h.model_dump() for h in result.final_output]

    # combine with survivors from previous generation
    survivors = [
        h for h in state["hypotheses"]
        if h.get("elo_rating", 1200) > 1250
    ]
    combined = survivors + new_hypotheses

    return {
        "hypotheses": combined,
        "total_cost_usd": state["total_cost_usd"] + _estimate_cost(result),
    }


async def debate_node(state: ResearchState) -> dict:
    """Run the critic on all hypotheses."""
    hypotheses_text = "\n\n".join(
        f"Hypothesis {h['id']}: {h['statement']}\n"
        f"Reasoning: {h['reasoning']}"
        for h in state["hypotheses"]
    )
    result = await Runner.run(
        critic,
        input=(
            f"Research question: {state['question']}\n\n"
            f"Hypotheses to critique:\n{hypotheses_text}"
        ),
    )
    return {
        "critiques": [c.model_dump() for c in result.final_output],
        "total_cost_usd": state["total_cost_usd"] + _estimate_cost(result),
    }


async def rank_node(state: ResearchState) -> dict:
    """Run pairwise tournament ranking on hypotheses."""
    hypotheses = state["hypotheses"]
    critiques = {c["hypothesis_id"]: c for c in state["critiques"]}

    # initialize Elo ratings (1200 is the conventional neutral starting
    # value; all hypotheses begin on equal footing)
    elo = {h["id"]: h.get("elo_rating", 1200.0) for h in hypotheses}
    comparisons = 0

    # 3 rounds of random pairwise comparisons
    for _ in range(3):
        indices = list(range(len(hypotheses)))
        random.shuffle(indices)
        for i in range(0, len(indices) - 1, 2):
            h_a = hypotheses[indices[i]]
            h_b = hypotheses[indices[i + 1]]

            # LLM-as-judge comparison
            winner = await _judge_pair(
                h_a, h_b,
                critiques.get(h_a["id"]),
                critiques.get(h_b["id"]),
            )

            # update Elo
            k = 32.0
            e_a = 1.0 / (1.0 + 10 ** ((elo[h_b["id"]] - elo[h_a["id"]]) / 400))
            if winner == "A":
                elo[h_a["id"]] += k * (1.0 - e_a)
                elo[h_b["id"]] -= k * (1.0 - e_a)
            else:
                elo[h_a["id"]] -= k * e_a
                elo[h_b["id"]] += k * e_a
            comparisons += 1

    # build ranked list
    for h in hypotheses:
        h["elo_rating"] = elo[h["id"]]
    hypotheses.sort(key=lambda h: h["elo_rating"], reverse=True)

    return {
        "hypotheses": hypotheses,
        "rankings": [
            {"id": h["id"], "elo": h["elo_rating"], "statement": h["statement"]}
            for h in hypotheses
        ],
    }


async def review_node(state: ResearchState) -> dict:
    """Run the meta-reviewer to produce the final brief."""
    top_3 = state["rankings"][:3]
    critiques_for_top = [
        c for c in state["critiques"]
        if c["hypothesis_id"] in {h["id"] for h in top_3}
    ]

    result = await Runner.run(
        meta_reviewer,
        input=(
            f"Research question: {state['question']}\n\n"
            f"Top ranked hypotheses: {json.dumps(top_3, indent=2)}\n\n"
            f"Critiques: {json.dumps(critiques_for_top, indent=2)}\n\n"
            f"Full literature report: {json.dumps(state['literature'])}"
        ),
    )
    return {
        "brief": result.final_output.model_dump(),
        "generation": state["generation"] + 1,
        "total_cost_usd": state["total_cost_usd"] + _estimate_cost(result),
    }


async def _judge_pair(h_a, h_b, crit_a, crit_b) -> str:
    """Pairwise hypothesis comparison with position-bias mitigation."""
    from openai import AsyncOpenAI

    client = AsyncOpenAI()

    # forward comparison: A then B
    resp_forward = await client.chat.completions.create(
        model="gpt-4o-mini",
        messages=[{
            "role": "system",
            "content": (
                "Compare two scientific hypotheses. Consider novelty, "
                "feasibility, testability, and critique severity. "
                'Return JSON: {"winner": "A" or "B"}'
            ),
        }, {
            "role": "user",
            "content": (
                f"Hypothesis A: {h_a['statement']}\n"
                f"Critique A: {crit_a['weaknesses'] if crit_a else 'N/A'}\n\n"
                f"Hypothesis B: {h_b['statement']}\n"
                f"Critique B: {crit_b['weaknesses'] if crit_b else 'N/A'}"
            ),
        }],
        response_format={"type": "json_object"},
    )
    forward = json.loads(resp_forward.choices[0].message.content)["winner"]

    # reverse comparison: B then A (position-bias mitigation)
    resp_reverse = await client.chat.completions.create(
        model="gpt-4o-mini",
        messages=[{
            "role": "system",
            "content": (
                "Compare two scientific hypotheses. Consider novelty, "
                "feasibility, testability, and critique severity. "
                'Return JSON: {"winner": "A" or "B"}'
            ),
        }, {
            "role": "user",
            "content": (
                f"Hypothesis A: {h_b['statement']}\n"
                f"Critique A: {crit_b['weaknesses'] if crit_b else 'N/A'}\n\n"
                f"Hypothesis B: {h_a['statement']}\n"
                f"Critique B: {crit_a['weaknesses'] if crit_a else 'N/A'}"
            ),
        }],
        response_format={"type": "json_object"},
    )
    reverse = json.loads(resp_reverse.choices[0].message.content)["winner"]

    # reconcile: reverse maps B->A for original, A->B for original
    reverse_mapped = "A" if reverse == "B" else "B"

    if forward == reverse_mapped:
        return forward  # consistent judgment
    else:
        return "A"  # draw defaults to first (arbitrary but stable)


def _estimate_cost(result) -> float:
    """Estimate API cost from a Runner result."""
    # rough estimate: $0.01 per 1K tokens for GPT-4o-mini
    tokens = getattr(result, "total_tokens", 2000)
    return tokens * 0.01 / 1000


# ── Workflow graph ────────────────────────────────────────────────

def should_continue(state: ResearchState) -> str:
    """Decide whether to run another generation or finish."""
    if state["generation"] >= state["max_generations"]:
        return "end"
    if state.get("brief") and not state["brief"].get("gaps_for_future_work"):
        return "end"  # no gaps identified; done
    return "continue"


def build_research_pipeline() -> StateGraph:
    """Build the complete research agent team as a LangGraph workflow."""
    graph = StateGraph(ResearchState)

    # add nodes
    graph.add_node("scout", scout_node)
    graph.add_node("generate", generate_node)
    graph.add_node("debate", debate_node)
    graph.add_node("rank", rank_node)
    graph.add_node("review", review_node)

    # linear flow: scout -> generate -> debate -> rank -> review
    graph.set_entry_point("scout")
    graph.add_edge("scout", "generate")
    graph.add_edge("generate", "debate")
    graph.add_edge("debate", "rank")
    graph.add_edge("rank", "review")

    # conditional: loop back or finish
    graph.add_conditional_edges(
        "review",
        should_continue,
        {"continue": "generate", "end": END},
    )

    return graph.compile()

import asyncio

async def main():
    pipeline = build_research_pipeline()

    initial_state: ResearchState = {
        "question": (
            "What novel computational approaches could improve "
            "prediction of solid electrolyte stability in "
            "all-solid-state lithium batteries?"
        ),
        "literature": None,
        "hypotheses": [],
        "critiques": [],
        "rankings": [],
        "brief": None,
        "generation": 0,
        "max_generations": 2,
        "total_cost_usd": 0.0,
    }

    result = await pipeline.ainvoke(initial_state)

    print(f"Total cost: ${result['total_cost_usd']:.2f}")
    print(f"Generations completed: {result['generation']}")
    print(f"\nTop hypothesis: {result['rankings'][0]['statement']}")
    print(f"\nResearch brief:\n{result['brief']['executive_summary']}")

asyncio.run(main())

4. Structured Pipelines with DSPy

The LangGraph workflow coordinates agents whose behavior depends entirely on the quality of their system prompts, and tuning those prompts by hand is both tedious and fragile. The agents defined above use hand-written system prompts. DSPy offers an alternative: define agent modules declaratively and let the framework perform prompt optimization through compilation. This is particularly valuable for the research team because the quality of outputs depends heavily on prompt wording, and DSPy can automatically find better prompts through few-shot optimization.

"""
Research agent modules using DSPy for automatic prompt optimization.
"""
import dspy


class HypothesisSignature(dspy.Signature):
    """Generate a scientific hypothesis from a literature review."""
    literature_summary: str = dspy.InputField(
        desc="Summary of relevant literature with citations"
    )
    knowledge_gaps: list[str] = dspy.InputField(
        desc="Identified gaps in current research"
    )
    hypothesis: str = dspy.OutputField(
        desc="A specific, falsifiable hypothesis"
    )
    reasoning: str = dspy.OutputField(
        desc="Why this hypothesis is plausible given the evidence"
    )
    testable_prediction: str = dspy.OutputField(
        desc="A concrete prediction that would confirm or refute this"
    )


class CritiqueSignature(dspy.Signature):
    """Critique a scientific hypothesis for logical and evidential gaps."""
    hypothesis: str = dspy.InputField(desc="The hypothesis to critique")
    reasoning: str = dspy.InputField(desc="The supporting reasoning")
    weaknesses: list[str] = dspy.OutputField(
        desc="Logical gaps, unstated assumptions, or missing evidence"
    )
    alternative_explanations: list[str] = dspy.OutputField(
        desc="Other explanations for the same observations"
    )
    verdict: str = dspy.OutputField(
        desc="'promising', 'needs_work', or 'weak'"
    )


class ResearchTeamDSPy(dspy.Module):
    """Multi-agent research team implemented as a DSPy module.

    Uses ChainOfThought for generation and critique, enabling
    DSPy to optimize prompts through compilation.
    """

    def __init__(self, num_hypotheses: int = 6):
        super().__init__()
        self.num_hypotheses = num_hypotheses
        self.generator = dspy.ChainOfThought(HypothesisSignature)
        self.critic = dspy.ChainOfThought(CritiqueSignature)

    def forward(
        self, literature_summary: str, knowledge_gaps: list[str]
    ) -> dspy.Prediction:
        # generate multiple hypotheses
        hypotheses = []
        for i in range(self.num_hypotheses):
            h = self.generator(
                literature_summary=literature_summary,
                knowledge_gaps=knowledge_gaps,
            )
            hypotheses.append({
                "hypothesis": h.hypothesis,
                "reasoning": h.reasoning,
                "prediction": h.testable_prediction,
            })

        # critique each hypothesis
        critiques = []
        for h in hypotheses:
            c = self.critic(
                hypothesis=h["hypothesis"],
                reasoning=h["reasoning"],
            )
            critiques.append({
                "hypothesis": h["hypothesis"],
                "weaknesses": c.weaknesses,
                "alternatives": c.alternative_explanations,
                "verdict": c.verdict,
            })

        # filter to promising hypotheses
        promising = [
            {"hypothesis": c["hypothesis"], "critique": c}
            for c in critiques
            if c["verdict"] in ("promising", "needs_work")
        ]

        return dspy.Prediction(
            hypotheses=hypotheses,
            critiques=critiques,
            promising=promising,
        )


def compile_research_team():
    """Compile the research team with DSPy optimization.

    Uses a small set of examples to optimize prompts for
    hypothesis quality and critique thoroughness.
    """
    # configure DSPy with an LLM
    lm = dspy.LM("openai/gpt-4o-mini")
    dspy.configure(lm=lm)

    # create training examples (domain expert provides these)
    trainset = [
        dspy.Example(
            literature_summary=(
                "Graph neural networks have shown promise for molecular "
                "property prediction. Most approaches use message-passing "
                "on 2D molecular graphs. Recent work on 3D-aware models "
                "improves binding affinity prediction."
            ),
            knowledge_gaps=[
                "No GNN models for solid-state interface stability",
                "Limited transfer learning across battery chemistries",
            ],
        ).with_inputs("literature_summary", "knowledge_gaps"),
    ]

    # compile: DSPy finds better prompts through bootstrapping
    team = ResearchTeamDSPy(num_hypotheses=4)
    # BootstrapFewShot generates candidate prompts by running the
    # module on training examples and keeping the traces that satisfy
    # the metric, then injects those traces as few-shot demonstrations.
    optimizer = dspy.BootstrapFewShot(
        metric=lambda example, pred, trace=None: (
            len(pred.promising) >= 1  # at least one promising hypothesis
            and all(
                len(c["weaknesses"]) >= 2  # thorough critiques
                for c in pred.critiques
            )
        ),
        max_bootstrapped_demos=3,
    )
    compiled_team = optimizer.compile(team, trainset=trainset)
    return compiled_team

5. Experiment Tracking with MLflow

A research agent team run involves dozens of LLM calls, multiple intermediate outputs, and non-trivial cost. Without experiment tracking, you cannot compare different configurations (What happens with 4 hypotheses vs. 8? With GPT-4o vs. GPT-4o-mini for the critic?), diagnose failures, or demonstrate reproducibility. MLflow provides the experiment tracking infrastructure:

"""
MLflow integration for tracking research agent team runs.
"""
import mlflow
from datetime import datetime
import json


class TrackedResearchPipeline:
    """Wraps the research pipeline with MLflow experiment tracking."""

    def __init__(self, pipeline, experiment_name: str = "research_agents"):
        self.pipeline = pipeline
        mlflow.set_experiment(experiment_name)

    async def run(
        self,
        question: str,
        max_generations: int = 2,
        config: dict | None = None,
    ) -> dict:
        """Run the pipeline with full MLflow tracking."""
        config = config or {}

        with mlflow.start_run(run_name=f"research_{datetime.now():%Y%m%d_%H%M}"):
            # log configuration
            mlflow.log_params({
                "question": question[:250],  # MLflow param length limit
                "max_generations": max_generations,
                "generator_model": config.get("generator_model", "gpt-4o"),
                "critic_model": config.get("critic_model", "gpt-4o-mini"),
                "judge_model": config.get("judge_model", "gpt-4o-mini"),
                "num_hypotheses": config.get("num_hypotheses", 6),
                "tournament_rounds": config.get("tournament_rounds", 3),
                "position_bias_mitigation": True,
            })

            # run the pipeline
            initial_state: ResearchState = {
                "question": question,
                "literature": None,
                "hypotheses": [],
                "critiques": [],
                "rankings": [],
                "brief": None,
                "generation": 0,
                "max_generations": max_generations,
                "total_cost_usd": 0.0,
            }

            result = await self.pipeline.ainvoke(initial_state)

            # log metrics
            mlflow.log_metrics({
                "total_cost_usd": result["total_cost_usd"],
                "num_hypotheses_generated": len(result["hypotheses"]),
                "num_promising": sum(
                    1 for c in result["critiques"]
                    if c["verdict"] == "promising"
                ),
                "generations_completed": result["generation"],
                "top_elo_rating": (
                    result["rankings"][0]["elo"]
                    if result["rankings"] else 0
                ),
            })

            # log artifacts
            mlflow.log_dict(result["literature"], "literature_report.json")
            mlflow.log_dict(
                {"rankings": result["rankings"]}, "rankings.json"
            )
            if result["brief"]:
                mlflow.log_dict(result["brief"], "research_brief.json")
                mlflow.log_text(
                    result["brief"]["executive_summary"],
                    "executive_summary.txt",
                )

            # log the full state for reproducibility
            # (exclude embeddings and large objects)
            serializable = {
                k: v for k, v in result.items()
                if k not in ("literature",)
            }
            mlflow.log_dict(serializable, "full_state.json")

        return result


# usage:
# tracked = TrackedResearchPipeline(build_research_pipeline())
# result = await tracked.run(
#     "What computational approaches improve battery electrolyte prediction?",
#     config={"generator_model": "gpt-4o", "num_hypotheses": 8},
# )

With MLflow tracking, you can answer practical questions that would otherwise require guesswork: "Does using GPT-4o for the critic instead of GPT-4o-mini produce better rankings?" (Compare top_elo_rating across runs.) "Is the second generation worth the cost?" (Compare total_cost_usd against the Elo improvement from generation 1 to generation 2.) "How many hypotheses should we generate?" (Run a sweep over num_hypotheses and plot promising-hypothesis count against cost.)

6. Cost Control and Evaluation

A research agent team run is expensive. Each generation involves literature search (~\$0.50), hypothesis generation (6 x ~\$0.05 = ~\$0.30), critique (6 x ~\$0.10 = ~\$0.60), tournament ranking (15 pairs x 2 directions x ~\$0.02 = ~\$0.60), and meta-review (~\$0.20). A two-generation run costs approximately \$4 to \$6. That is roughly 12 minutes and five dollars for a task that would occupy a postdoc for a full working day. This is far cheaper than a human researcher's time for the same task, but it adds up quickly during development and tuning.

Three strategies control cost without sacrificing quality:

Model tiering. Use the most capable model (GPT-4o, Claude Sonnet) only for tasks where quality matters most: hypothesis generation and the meta-review. Use a cheaper model (GPT-4o-mini, Claude Haiku) for tasks where consistency matters more than creativity: the critic and the tournament judge. In the battery-electrolyte example above, this reduced cost by roughly 60 to 70 percent with only modest quality loss on the final rankings.

Early termination. If the first generation produces three hypotheses rated "promising" by the critic and the meta-reviewer identifies no significant gaps, skip the second generation. The should_continue function in the LangGraph workflow implements this check.

Caching. Literature search results and paper extractions are largely deterministic for the same inputs (novelty checks may vary slightly if the underlying LLM is non-deterministic, but caching still avoids redundant retrieval). Cache them across runs so that repeated experiments on the same topic do not re-query PaperQA2. LangGraph's built-in checkpointing provides workflow-level caching; for tool-level caching, wrap each tool with a simple hash-based cache:

import hashlib
import json
from pathlib import Path


class ToolCache:
    """File-based cache for deterministic tool calls."""

    def __init__(self, cache_dir: str = ".cache/tools"):
        self.cache_dir = Path(cache_dir)
        self.cache_dir.mkdir(parents=True, exist_ok=True)
        self.hits = 0
        self.misses = 0

    def _key(self, tool_name: str, **kwargs) -> str:
        """Compute a cache key from the tool name and arguments."""
        content = json.dumps(
            {"tool": tool_name, **kwargs}, sort_keys=True
        )
        return hashlib.sha256(content.encode()).hexdigest()

    def get(self, tool_name: str, **kwargs) -> str | None:
        """Retrieve a cached result, or None if not cached."""
        key = self._key(tool_name, **kwargs)
        path = self.cache_dir / f"{key}.json"
        if path.exists():
            self.hits += 1
            return json.loads(path.read_text())
        self.misses += 1
        return None

    def set(self, tool_name: str, result: str, **kwargs):
        """Cache a tool result."""
        key = self._key(tool_name, **kwargs)
        path = self.cache_dir / f"{key}.json"
        path.write_text(json.dumps(result))

    @property
    def hit_rate(self) -> float:
        total = self.hits + self.misses
        return self.hits / total if total > 0 else 0.0

For evaluation, research agent teams present a unique challenge: there is no ground truth to compare against. You cannot automatically determine whether a generated hypothesis is truly novel or scientifically valuable. Three proxy metrics help:

• Consistency: Run the same question three times. Do the top-ranked hypotheses overlap? High consistency suggests the system reliably identifies strong directions. Low consistency may indicate that the tournament ranking is unstable (too few rounds) or that the generation is too stochastic (temperature too high).
• Expert alignment: Have a domain expert rate the top 3 hypotheses from each run on a 1-to-5 scale for novelty, feasibility, and impact. Compare against hypotheses generated by the expert independently. This is expensive but is the gold standard for evaluating research agent output.
• Literature grounding: Check whether each hypothesis's cited references actually exist and actually support the claimed reasoning. The novelty checker tool from Section 2 automates part of this, but manual spot-checks are essential for high-stakes applications.

7. Integration with the Discovery Workbench

The research agent team from this section plugs into the Discovery Workbench (see Chapter 6) as a hypothesis generation service. The Workbench dispatches a research question, the team returns a ResearchBrief, and the Workbench stores the brief alongside the knowledge graph, experiment registry, and provenance chain:

"""
Discovery Workbench integration for the research agent team.
"""
from dataclasses import dataclass


@dataclass
class WorkbenchResearchRequest:
    """A research question from the Discovery Workbench."""
    question: str
    domain: str
    budget_usd: float = 10.0
    max_generations: int = 2
    priority: str = "normal"  # "normal", "urgent", "background"


async def workbench_research_handler(
    request: WorkbenchResearchRequest,
) -> ResearchBrief:
    """Handle a research request from the Discovery Workbench.

    This function is registered as a Workbench service endpoint.
    """
    # configure based on budget
    if request.budget_usd < 2.0:
        config = {
            "generator_model": "gpt-4o-mini",
            "critic_model": "gpt-4o-mini",
            "num_hypotheses": 4,
        }
        max_gen = 1
    else:
        config = {
            "generator_model": "gpt-4o",
            "critic_model": "gpt-4o-mini",
            "num_hypotheses": 6,
        }
        max_gen = request.max_generations

    pipeline = build_research_pipeline()
    tracked = TrackedResearchPipeline(pipeline)
    result = await tracked.run(
        question=request.question,
        max_generations=max_gen,
        config=config,
    )

    return ResearchBrief(**result["brief"])

The Workbench stores these briefs alongside the knowledge graph from Chapter 38 and the hypothesis outputs from Chapter 39, building a growing record of explored directions, top-ranked hypotheses, and eventual validation outcomes. This record feeds back into the literature agent's semantic memory, so the system sharpens with each run.

Exercises

1. Conceptual: The pipeline uses the same LLM family for generation and critique. This creates a risk of shared blind spots: if GPT-4o has a systematic bias in chemistry reasoning, both the generator and critic will share it. Propose an architecture modification that mitigates this risk. Consider using models from different providers, human reviewers at specific checkpoints, or external knowledge bases as cross-checks.
2. Coding: Implement the full pipeline from this section and run it on three research questions from different domains: one in biology, one in materials science, and one in computational social science. Compare the results along three dimensions: hypothesis novelty (judged by you), critique thoroughness (number and quality of weaknesses identified), and cost (from MLflow tracking). Which domain produces the best results, and why?
3. Coding: Add a human gate between the rank and review nodes. When the pipeline reaches the ranking step, it should pause execution, display the ranked hypotheses to a human expert (via a simple command-line interface), and allow the expert to (a) approve the rankings, (b) re-order them, or (c) add a new hypothesis. Use LangGraph's interrupt_before mechanism to implement the pause. How does human intervention affect the quality of the final research brief?
4. Analysis: Run the pipeline 5 times on the same research question and measure consistency: what fraction of the time does the same hypothesis appear in the top 3? Vary the number of tournament rounds (1, 3, 5, 10) and plot consistency against cost. What is the minimum number of rounds needed for stable rankings?
