17.1 Agent Roles and Workflows

1. Why Multiple Agents?

When five AI agents are each told "you are a senior developer," they all volunteer to be the architect, and nobody writes the tests. That failure reveals something fundamental: a single, do-everything agent struggles with real software engineering. The fix looks surprisingly like the team structures humans have refined over decades. Three observations from software engineering practice and large language model (LLM) behavior make the case concrete:

Separation of concerns. A system prompt that says "you are a senior developer who writes clean Python" produces better code than one that says "you are a developer, tester, reviewer, and project manager." Just as human teams benefit from specialization, LLM agents produce higher-quality outputs when their instructions are focused. Each agent can carry a smaller context window, reducing the chance of the model losing track of earlier instructions.

Adversarial improvement. A developer agent will naturally produce code that "looks right" to itself. A separate reviewer agent, primed with a different perspective (security, performance, correctness), catches errors the developer misses. This is the multi-agent analogue of code review, and empirical results from Du et al. (2023) show that multi-agent debate improves factual accuracy by roughly 10% to 20% on reasoning benchmarks compared to single-agent generation.

Workflow control. Sequential, parallel, and conditional execution patterns are easier to express, monitor, and debug when each step is an explicit agent node rather than an implicit phase inside a single agent's chain-of-thought. If the architect's design fails review, you can re-route back to the architect node without restarting the entire pipeline. In short: split the mind into roles, wire the roles into a graph, and let the graph enforce the discipline that a single prompt never could.

2. The Five Canonical Roles

Inspired by ChatDev (Qian et al., 2023) and MetaGPT (Hong et al., 2024), we define five canonical agent roles that mirror real software team positions. Each role is characterized by its system prompt focus, tool set, input schema, and output schema.

2.1 Product Manager (PM)

The PM agent translates a raw issue or feature request into a structured requirements document. It reads the issue text, examines existing code for context, and produces acceptance criteria, user stories, and priority rankings. The PM does not write code; its output is a specification that downstream agents consume.

from dataclasses import dataclass, field

@dataclass
class AgentRole:
    """Defines an agent's identity, capabilities, and interface."""
    name: str
    system_prompt: str
    tools: list[str]           # names of available MCP tools
    input_schema: type         # Pydantic model for expected input
    output_schema: type        # Pydantic model for structured output
    max_tokens: int = 4096
    temperature: float = 0.2   # low temp for deterministic roles

@dataclass
class Requirement:
    """A single requirement extracted by the PM agent."""
    id: str
    description: str
    acceptance_criteria: list[str]
    priority: str              # "must", "should", "could"
    affected_files: list[str] = field(default_factory=list)

@dataclass
class PMOutput:
    """Structured output from the PM agent."""
    summary: str
    requirements: list[Requirement]
    scope_notes: str
    estimated_complexity: str  # "small", "medium", "large"

pm_role = AgentRole(
    name="product_manager",
    system_prompt="""You are a senior product manager. Given a GitHub issue,
analyze it and produce a structured requirements document. Identify:
1. What the user actually needs (not just what they asked for)
2. Acceptance criteria that are testable and specific
3. Which files in the codebase are likely affected
4. The complexity of the change (small/medium/large)

Be precise. Every acceptance criterion must be verifiable by a test.""",
    tools=["read_file", "search_codebase", "list_directory"],
    input_schema=dict,     # raw issue payload
    output_schema=PMOutput,
    temperature=0.3,
)

2.2 Architect

The architect agent takes the PM's requirements and produces a technical design: which components to modify, what interfaces to create, how data flows between modules. It has access to the full repository structure and can read (but not write) any file. The architect's output is a design document with file-level change descriptions that the developer agent follows.

@dataclass
class DesignDecision:
    """A single architectural decision."""
    component: str
    change_type: str       # "create", "modify", "delete"
    description: str
    rationale: str
    dependencies: list[str]

@dataclass
class ArchitectOutput:
    """Structured output from the architect agent."""
    design_summary: str
    decisions: list[DesignDecision]
    api_contracts: list[dict]    # OpenAPI-style interface specs (machine-readable API descriptions)
    risk_assessment: str

architect_role = AgentRole(
    name="architect",
    system_prompt="""You are a senior software architect. Given requirements,
produce a technical design that:
1. Minimizes changes to existing code (prefer extension over modification)
2. Defines clear API contracts between components
3. Identifies risks and proposes mitigations
4. Follows the existing patterns in the codebase

Never write implementation code. Your output is a design document.""",
    tools=["read_file", "search_codebase", "list_directory", "read_tests"],
    input_schema=PMOutput,
    output_schema=ArchitectOutput,
    temperature=0.2,
)

2.3 Developer

The developer agent writes code. It receives the architect's design and the PM's requirements, then produces file-level patches. Unlike the architect, the developer has write access to the codebase (through tools like write_file and apply_patch). Its temperature is set low (0.1) for deterministic, specification- conforming code generation.

@dataclass
class FileChange:
    """A single file-level change produced by the developer agent."""
    file_path: str
    change_type: str       # "create", "modify", "delete"
    content: str           # full file content or unified diff
    language: str           # "python", "yaml", etc.

@dataclass
class DeveloperOutput:
    """Structured output from the developer agent."""
    changes: list[FileChange]
    implementation_notes: str
    requirements_addressed: list[str]  # IDs from PMOutput.requirements

developer_role = AgentRole(
    name="developer",
    system_prompt="""You are a senior Python developer. Given a design document
and requirements, implement the changes as file-level patches. Follow the
architect's plan exactly:
1. Create or modify only the files specified in the design
2. Write clean, well-documented code that passes linting
3. Include inline comments for non-obvious logic
4. List which requirement IDs your changes address

Never deviate from the architect's design. If the design is ambiguous,
note the ambiguity in implementation_notes rather than guessing.""",
    tools=["read_file", "write_file", "apply_patch", "run_linter"],
    input_schema=ArchitectOutput,
    output_schema=DeveloperOutput,
    temperature=0.1,
)

2.4 Tester

The tester agent generates tests for the developer's code. It reads the acceptance criteria from the PM, the API contracts from the architect, and the implementation from the developer. It produces test files and runs them, reporting pass/fail status with diagnostic information. Chapter 18 covers this role in depth.

2.5 Reviewer

The reviewer agent performs code review. It reads the diff produced by the developer, checks it against the architect's design and the PM's requirements, and produces review comments with severity levels (blocker, warning, suggestion). The reviewer is the adversarial complement to the developer: its system prompt explicitly instructs it to find bugs, security issues, and style violations.

@dataclass
class ReviewComment:
    """A single code review comment."""
    file: str
    line: int
    severity: str          # "blocker", "warning", "suggestion"
    category: str          # "bug", "security", "style", "performance"
    message: str
    suggested_fix: str | None = None

@dataclass
class ReviewerOutput:
    """Structured output from the reviewer agent."""
    approved: bool
    comments: list[ReviewComment]
    summary: str
    blockers_count: int

reviewer_role = AgentRole(
    name="reviewer",
    system_prompt="""You are a senior code reviewer. Review the diff against
the design document and requirements. Look for:
1. Correctness bugs: off-by-one errors, null checks, edge cases
2. Security issues: injection, path traversal, secrets in code
3. Design violations: deviations from the architect's plan
4. Test coverage gaps: untested branches and error paths

Mark issues as blocker (must fix), warning (should fix), or suggestion.
Set approved=true ONLY if there are zero blockers.""",
    tools=["read_file", "read_diff", "search_codebase", "run_tests"],
    input_schema=dict,     # diff + design + requirements
    output_schema=ReviewerOutput,
    temperature=0.1,       # very low: deterministic review
)

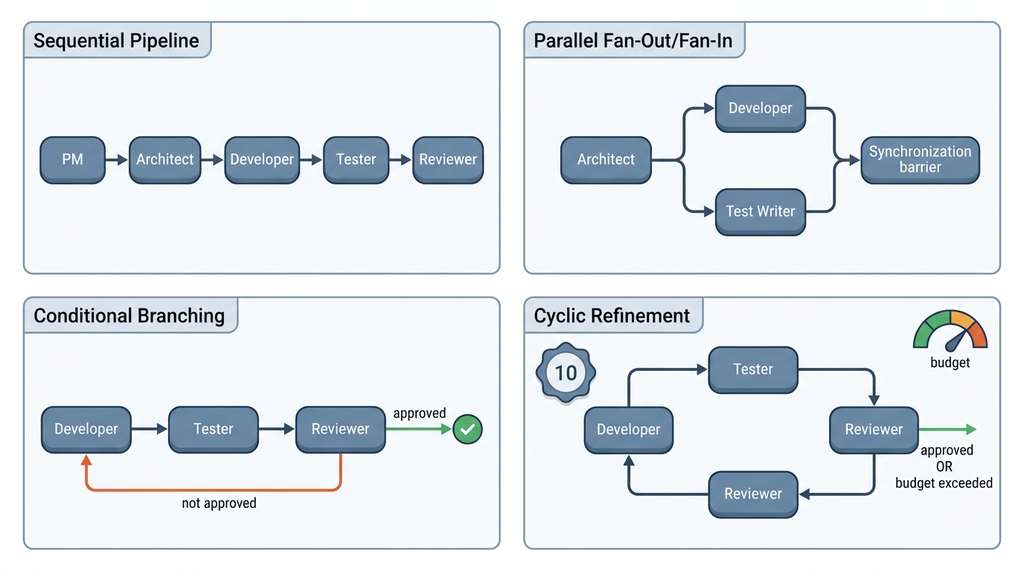

3. Workflow Graphs

When a multi-agent pipeline has no explicit coordination structure, agents duplicate work, contradict each other's outputs, and silently drop requirements between handoffs. The workflow graph is the mechanism that prevents this.

A workflow graph \(G = (V, E, \sigma)\) defines how agents collaborate. The vertices \(V\) are agent nodes, the edges \(E\) are message channels between agents, and \(\sigma: V \to \text{AgentRole}\) maps each node to its role configuration. The graph is directed: an edge \((u, v)\) means agent \(u\) can send its output to agent \(v\). Four canonical topologies cover the most common patterns. Figure 17.1 illustrates the most common topology: a sequential pipeline with a conditional review loop that routes rejected code back to the developer. Figure 17.1.1 illustrates multi-agent workflow topologies.

A workflow graph is a directed graph whose nodes are agent invocations and whose edges carry structured data: one agent's output becomes the next agent's input. Without an explicit graph, multi-agent coordination devolves into ad hoc message passing with no guarantees about ordering, completeness, or termination. An executor walks the graph node by node, runs each agent, and evaluates condition functions on outgoing edges to pick the next node. State accumulates and flows forward along the edges. Use a workflow graph (rather than a single monolithic agent or unstructured agent chat) whenever the task decomposes into three or more distinct steps with typed handoffs between them; for simpler two-step pipelines, a direct function call is sufficient.

3.1 Sequential Pipeline

The simplest topology is a linear chain: PM \(\to\) Architect \(\to\) Developer \(\to\) Tester \(\to\) Reviewer. Each agent runs once, passing its output to the next. This is easy to implement and debug, but rigid: if the reviewer finds a blocker, the pipeline must restart from the developer (or earlier).

from typing import Callable, Any

class WorkflowGraph:
    """A directed graph of agent nodes with typed edges."""

    def __init__(self):
        self.nodes: dict[str, AgentRole] = {}
        self.edges: dict[str, tuple[str, Callable | None]] = {}
        # edge mapping: source -> (target, optional_condition)

    def add_node(self, name: str, role: AgentRole):
        self.nodes[name] = role

    def add_edge(self, source: str, target: str,
                 condition: Callable[[Any], bool] | None = None):
        """Add a directed edge. If condition is provided, the edge
        is only traversed when condition(source_output) returns True."""
        self.edges[source] = (target, condition)

    def get_next(self, current: str, output: Any) -> str | None:
        """Given the current node and its output, return the next node."""
        if current not in self.edges:
            return None  # terminal node
        target, condition = self.edges[current]
        if condition is None or condition(output):
            return target
        return None


def build_sequential_pipeline() -> WorkflowGraph:
    """Build a simple PM -> Architect -> Developer -> Tester -> Reviewer pipeline."""
    graph = WorkflowGraph()
    graph.add_node("pm", pm_role)
    graph.add_node("architect", architect_role)
    graph.add_node("developer", developer_role)
    graph.add_node("tester", tester_role)
    graph.add_node("reviewer", reviewer_role)

    graph.add_edge("pm", "architect")
    graph.add_edge("architect", "developer")
    graph.add_edge("developer", "tester")
    graph.add_edge("tester", "reviewer")
    # reviewer is terminal
    return graph

3.2 Parallel Fan-Out / Fan-In

Some tasks benefit from running agents in parallel. After the architect produces a design, the developer and tester can work simultaneously: one writes the implementation while the other writes test stubs from the API contracts. A fan-out node spawns these concurrent executions; a fan-in node collects their results. This pattern cuts wall-clock time but requires conflict detection, since both agents may target the same file.

import asyncio

async def parallel_fan_out(
    agents: list[tuple[AgentRole, Any]],  # (role, input) pairs
    run_agent: Callable,                   # async function to execute one agent
) -> list[Any]:
    """Run multiple agents in parallel and collect results."""
    tasks = [
        asyncio.create_task(run_agent(role, inp))
        for role, inp in agents
    ]
    results = await asyncio.gather(*tasks, return_exceptions=True)

    # check for failures
    failures = [r for r in results if isinstance(r, Exception)]
    if failures:
        raise AgentExecutionError(
            f"{len(failures)}/{len(results)} agents failed",
            failures=failures,
        )
    return results


async def fan_in_merge(results: list[Any], merge_strategy: str = "concat") -> Any:
    """Merge parallel agent outputs into a single state object."""
    if merge_strategy == "concat":
        # simple concatenation for independent outputs
        return {"parallel_outputs": results}
    elif merge_strategy == "conflict_check":
        # detect and resolve file-level conflicts
        all_files = {}
        for result in results:
            for file_path, content in result.get("files", {}).items():
                if file_path in all_files:
                    raise ConflictError(
                        f"Both agents modified {file_path}"
                    )
                all_files[file_path] = content
        return {"files": all_files}
    else:
        raise ValueError(f"Unknown merge strategy: {merge_strategy}")

3.3 Conditional Branching

Parallel fan-out works well when agents operate on independent subtasks, but many real workflows require decisions: should the pipeline proceed, loop back, or halt? That question calls for conditional edges.

Conditional edges route the workflow based on agent output. The most common pattern is the review gate: if the reviewer approves, proceed to merge; if not, route back to the developer with the review comments. This requires a condition function on the edge that inspects the reviewer's output.

def build_review_loop() -> WorkflowGraph:
    """Build a workflow with a conditional review loop."""
    graph = WorkflowGraph()
    graph.add_node("developer", developer_role)
    graph.add_node("tester", tester_role)
    graph.add_node("reviewer", reviewer_role)

    graph.add_edge("developer", "tester")
    graph.add_edge("tester", "reviewer")

    # conditional: reviewer routes back to developer if not approved
    graph.add_edge(
        "reviewer", "developer",
        condition=lambda output: not output.approved
    )
    # if approved, reviewer is terminal (no edge taken)
    return graph

3.4 Cyclic Refinement

Cyclic workflows generalize conditional branching to arbitrary loops. A refinement cycle lets multiple agents iterate until convergence: the developer writes code, the tester runs tests, the reviewer provides feedback, and the developer revises. The cycle terminates when the reviewer approves or a maximum iteration count is reached. Without the iteration cap, cyclic workflows can loop indefinitely, consuming tokens and time.

Formally, a cyclic workflow is a directed graph with at least one back edge (where a back edge is an edge that points from a node to one of its predecessors, creating a cycle). The termination condition \(\tau: S \to \{0, 1\}\) maps the current state to a halt decision. Safe cyclic workflows guarantee termination by enforcing \(\sum_{i=1}^{k} c_i \leq B\), where \(c_i\) is the token cost of iteration \(i\) and \(B\) is the total budget. In practice, we set both an iteration limit (typically 3 to 5 review rounds) and a token budget.

async def run_cyclic_workflow(
    graph: WorkflowGraph,
    initial_input: Any,
    run_agent: Callable,
    max_iterations: int = 5,
    token_budget: int = 100_000,
) -> dict:
    """Execute a cyclic workflow graph with termination guarantees."""
    current_node = "developer"  # starting node
    state = initial_input
    total_tokens = 0
    history = []

    for iteration in range(max_iterations):
        role = graph.nodes[current_node]
        result = await run_agent(role, state)

        # track cost
        total_tokens += result.usage.total_tokens
        history.append({
            "iteration": iteration,
            "node": current_node,
            "output_summary": result.summary,
            "tokens": result.usage.total_tokens,
        })

        # check budget
        if total_tokens >= token_budget:
            return {
                "status": "budget_exceeded",
                "history": history,
                "final_output": result,
            }

        # find next node (may be None if terminal)
        next_node = graph.get_next(current_node, result)
        if next_node is None:
            return {
                "status": "completed",
                "history": history,
                "final_output": result,
            }

        # update state with agent output and move to next node
        state = {**state, f"{current_node}_output": result}
        current_node = next_node

    return {
        "status": "max_iterations_reached",
        "history": history,
        "final_output": result,
    }

4. Formalizing Workflows as State Machines

The workflow graphs above define structure, but how do we reason about their correctness: whether they always terminate, whether every node is reachable, whether the same input always follows the same path? The answer is to recognize that a workflow graph with conditional edges is a finite state machine (FSM), a mathematical model of computation with a fixed number of states and well-defined transitions between them. Each agent node is a state, each edge is a transition, and the condition functions are the transition guards. This formalism gives us powerful analysis tools:

Reachability: Can the workflow reach a terminal state from every starting state? If not, the workflow has dead ends that will hang without producing output.

Liveness: Does every cycle have a guaranteed exit? Without termination conditions, a review loop can spin forever.

Determinism: Given the same input, does the workflow always follow the same path? Non-determinism (from LLM stochasticity, the inherent randomness in token sampling) means the same issue might take two review rounds on one run and four on another. This is acceptable but must be budgeted for.

where \(Q\) is the set of agent states, \(\Sigma\) is the set of possible agent outputs (the alphabet), \(\delta: Q \times \Sigma \to Q\) is the transition function (workflow graph with conditions), \(q_0\) is the initial state (typically the PM), and \(F \subseteq Q\) is the set of accepting states (approved PR, terminal nodes).

from langgraph.graph import StateGraph, END
from typing import TypedDict

class TeamState(TypedDict):
    issue: str
    requirements: dict | None
    design: dict | None
    code: dict | None
    tests: dict | None
    review: dict | None
    iteration: int

def build_langgraph_pipeline() -> StateGraph:
    graph = StateGraph(TeamState)
    graph.add_node("pm", pm_agent_fn)
    graph.add_node("architect", architect_agent_fn)
    graph.add_node("developer", developer_agent_fn)
    graph.add_node("tester", tester_agent_fn)
    graph.add_node("reviewer", reviewer_agent_fn)

    graph.set_entry_point("pm")
    graph.add_edge("pm", "architect")
    graph.add_edge("architect", "developer")
    graph.add_edge("developer", "tester")
    graph.add_edge("tester", "reviewer")

    # conditional: loop back or finish
    graph.add_conditional_edges(
        "reviewer",
        lambda state: "developer" if not state["review"]["approved"]
                       and state["iteration"] < 5 else END,
    )
    return graph.compile()

5. Role Design Principles

State machine formalism tells you whether a workflow will terminate and which states it can reach, but it says nothing about whether the individual agents inside those states are well designed. That question is governed by a set of role design principles.

Effective agent roles follow four design principles distilled from ChatDev, MetaGPT, and production multi-agent systems:

Single responsibility. Each agent does one thing well. The PM does not design; the architect does not code; the reviewer does not fix bugs. When an agent's scope creeps, split it into two agents.

Structured interfaces. Agents communicate through typed schemas (Pydantic models, where Pydantic is a Python library that enforces type constraints on data classes at runtime, or JSON Schema), not free-form text. This prevents the "telephone game" problem where information degrades as it passes through multiple agents. MetaGPT demonstrated that structured outputs (Product Requirements Documents (PRDs), system designs, API specs) outperform unstructured chat between agents by approximately 30% on code generation benchmarks.

Constraining What Each Agent Can Do

Minimal tool sets. Each agent gets only the tools it needs. The PM can read files but not write them. The developer can write files but not deploy. The reviewer can read diffs and run tests but not modify code. This is the principle of least privilege applied to agent tooling, and it mirrors the MCP security model from Chapter 12.

Observable outputs. Every agent produces structured output that can be logged, inspected, and replayed. This is essential for debugging multi-agent systems: when the final PR has a bug, you need to trace which agent introduced it and what inputs led to the error. Chapter 22 (AgentOps) covers observability tooling in detail.

Exercises

1. Conceptual: Draw the workflow graph (nodes and edges) for a multi-agent team that handles bug reports. The team should include a triager (classifies severity and assigns to a component), a reproducer (writes a minimal reproduction script), a developer (fixes the bug), and a verifier (runs the reproduction script against the fix). Include at least one conditional edge and one back edge. What is the maximum number of iterations before the workflow must terminate?
2. Coding: Extend the WorkflowGraph class to support parallel fan-out edges. Add an add_parallel_edges method that takes a source node and a list of target nodes. Implement an async run() method that executes parallel targets concurrently using asyncio.gather and merges their results before continuing to the next node. Test with a graph where the architect fans out to both a developer and a test-plan writer.
3. Analysis: A review cycle with GPT-4o costs approximately \$0.30 per iteration (circa 2024 pricing; combined developer + reviewer calls). If the average task requires 2.5 review rounds and you process 200 issues per week, what is the weekly API cost for the review loop alone? How does this compare to the cost of a junior developer's code review time (assume \$50/hour, 15 minutes per review)?
