17.2 Coordination and Human Gates

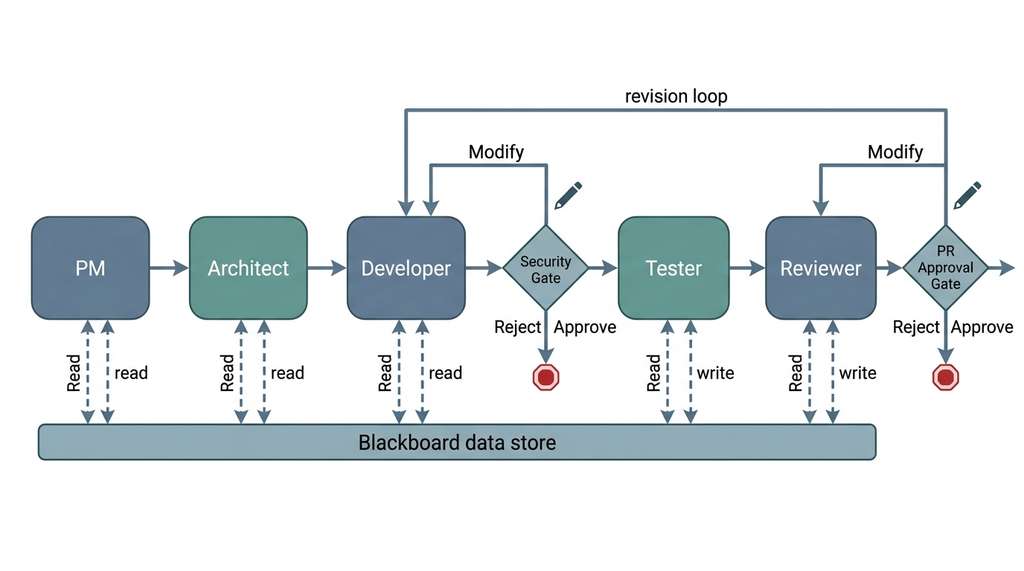

Figure 1 illustrates the full coordination architecture covered in this section. The blackboard sits at the center; view functions filter its contents for each agent; and human gates pause the pipeline at security-critical, cost-critical, or quality-critical decision points before the workflow continues.

1. Shared State: The Blackboard Pattern

Picture five AI agents working on a single pull request: the PM writes requirements, the architect designs a solution, and the developer starts coding, only to discover that the requirements changed two steps ago and nobody relayed the update. Without a coordination protocol, multi-agent teams fail the same way human teams do: through lost context, contradictory decisions, and unreviewed commits reaching production.

In a multi-agent workflow, every agent needs access to the evolving state of the software artifact: the requirements, the design, the current code, the test results, the review comments. The simplest coordination pattern is the blackboard: a shared data structure that all agents can read and write. Each agent reads the fields it needs, performs its work, and writes its output back to the blackboard. The workflow executor passes the blackboard to each agent in sequence.

A blackboard is a single mutable object (typically a dataclass or dictionary) that every agent in the pipeline reads from and writes to. Without this shared memory, agents would require explicit point-to-point wiring for every possible pair, scaling quadratically. The workflow executor holds one blackboard instance, passes it to each agent in turn, and the agent mutates the fields it owns before returning control. Use a blackboard when your team is small (fewer than roughly ten agents) and agents need overlapping subsets of the state. Switch to typed message channels (Section 2 below) when context window pressure or strict interface contracts outweigh implementation simplicity. In short: Without shared state, structured disagreement, and human checkpoints at high-stakes decisions, even capable agents produce correct code that breaks real systems.

from dataclasses import dataclass, field
from datetime import datetime

@dataclass
class Blackboard:
    """Shared state for a multi-agent software team.

    Every agent reads from and writes to this structure.
    The workflow executor passes it between agent invocations.
    """
    # input
    issue: dict = field(default_factory=dict)
    repository_context: dict = field(default_factory=dict)

    # PM output
    requirements: dict | None = None

    # Architect output
    design: dict | None = None
    api_contracts: list[dict] = field(default_factory=list)

    # Developer output
    file_changes: dict[str, str] = field(default_factory=dict)
    diff: str = ""

    # Tester output
    test_files: dict[str, str] = field(default_factory=dict)
    test_results: dict | None = None

    # Reviewer output
    review: dict | None = None
    approved: bool = False

    # Metadata
    iteration: int = 0
    total_tokens: int = 0
    history: list[dict] = field(default_factory=list)

    def record_step(self, agent_name: str, tokens: int, summary: str):
        """Log an agent execution for observability."""
        self.history.append({
            "agent": agent_name,
            "iteration": self.iteration,
            "tokens": tokens,
            "summary": summary,
            "timestamp": datetime.utcnow().isoformat(),
        })
        self.total_tokens += tokens

The blackboard pattern is simple but has a limitation: every agent sees the entire state, which can be overwhelming for the large language model (LLM) context window. A 200-line diff, three pages of requirements, an architect's design document, and 50 test results can easily exceed 100,000 tokens. We need a way to give each agent only the state it needs.

2. Typed Message Channels

An alternative to the monolithic blackboard is typed message passing: each edge in the workflow graph carries a specific message type, and each agent receives only the messages sent to it. This is the multi-agent analogue of function parameters: the developer receives a DesignDocument, not the entire blackboard. The message schemas below use Pydantic, where BaseModel is a declarative class whose fields are automatically validated at construction time (see the Pydantic documentation for details).

from pydantic import BaseModel, Field

class DesignMessage(BaseModel):
    """Message from Architect to Developer."""
    design_summary: str
    file_changes: list[dict] = Field(
        description="List of {path, change_type, description} dicts"
    )
    api_contracts: list[dict]
    constraints: list[str] = Field(
        description="Non-functional requirements: perf, security, etc."
    )

class CodeMessage(BaseModel):
    """Message from Developer to Tester and Reviewer."""
    diff: str
    files_changed: list[str]
    implementation_notes: str
    known_limitations: list[str] = []

class TestResultMessage(BaseModel):
    """Message from Tester to Reviewer."""
    tests_written: int
    tests_passed: int
    tests_failed: int
    coverage_percent: float
    failure_details: list[dict] = []

class ReviewMessage(BaseModel):
    """Message from Reviewer back to Developer (on rejection)."""
    approved: bool
    blockers: list[dict]       # must-fix issues
    warnings: list[dict]       # should-fix issues
    suggestions: list[dict]    # nice-to-have improvements
    summary: str


class TypedChannel:
    """A typed communication channel between two agents."""

    def __init__(self, name: str, message_type: type[BaseModel]):
        self.name = name
        self.message_type = message_type
        self._messages: list[BaseModel] = []

    def send(self, message: BaseModel):
        """Validate and enqueue a message."""
        if not isinstance(message, self.message_type):
            raise TypeError(
                f"Channel '{self.name}' expects {self.message_type.__name__}, "
                f"got {type(message).__name__}"
            )
        self._messages.append(message)

    def receive(self) -> BaseModel | None:
        """Dequeue the next message, or None if empty."""
        return self._messages.pop(0) if self._messages else None

3. View Functions: Context-Aware State Projection

A view function projects the full blackboard state into the subset that a specific agent needs. This is the multi-agent analogue of the context engineering techniques from Chapter 11: just as you select which files to include in an LLM's context window, you select which state fields to include in an agent's input.

from typing import Callable

# Each view function takes the full state and returns
# a filtered dict for the agent's system prompt context
ViewFunction = Callable[[Blackboard], dict]

def pm_view(state: Blackboard) -> dict:
    """PM sees only the raw issue and repository structure."""
    return {
        "issue": state.issue,
        "repo_structure": state.repository_context.get("structure", {}),
    }

def architect_view(state: Blackboard) -> dict:
    """Architect sees PM output plus repository context."""
    return {
        "requirements": state.requirements,
        "repo_structure": state.repository_context.get("structure", {}),
        "existing_patterns": state.repository_context.get("patterns", []),
    }

def developer_view(state: Blackboard) -> dict:
    """Developer sees design, requirements, and review feedback if cycling."""
    view = {
        "design": state.design,
        "requirements": state.requirements,
        "api_contracts": state.api_contracts,
    }
    if state.review and not state.approved:
        # on review rejection, include the feedback
        view["review_feedback"] = state.review
        view["previous_diff"] = state.diff
    return view

def reviewer_view(state: Blackboard) -> dict:
    """Reviewer sees the diff, design, requirements, and test results."""
    return {
        "diff": state.diff,
        "design": state.design,
        "requirements": state.requirements,
        "test_results": state.test_results,
        "iteration": state.iteration,
    }

4. Debate Patterns

Not every agent interaction is a handoff. Sometimes agents need to debate: argue for different approaches, critique each other's proposals, and converge on a decision. Du et al. (2023) showed that multi-agent debate improves factual accuracy on reasoning tasks. In software engineering, debate is useful for design decisions where multiple valid approaches exist.

4.1 Structured Debate Protocol

A structured debate has three phases: proposal (each agent states its position), critique (each agent responds to the others), and resolution (a judge agent or voting mechanism selects the winner). Debate must use typed proposals and explicit critique dimensions rather than free-form chat. LLMs are trained to be agreeable, so free-form debate tends to devolve into consensus; without explicit adversarial framing, agents converge on the first proposal.

Mental Model

Think of a structured debate like a competitive cooking show (such as Chopped). In round one (proposal), each chef prepares a dish independently using the same basket of ingredients. In round two (critique), the chefs taste each other's dishes and point out what works, what does not, and what they would change. In round three (resolution), the judges weigh the critiques and pick a winner, often suggesting the winning chef incorporate a technique from one of the losing dishes. The structure matters: if you just let the chefs talk casually, they would politely agree that everyone's dish is good. The timed rounds, mandatory critique, and independent judge force genuine evaluation, exactly as typed proposals, explicit critique dimensions, and a separate judge agent do for LLM debate.

from enum import Enum

class DebatePhase(Enum):
    PROPOSAL = "proposal"
    CRITIQUE = "critique"
    RESOLUTION = "resolution"

@dataclass
class Proposal:
    """A design proposal from one agent."""
    agent_name: str
    approach: str
    rationale: str
    trade_offs: list[str]
    estimated_complexity: str
    code_sketch: str  # pseudocode or skeleton

@dataclass
class Critique:
    """A critique of another agent's proposal."""
    critic_name: str
    target_proposal: str      # agent_name of the proposal being critiqued
    strengths: list[str]
    weaknesses: list[str]
    questions: list[str]
    recommendation: str       # "accept", "modify", "reject"

@dataclass
class DebateResult:
    """The outcome of a structured debate."""
    winning_proposal: str
    rationale: str
    modifications: list[str]  # changes to the winning proposal
    dissenting_opinions: list[str]


async def run_debate(
    question: str,
    debaters: list[AgentRole],
    judge: AgentRole,
    run_agent: Callable,
    context: dict,
) -> DebateResult:
    """Run a structured three-phase debate between agents.

    AgentRole and WorkflowGraph are defined in Section 17.1.
    asyncio.gather runs all coroutines concurrently and returns
    their results as a list once every coroutine completes.
    """

    # Phase 1: Proposals (parallel)
    proposals = await asyncio.gather(*[
        run_agent(agent, {
            "phase": DebatePhase.PROPOSAL,
            "question": question,
            "context": context,
        })
        for agent in debaters
    ])

    # Phase 2: Critiques (each agent critiques all others, parallel)
    critique_tasks = []
    for i, agent in enumerate(debaters):
        other_proposals = [p for j, p in enumerate(proposals) if j != i]
        critique_tasks.append(
            run_agent(agent, {
                "phase": DebatePhase.CRITIQUE,
                "own_proposal": proposals[i],
                "other_proposals": other_proposals,
                "context": context,
            })
        )
    critiques = await asyncio.gather(*critique_tasks)

    # Phase 3: Resolution (judge evaluates all proposals and critiques)
    result = await run_agent(judge, {
        "phase": DebatePhase.RESOLUTION,
        "proposals": proposals,
        "critiques": critiques,
        "question": question,
        "context": context,
    })

    return result

4.2 When to Use Debate

Debate is valuable when the design space has multiple plausible solutions and the cost of choosing wrong is high. Use debate for:

• Architecture decisions: monolith vs. microservice, SQL vs. NoSQL, synchronous vs. asynchronous.
• Algorithm selection: when the performance characteristics of different approaches depend on workload assumptions (see Chapter 15).
• Security trade-offs: convenience vs. safety, where a single agent might under-weight the security perspective.

Do not use debate for routine implementation tasks where the design is already specified. Having three agents debate the best way to write a for-loop wastes tokens and time.

Debate resolves disagreements between agents, but some decisions are too consequential for any combination of agents to make alone.

5. Human Approval Gates

When an autonomous coding agent deploys a database migration without review, dropping a column that three downstream services depend on, the resulting outage is not a failure of code quality; it is a failure of coordination. The agent's diff was correct in isolation. What was missing was a checkpoint where a human could recognize the cross-service dependency before the change reached production.

The most important coordination mechanism in a multi-agent team is not between agents; it is between agents and humans. Human approval gates are checkpoints where the workflow pauses and presents a decision to a human operator. The human can approve (continue), reject (halt), or modify (edit the state before continuing). Figure 17.2.1 illustrates multi-agent workflow with human approval gates.

5.1 When to Gate

Not every agent output needs human review. Gates should be placed at decision points where the cost of a wrong decision is high relative to the cost of human review time. Three categories warrant gates:

Security-critical decisions. Any action that modifies access controls, handles credentials, or changes security-sensitive code. The reviewer agent may flag a potential SQL injection, but a human must decide whether the risk is real. See Chapter 20 for deeper treatment.

Cost-critical decisions. Actions that incur significant cost: deploying to production, provisioning cloud resources, purchasing API credits. The architect might recommend a solution that costs \$500/month in cloud compute; a human should approve that commitment.

Quality-critical decisions. The final pull request (PR) approval before merge. Even if the reviewer agent approves, a human should review the diff for a new feature that affects user-facing behavior. This is the "four-eyes principle" (the requirement that at least two people review any critical change before it takes effect) applied to AI-generated code.

from enum import Enum
from typing import Any

class GateDecision(Enum):
    APPROVE = "approve"
    REJECT = "reject"
    MODIFY = "modify"

class GateType(Enum):
    SECURITY = "security"
    COST = "cost"
    QUALITY = "quality"

@dataclass
class HumanGate:
    """A checkpoint where the workflow pauses for human review."""
    name: str
    gate_type: GateType
    description: str
    required_fields: list[str]  # state fields to show the human

    def should_trigger(self, state: Blackboard) -> bool:
        """Determine whether this gate activates given current state."""
        raise NotImplementedError

    def format_for_review(self, state: Blackboard) -> dict:
        """Extract and format the information the human needs to decide."""
        return {
            field: getattr(state, field, None)
            for field in self.required_fields
        }


class PRApprovalGate(HumanGate):
    """Gate before merging a pull request."""

    def __init__(self):
        super().__init__(
            name="pr_approval",
            gate_type=GateType.QUALITY,
            description="Review the final PR before merge",
            required_fields=["diff", "test_results", "review", "requirements"],
        )

    def should_trigger(self, state: Blackboard) -> bool:
        # always trigger for final PR approval
        return state.approved

class SecurityReviewGate(HumanGate):
    """Gate when security-sensitive files are modified."""

    SENSITIVE_PATTERNS = [
        "auth", "security", "password", "token", "secret",
        "credential", "permission", "acl", "rbac",
    ]

    def __init__(self):
        super().__init__(
            name="security_review",
            gate_type=GateType.SECURITY,
            description="Security-sensitive files were modified",
            required_fields=["diff", "file_changes", "review"],
        )

    def should_trigger(self, state: Blackboard) -> bool:
        changed_files = list(state.file_changes.keys())
        return any(
            pattern in f.lower()
            for f in changed_files
            for pattern in self.SENSITIVE_PATTERNS
        )

5.2 Gate Integration in the Workflow

Gates are nodes in the WorkflowGraph (the directed graph of agent steps defined in Section 17.1), just like agent nodes. When the executor reaches a gate node, it pauses execution, formats the relevant state for human review, and waits for a response. The gate's output (approve, reject, modify) determines which edge the workflow follows next.

async def execute_with_gates(
    graph: WorkflowGraph,
    state: Blackboard,
    gates: list[HumanGate],
    run_agent: Callable,
    request_human_review: Callable,  # async fn that blocks until human responds
) -> Blackboard:
    """Execute a workflow graph with human approval gates."""
    current_node = graph.entry_point

    while current_node is not None:
        # check if any gate should trigger before this node
        for gate in gates:
            if gate.should_trigger(state):
                review_data = gate.format_for_review(state)
                decision = await request_human_review(
                    gate_name=gate.name,
                    gate_type=gate.gate_type.value,
                    description=gate.description,
                    data=review_data,
                )

                if decision.action == GateDecision.REJECT:
                    state.history.append({
                        "event": "human_rejection",
                        "gate": gate.name,
                        "reason": decision.reason,
                    })
                    return state  # halt the workflow

                if decision.action == GateDecision.MODIFY:
                    # apply human modifications to state
                    for key, value in decision.modifications.items():
                        setattr(state, key, value)

        # run the agent at this node
        role = graph.nodes[current_node]
        view_fn = graph.view_functions.get(current_node, lambda s: vars(s))
        agent_input = view_fn(state)

        result = await run_agent(role, agent_input)

        # update state with agent output
        state = update_state(state, current_node, result)

        # determine next node
        current_node = graph.get_next(current_node, result)

    return state

Common Misconception

A common misconception is that human gates exist only as a temporary safety net, to be removed once the agents "get good enough." In reality, some gates are permanent by design. Security-critical and cost-critical gates reflect organizational policy and regulatory requirements, not agent capability. Even a multi-agent team with a perfect track record should retain gates on actions like deploying to production or modifying access controls, because the gate enforces accountability and auditability, not just error correction.

6. Event-Driven Coordination

In production multi-agent systems, coordination is often event-driven rather than graph-traversal-driven. Agents subscribe to events (new issue filed, PR created, test suite completed) and react asynchronously. This is the publish-subscribe pattern, where publishers emit named events and subscribers register handler functions that fire when those events occur. Event-driven coordination is more flexible than a fixed workflow graph: it supports dynamic team composition, late-joining agents, and parallel independent workflows.

from collections import defaultdict
import asyncio

class EventBus:
    """A publish-subscribe event bus for agent coordination."""

    def __init__(self):
        self._subscribers: dict[str, list[Callable]] = defaultdict(list)

    def subscribe(self, event_type: str, handler: Callable):
        """Register a handler for an event type."""
        self._subscribers[event_type].append(handler)

    async def publish(self, event_type: str, payload: dict):
        """Publish an event to all subscribers."""
        handlers = self._subscribers.get(event_type, [])
        await asyncio.gather(*[
            handler(payload) for handler in handlers
        ])


# usage: wire agents to events
bus = EventBus()

async def on_issue_created(payload):
    """PM agent reacts to new issues."""
    requirements = await run_agent(pm_role, payload)
    await bus.publish("requirements_ready", requirements)

async def on_requirements_ready(payload):
    """Architect agent reacts to completed requirements."""
    design = await run_agent(architect_role, payload)
    await bus.publish("design_ready", design)

async def on_tests_failed(payload):
    """Developer agent reacts to test failures."""
    fix = await run_agent(developer_role, {
        "task": "fix_test_failures",
        "failures": payload["failure_details"],
        "current_code": payload["code"],
    })
    await bus.publish("code_updated", fix)

bus.subscribe("issue_created", on_issue_created)
bus.subscribe("requirements_ready", on_requirements_ready)
bus.subscribe("tests_failed", on_tests_failed)

from autogen import AssistantAgent, UserProxyAgent, GroupChat, GroupChatManager

pm = AssistantAgent("pm", system_message="You are a product manager...")
architect = AssistantAgent("architect", system_message="You are an architect...")
developer = AssistantAgent("developer", system_message="You are a developer...")
reviewer = AssistantAgent("reviewer", system_message="You are a reviewer...")

# human proxy for approval gates
human = UserProxyAgent(
    "human",
    human_input_mode="TERMINATE",  # ask human only at the end
    code_execution_config={"work_dir": "workspace"},
)

group_chat = GroupChat(
    agents=[pm, architect, developer, reviewer, human],
    messages=[],
    max_round=20,
)
manager = GroupChatManager(groupchat=group_chat)
human.initiate_chat(manager, message="Implement CSV export for the dashboard")

Whether coordination follows a fixed graph or a reactive event bus, any long-running pipeline is vulnerable to mid-flight failures that would force a complete restart without safeguards.

7. State Persistence and Recovery

Multi-agent workflows run for minutes to hours, and a mid-flight failure (API timeout, rate limit, model outage) should not force a full restart. State persistence checkpoints the blackboard after every agent step, letting the workflow resume from the last successful node.

import json
from pathlib import Path

class CheckpointManager:
    """Persist and recover workflow state across failures."""

    def __init__(self, checkpoint_dir: Path):
        self.checkpoint_dir = checkpoint_dir
        self.checkpoint_dir.mkdir(parents=True, exist_ok=True)

    def save(self, workflow_id: str, state: Blackboard, step: str):
        """Save a checkpoint after a successful agent step."""
        path = self.checkpoint_dir / f"{workflow_id}_{step}.json"
        data = {
            "step": step,
            "iteration": state.iteration,
            "total_tokens": state.total_tokens,
            "approved": state.approved,
            "requirements": state.requirements,
            "design": state.design,
            "diff": state.diff,
            "test_results": state.test_results,
            "review": state.review,
            "history": state.history,
        }
        path.write_text(json.dumps(data, indent=2, default=str))

    def load_latest(self, workflow_id: str) -> tuple[str, dict] | None:
        """Load the most recent checkpoint for a workflow."""
        checkpoints = sorted(
            self.checkpoint_dir.glob(f"{workflow_id}_*.json"),
            key=lambda p: p.stat().st_mtime,
            reverse=True,
        )
        if not checkpoints:
            return None
        data = json.loads(checkpoints[0].read_text())
        return data["step"], data

    def resume_from(self, workflow_id: str, graph: WorkflowGraph) -> str | None:
        """Determine the next node to execute after a checkpoint."""
        result = self.load_latest(workflow_id)
        if result is None:
            return graph.entry_point
        last_step, state_data = result
        # find the node after the last completed step
        return graph.get_next(last_step, state_data)

Checkpointing protects against wasted computation from failures, but even successful runs can become expensive when every agent in the pipeline consumes a full LLM call.

8. Cost and Latency Management

Multi-agent workflows multiply both cost and latency. A five-agent sequential pipeline with three review rounds makes \(5 + 3 \times 2 = 11\) LLM calls. If each call costs \$0.20 at typical 2024-2025 pricing and takes 15 seconds, the total is \$2.20 and 2.75 minutes. At just 100 issues per day, that single pipeline costs \$220 daily and occupies nearly five hours of serial wall-clock time, before any retry loops. For production systems processing hundreds of issues per day, cost management is essential.

Three strategies keep costs under control:

Tiered models. Not every agent needs the most capable model. The PM and architect benefit from a strong reasoning model (GPT-4o, Claude Sonnet); the developer may use a coding-specialized model (Claude Sonnet with coding prompts); and the tester can use a smaller, faster model for straightforward test generation. The reviewer, whose job is adversarial critique, benefits from a strong model.

Early termination. If the tester finds that all tests pass on the first try, skip the review loop entirely (or limit it to a single pass). If the PM determines that the issue is a one-line typo fix, bypass the architect and route directly to the developer.

Caching. If two issues require the same repository context (directory structure, coding patterns, test framework), cache the context extraction once and reuse it. LLM prompt caching (available in both OpenAI and Anthropic APIs) can reduce costs by 50-90% for the shared prefix portions of prompts.

Exercises

1. Conceptual: A multi-agent team processes a security-sensitive change that modifies the authentication module. List all the gates that should trigger, in what order, and what information each gate should present to the human reviewer. How does the gate placement change if the team has a proven track record of 500 successful security changes with zero incidents?
2. Coding: Implement a DebateManager class that runs a two-round debate between three agents on a design question. In round one, each agent proposes an approach. In round two, each agent critiques the other two proposals. Use asyncio.gather for parallelism within each round. The manager should produce a structured DebateResult with the winning proposal and dissenting opinions. Test with three agents debating "REST vs. GraphQL vs. gRPC for a scientific data API."
3. Analysis: Compare the token cost of a blackboard-based workflow (every agent receives the full state) vs. a message-passing workflow (each agent receives only its input channel) for a team processing an issue that generates a 500-line diff. Assume the blackboard contains 2,000 tokens of requirements, 3,000 tokens of design, the 500-line diff (5,000 tokens), 1,500 tokens of test results, and 1,000 tokens of review comments. How many tokens does each agent see in each approach? What is the total token consumption across all five agents?
