6.4 Bootstrapping the Discovery Workbench

"I meant to build a scaffold. Somewhere around the third migration it acquired a task queue, a provenance graph, and opinions about reproducibility. My scaffold now has a README longer than my thesis."

A Scaffold That Became a Cathedral

The Big Picture

This section is a recipe. We take the architectural concepts from the previous three sections and turn them into running code. By the end, you will have a Discovery Workbench v0: a SQLite-backed artifact registry, a task log for tracking discovery proposals, a FastAPI API layer, a Git-based reproducibility harness, and a command-line interface (CLI) that ties everything together. The Workbench is deliberately minimal. Every subsequent chapter in this book will extend it: adding knowledge graphs (Part II), agent loops (Part III), active learning (Part V), and autonomous experiment orchestration (Part VII). Think of this section as pouring the foundation slab. The cathedral comes later. Figure 6.4.1 illustrates Workbench v0 component architecture and data flow.

1. Project Structure and Dependencies

Six months from now, a colleague asks you to reproduce your best result. You vaguely remember the script. You do not remember which dataset version it consumed, which packages were installed, or whether you edited the config file before or after the final run. A disciplined directory layout and artifact store would answer all of those questions in seconds; their absence will cost you days of forensic archaeology. Here is the layout for Workbench v0:

discovery-workbench/
├── workbench/
│   ├── __init__.py
│   ├── db.py              # Database initialization and connection
│   ├── registry.py        # Artifact registry (content-addressable)
│   ├── tasklog.py         # Discovery task lifecycle
│   ├── api.py             # FastAPI endpoints
│   ├── cli.py             # Click-based CLI
│   └── reproducibility.py # Git + environment capture
├── tests/
│   ├── test_registry.py
│   ├── test_tasklog.py
│   └── test_api.py
├── data/                  # Default artifact storage
├── workbench.db           # SQLite database (created at runtime)
├── Dockerfile
├── pyproject.toml
└── README.md

The dependency footprint is intentionally small. We want the Workbench to install in seconds and run on a laptop with no external services:

[project]
name = "discovery-workbench"
version = "0.1.0"
requires-python = ">=3.10"
dependencies = [
    "fastapi>=0.110",
    "uvicorn[standard]>=0.29",
    "pydantic>=2.0",
    "click>=8.1",
]

[project.scripts]
workbench = "workbench.cli:main"

[project.optional-dependencies]
dev = ["pytest>=8.0", "httpx>=0.27"]

Install the project in editable mode so that the workbench CLI is available immediately:

pip install -e ".[dev]"

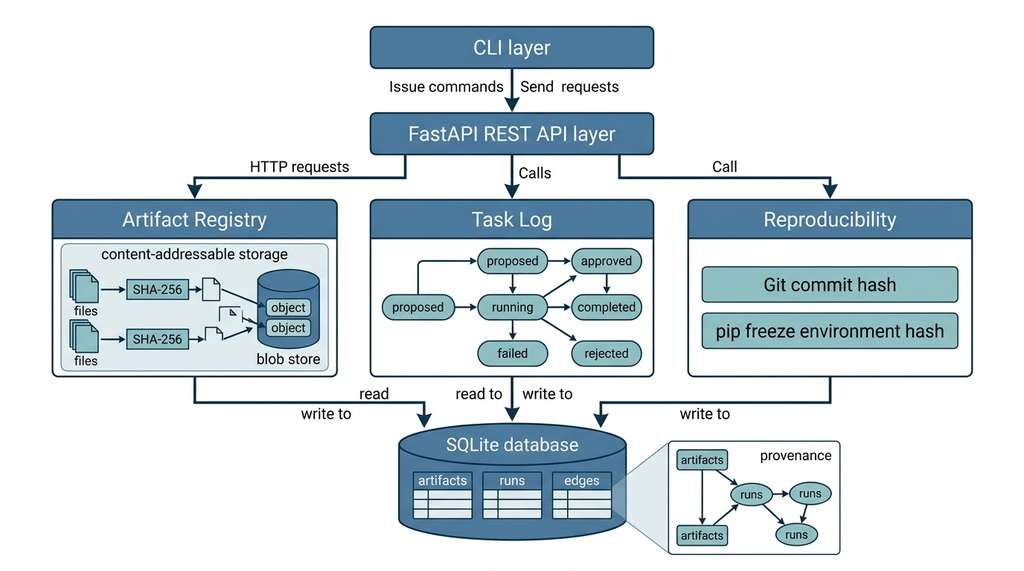

Figure 6.4 shows how the five Workbench modules are organized into three layers: an interface layer (CLI and API), a logic layer (artifact registry, task log, and reproducibility capture), and a storage layer (SQLite database and content-addressed blob store). Each arrow represents a function-call or data-flow dependency.

2. The Artifact Registry (SQLite)

Without a dedicated artifact store, teams routinely discover that their "best result" cannot be reproduced because nobody recorded which version of which file fed which script. That single missing link can invalidate months of work and stall a publication through entire review cycles.

The artifact registry is the Workbench's memory. Every dataset, model checkpoint, figure, and configuration file that participates in a discovery workflow gets registered here. The registry answers three questions that every reproducibility audit asks: what was produced, how was it produced, and from what was it produced. In short: A discovery system that cannot remember its own past is condemned to repeat its failures instead of building on its successes.

The schema uses three tables. artifacts stores metadata for each registered object. runs records the computational steps that produce artifacts. edges captures the provenance relationships between artifacts and runs, forming the directed acyclic graph (DAG) described in Section 6.2.

"""workbench/db.py -- Database initialization and connection."""
import sqlite3
from pathlib import Path

DEFAULT_DB = Path("workbench.db")

SCHEMA = """
CREATE TABLE IF NOT EXISTS artifacts (
    id          TEXT PRIMARY KEY,   -- SHA-256 content hash
    name        TEXT NOT NULL,
    kind        TEXT NOT NULL,      -- dataset, model, figure, config, metric
    created_at  TEXT NOT NULL DEFAULT (datetime('now')),
    metadata    TEXT,               -- JSON blob for flexible attributes
    blob_path   TEXT                -- relative path in data/ directory
);

CREATE TABLE IF NOT EXISTS runs (
    id          TEXT PRIMARY KEY,   -- UUID
    name        TEXT NOT NULL,
    status      TEXT NOT NULL DEFAULT 'pending',
    started_at  TEXT,
    finished_at TEXT,
    params      TEXT,               -- JSON: hyperparameters, settings
    git_hash    TEXT,               -- commit hash at run start
    git_dirty   INTEGER DEFAULT 0,  -- 1 if working tree had uncommitted changes
    env_hash    TEXT,               -- SHA-256 of pip freeze output
    error_msg   TEXT
);

CREATE TABLE IF NOT EXISTS edges (
    id          INTEGER PRIMARY KEY AUTOINCREMENT,
    source_id   TEXT NOT NULL,      -- artifact or run ID
    target_id   TEXT NOT NULL,      -- artifact or run ID
    role        TEXT NOT NULL,      -- input, output, parameter, metric
    UNIQUE(source_id, target_id, role)
);

CREATE INDEX IF NOT EXISTS idx_edges_source ON edges(source_id);
CREATE INDEX IF NOT EXISTS idx_edges_target ON edges(target_id);
CREATE INDEX IF NOT EXISTS idx_artifacts_kind ON artifacts(kind);
CREATE INDEX IF NOT EXISTS idx_runs_status ON runs(status);
"""


def get_connection(db_path: Path = DEFAULT_DB) -> sqlite3.Connection:
    """Return a connection with WAL mode and foreign keys enabled."""
    conn = sqlite3.connect(str(db_path))
    conn.execute("PRAGMA journal_mode=WAL")
    conn.execute("PRAGMA foreign_keys=ON")
    conn.row_factory = sqlite3.Row
    return conn


def init_db(db_path: Path = DEFAULT_DB) -> None:
    """Create tables if they do not exist."""
    conn = get_connection(db_path)
    conn.executescript(SCHEMA)
    conn.close()

The content-addressable storage scheme deserves explanation. When you register an artifact, the registry computes the SHA-256 hash of the file's contents and uses that hash as the artifact's primary key. Two files with identical contents always produce the same ID, regardless of filename or timestamp. This property, called content addressing, gives us deduplication for free: if a dataset appears in ten experiments, it is stored once. It also makes integrity verification a single comparison. If the hash of a stored blob no longer matches its ID, the file has been corrupted or tampered with. Because the hash is deterministic, re-registering the same file is idempotent (where idempotent means that repeating the operation produces the same result without side effects): the registry returns the existing ID and writes nothing new.

Content addressing names every stored object by a deterministic hash of its bytes, typically SHA-256. This decouples identity from location and from human-chosen filenames. Two researchers on different continents who independently hash the same CSV obtain the same key, proving they hold identical data without transferring a single byte. The registration mechanism reads the file in fixed-size chunks, feeds each chunk to a streaming hash, and uses the resulting 64-character hexadecimal digest as the primary key in both the database and the on-disk blob store. Choose content addressing whenever artifacts may be shared across projects, teams, or time spans and you need a guarantee of identity without centralized coordination; for purely ephemeral, single-user scratch files that will never be referenced again, a simpler timestamped naming scheme suffices.

Collision Resistance at Scale

Given that the entire system's integrity rests on hash uniqueness, it is worth asking whether SHA-256 can realistically produce collisions at the scale of a real discovery campaign.

The number of bits in a SHA-256 hash is \(n = 256\). The probability of a collision after registering \(k\) artifacts follows the birthday-bound approximation (a formula from probability theory that estimates how many items you can draw from a space before two happen to collide):

For \(k = 10^9\) (a billion artifacts), the collision probability is approximately \(10^{-58}\). (You could register a billion artifacts every second for the entire age of the universe and still expect zero collisions.) Content addressing is safe for any plausible discovery campaign.

"""workbench/registry.py -- Content-addressable artifact registry."""
import hashlib
import json
import shutil
import uuid
from datetime import datetime, timezone
from pathlib import Path
from typing import Optional

from workbench.db import get_connection, init_db

DATA_DIR = Path("data")


def _content_hash(file_path: Path) -> str:
    """Compute SHA-256 of a file's contents in streaming fashion."""
    h = hashlib.sha256()
    with open(file_path, "rb") as f:
        for chunk in iter(lambda: f.read(8192), b""):
            h.update(chunk)
    return h.hexdigest()


def register_artifact(
    file_path: str | Path,
    name: str,
    kind: str,
    metadata: Optional[dict] = None,
) -> str:
    """
    Register a file as a versioned artifact.

    Returns the content-hash ID.  If an artifact with the same
    hash already exists, the call is idempotent: the existing
    ID is returned and no data is duplicated.
    """
    file_path = Path(file_path)
    if not file_path.exists():
        raise FileNotFoundError(f"Artifact source not found: {file_path}")

    artifact_id = _content_hash(file_path)
    DATA_DIR.mkdir(parents=True, exist_ok=True)
    blob_path = DATA_DIR / artifact_id
    if not blob_path.exists():
        shutil.copy2(file_path, blob_path)

    init_db()
    conn = get_connection()
    conn.execute(
        """INSERT OR IGNORE INTO artifacts
           (id, name, kind, created_at, metadata, blob_path)
           VALUES (?, ?, ?, ?, ?, ?)""",
        (
            artifact_id,
            name,
            kind,
            datetime.now(timezone.utc).isoformat(),
            json.dumps(metadata or {}),
            str(blob_path),
        ),
    )
    conn.commit()
    conn.close()
    return artifact_id


def get_artifact(artifact_id: str) -> Optional[dict]:
    """Retrieve artifact metadata by content hash."""
    init_db()
    conn = get_connection()
    row = conn.execute(
        "SELECT * FROM artifacts WHERE id = ?", (artifact_id,)
    ).fetchone()
    conn.close()
    return dict(row) if row else None


def create_run(
    name: str,
    params: Optional[dict] = None,
    input_ids: Optional[list[str]] = None,
) -> str:
    """
    Create a new run record and link input artifacts.

    Returns the run UUID.  The run starts in 'running' status
    with the current Git commit hash captured automatically.
    """
    from workbench.reproducibility import capture_git_state, capture_env_hash

    run_id = str(uuid.uuid4())
    git_hash, git_dirty = capture_git_state()
    env_hash = capture_env_hash()

    init_db()
    conn = get_connection()
    conn.execute(
        """INSERT INTO runs
           (id, name, status, started_at, params, git_hash, git_dirty, env_hash)
           VALUES (?, ?, 'running', ?, ?, ?, ?, ?)""",
        (
            run_id,
            name,
            datetime.now(timezone.utc).isoformat(),
            json.dumps(params or {}),
            git_hash,
            1 if git_dirty else 0,
            env_hash,
        ),
    )
    for aid in (input_ids or []):
        conn.execute(
            "INSERT INTO edges (source_id, target_id, role) VALUES (?, ?, 'input')",
            (aid, run_id),
        )
    conn.commit()
    conn.close()
    return run_id


def finish_run(
    run_id: str,
    output_paths: Optional[list[tuple[str | Path, str, str]]] = None,
    metrics: Optional[dict] = None,
    error: Optional[str] = None,
) -> list[str]:
    """
    Mark a run as completed (or failed) and register output artifacts.

    Parameters
    ----------
    run_id       : the UUID returned by create_run
    output_paths : list of (file_path, name, kind) triples to register
    metrics      : dict of metric_name -> value to store as a metric artifact
    error        : if not None, the run is marked 'failed' with this message

    Returns a list of output artifact IDs.
    """
    init_db()
    conn = get_connection()
    status = "failed" if error else "completed"
    conn.execute(
        """UPDATE runs
           SET status = ?, finished_at = ?, error_msg = ?
           WHERE id = ?""",
        (status, datetime.now(timezone.utc).isoformat(), error, run_id),
    )

    output_ids = []
    for file_path, name, kind in (output_paths or []):
        aid = register_artifact(file_path, name, kind)
        conn.execute(
            "INSERT OR IGNORE INTO edges (source_id, target_id, role) VALUES (?, ?, 'output')",
            (run_id, aid),
        )
        output_ids.append(aid)

    if metrics:
        metrics_json = json.dumps(metrics)
        metrics_hash = hashlib.sha256(metrics_json.encode()).hexdigest()
        conn.execute(
            """INSERT OR IGNORE INTO artifacts
               (id, name, kind, created_at, metadata, blob_path)
               VALUES (?, ?, 'metric', ?, ?, NULL)""",
            (metrics_hash, f"metrics-{run_id[:8]}", datetime.now(timezone.utc).isoformat(), metrics_json),
        )
        conn.execute(
            "INSERT OR IGNORE INTO edges (source_id, target_id, role) VALUES (?, ?, 'metric')",
            (run_id, metrics_hash),
        )
        output_ids.append(metrics_hash)

    conn.commit()
    conn.close()
    return output_ids


def get_lineage(artifact_id: str, depth: int = 10) -> dict:
    """
    Trace the provenance of an artifact up to `depth` hops.

    Returns a nested dict representing the subgraph:
    each node has 'type' (artifact or run), 'info' (row data),
    and 'parents' (list of upstream nodes).
    """
    init_db()
    conn = get_connection()

    def _trace(node_id: str, remaining: int) -> dict:
        if remaining <= 0:
            return {"id": node_id, "truncated": True}

        # Check if it is an artifact
        art = conn.execute(
            "SELECT * FROM artifacts WHERE id = ?", (node_id,)
        ).fetchone()
        if art:
            node = {"type": "artifact", "info": dict(art), "parents": []}
        else:
            run = conn.execute(
                "SELECT * FROM runs WHERE id = ?", (node_id,)
            ).fetchone()
            if run:
                node = {"type": "run", "info": dict(run), "parents": []}
            else:
                return {"id": node_id, "unknown": True}

        # Find upstream edges (this node is the target)
        parents = conn.execute(
            "SELECT source_id, role FROM edges WHERE target_id = ?",
            (node_id,),
        ).fetchall()
        for parent in parents:
            node["parents"].append({
                "role": parent["role"],
                "node": _trace(parent["source_id"], remaining - 1),
            })
        return node

    result = _trace(artifact_id, depth)
    conn.close()
    return result

3. The Task Log

The artifact registry records what happened. The task log records what should happen. In a discovery system, tasks represent proposed next steps: "Train model X on dataset Y with learning rate Z" or "Run ablation study removing feature W." Tasks pass through a lifecycle: proposed (an agent or human suggests the step), approved (a human or policy gate authorizes it), running (execution is underway), completed (the step finished successfully), or failed (something went wrong). This lifecycle is the "human-in-the-loop" gate described in Section 6.3.

"""workbench/tasklog.py -- Discovery task lifecycle management."""
import json
import uuid
from datetime import datetime, timezone
from typing import Optional

from workbench.db import get_connection, init_db

TASK_SCHEMA = """
CREATE TABLE IF NOT EXISTS tasks (
    id           TEXT PRIMARY KEY,
    title        TEXT NOT NULL,
    description  TEXT,
    status       TEXT NOT NULL DEFAULT 'proposed',
    priority     INTEGER DEFAULT 0,
    proposed_by  TEXT,           -- 'agent:gpt-4o', 'human:alice', etc.
    approved_by  TEXT,
    created_at   TEXT NOT NULL,
    updated_at   TEXT NOT NULL,
    run_id       TEXT,           -- links to runs table once execution starts
    metadata     TEXT            -- JSON: rationale, estimated cost, etc.
);

CREATE INDEX IF NOT EXISTS idx_tasks_status ON tasks(status);
"""

VALID_STATUSES = {"proposed", "approved", "running", "completed", "failed", "rejected"}


def _ensure_task_table() -> None:
    conn = get_connection()
    conn.executescript(TASK_SCHEMA)
    conn.close()


def propose_task(
    title: str,
    description: str = "",
    proposed_by: str = "human",
    priority: int = 0,
    metadata: Optional[dict] = None,
) -> str:
    """
    Propose a new discovery task.  Returns the task ID.

    The task starts in 'proposed' status and must be approved
    before it can be executed.  This is the safety gate:
    autonomous agents propose, humans (or policy rules) approve.
    """
    init_db()
    _ensure_task_table()
    task_id = str(uuid.uuid4())
    now = datetime.now(timezone.utc).isoformat()
    conn = get_connection()
    conn.execute(
        """INSERT INTO tasks
           (id, title, description, status, priority, proposed_by,
            created_at, updated_at, metadata)
           VALUES (?, ?, ?, 'proposed', ?, ?, ?, ?, ?)""",
        (task_id, title, description, priority, proposed_by,
         now, now, json.dumps(metadata or {})),
    )
    conn.commit()
    conn.close()
    return task_id


def update_task_status(
    task_id: str,
    new_status: str,
    approved_by: Optional[str] = None,
    run_id: Optional[str] = None,
    error: Optional[str] = None,
) -> None:
    """
    Transition a task to a new status.

    Enforces valid transitions:
      proposed  -> approved | rejected
      approved  -> running
      running   -> completed | failed
    """
    if new_status not in VALID_STATUSES:
        raise ValueError(f"Invalid status: {new_status}")

    init_db()
    _ensure_task_table()
    conn = get_connection()
    row = conn.execute(
        "SELECT status FROM tasks WHERE id = ?", (task_id,)
    ).fetchone()
    if not row:
        conn.close()
        raise KeyError(f"Task not found: {task_id}")

    current = row["status"]
    allowed = {
        "proposed": {"approved", "rejected"},
        "approved": {"running"},
        "running":  {"completed", "failed"},
    }
    if new_status not in allowed.get(current, set()):
        conn.close()
        raise ValueError(
            f"Cannot transition from '{current}' to '{new_status}'"
        )

    now = datetime.now(timezone.utc).isoformat()
    conn.execute(
        """UPDATE tasks
           SET status = ?, updated_at = ?, approved_by = COALESCE(?, approved_by),
               run_id = COALESCE(?, run_id)
           WHERE id = ?""",
        (new_status, now, approved_by, run_id, task_id),
    )
    conn.commit()
    conn.close()


def list_tasks(status: Optional[str] = None) -> list[dict]:
    """List tasks, optionally filtered by status."""
    init_db()
    _ensure_task_table()
    conn = get_connection()
    if status:
        rows = conn.execute(
            "SELECT * FROM tasks WHERE status = ? ORDER BY priority DESC, created_at",
            (status,),
        ).fetchall()
    else:
        rows = conn.execute(
            "SELECT * FROM tasks ORDER BY priority DESC, created_at"
        ).fetchall()
    conn.close()
    return [dict(r) for r in rows]

4. The FastAPI Layer

The API layer exposes the registry and task log over HTTP. This matters for two reasons. First, discovery agents running in separate processes (or on separate machines) need a network interface to register artifacts and propose tasks. Second, a REST API is the natural integration point for dashboards, notebooks, and continuous integration / continuous deployment (CI/CD) pipelines. The endpoints are thin wrappers around the library functions we have already written.

"""workbench/api.py -- FastAPI endpoints for the Discovery Workbench."""
from pathlib import Path
from typing import Optional

from fastapi import FastAPI, HTTPException, UploadFile, File, Form
from pydantic import BaseModel, Field

from workbench.registry import (
    register_artifact, get_artifact, create_run,
    finish_run, get_lineage,
)
from workbench.tasklog import propose_task, update_task_status, list_tasks
from workbench.db import init_db

app = FastAPI(
    title="Discovery Workbench",
    version="0.1.0",
    description="API for artifact registration, provenance tracking, and task management.",
)


@app.on_event("startup")
def startup():
    init_db()


# ---- Pydantic models ----

class ArtifactResponse(BaseModel):
    id: str
    name: str
    kind: str
    created_at: str
    metadata: str
    blob_path: Optional[str] = None


class RunCreate(BaseModel):
    name: str
    params: dict = Field(default_factory=dict)
    input_ids: list[str] = Field(default_factory=list)


class RunFinish(BaseModel):
    metrics: dict = Field(default_factory=dict)
    error: Optional[str] = None


class TaskCreate(BaseModel):
    title: str
    description: str = ""
    proposed_by: str = "human"
    priority: int = 0
    metadata: dict = Field(default_factory=dict)


class TaskStatusUpdate(BaseModel):
    new_status: str
    approved_by: Optional[str] = None
    run_id: Optional[str] = None


# ---- Artifact endpoints ----

@app.post("/artifacts", response_model=dict)
async def upload_artifact(
    file: UploadFile = File(...),
    name: str = Form(...),
    kind: str = Form("dataset"),
):
    """Register an uploaded file as a content-addressed artifact."""
    tmp_path = Path(f"/tmp/wb_upload_{file.filename}")
    with open(tmp_path, "wb") as f:
        content = await file.read()
        f.write(content)
    artifact_id = register_artifact(tmp_path, name, kind)
    tmp_path.unlink(missing_ok=True)
    return {"id": artifact_id, "name": name, "kind": kind}


@app.get("/artifacts/{artifact_id}")
async def read_artifact(artifact_id: str):
    """Retrieve artifact metadata by content hash."""
    art = get_artifact(artifact_id)
    if not art:
        raise HTTPException(status_code=404, detail="Artifact not found")
    return art


@app.get("/lineage/{artifact_id}")
async def read_lineage(artifact_id: str, depth: int = 10):
    """Trace the provenance DAG for an artifact."""
    return get_lineage(artifact_id, depth=depth)


# ---- Run endpoints ----

@app.post("/runs", response_model=dict)
async def start_run(body: RunCreate):
    """Create a new run record and link input artifacts."""
    run_id = create_run(body.name, body.params, body.input_ids)
    return {"run_id": run_id}


@app.post("/runs/{run_id}/finish", response_model=dict)
async def end_run(run_id: str, body: RunFinish):
    """Mark a run as completed or failed."""
    output_ids = finish_run(run_id, metrics=body.metrics, error=body.error)
    return {"run_id": run_id, "output_ids": output_ids}


# ---- Task endpoints ----

@app.post("/tasks", response_model=dict)
async def create_task(body: TaskCreate):
    """Propose a new discovery task."""
    task_id = propose_task(
        body.title, body.description, body.proposed_by,
        body.priority, body.metadata,
    )
    return {"task_id": task_id}


@app.get("/tasks")
async def get_tasks(status: Optional[str] = None):
    """List tasks, optionally filtered by status."""
    return list_tasks(status)


@app.patch("/tasks/{task_id}")
async def patch_task(task_id: str, body: TaskStatusUpdate):
    """Transition a task to a new status."""
    try:
        update_task_status(
            task_id, body.new_status,
            approved_by=body.approved_by,
            run_id=body.run_id,
        )
    except (KeyError, ValueError) as e:
        raise HTTPException(status_code=400, detail=str(e))
    return {"task_id": task_id, "status": body.new_status}

Start the server with uvicorn workbench.api:app --reload and visit http://localhost:8000/docs to explore the auto-generated OpenAPI documentation. FastAPI produces interactive Swagger UI pages (a browser-based interface that lets you test each endpoint by filling in parameters and inspecting responses) from the Pydantic models, so every endpoint is testable from the browser.

The API serves programmatic clients and dashboards well, but researchers working at a terminal throughout the day need something more immediate and scriptable.

5. The Reproducibility CLI

The CLI is how researchers interact with the Workbench day to day. It wraps the library in a set of commands that feel like a natural extension of a Git workflow: register artifacts, launch tracked runs, query lineage, and export reproducibility snapshots. Under the hood, it captures the Git commit hash and the environment fingerprint with every operation.

"""workbench/reproducibility.py -- Git and environment capture."""
import hashlib
import subprocess
from typing import Optional


def capture_git_state() -> tuple[Optional[str], bool]:
    """
    Return (commit_hash, is_dirty).

    If Git is not available or the directory is not a repo,
    returns (None, False).
    """
    try:
        commit = subprocess.check_output(
            ["git", "rev-parse", "HEAD"],
            stderr=subprocess.DEVNULL,
        ).decode().strip()
        status = subprocess.check_output(
            ["git", "status", "--porcelain"],
            stderr=subprocess.DEVNULL,
        ).decode().strip()
        return commit, len(status) > 0
    except (subprocess.CalledProcessError, FileNotFoundError):
        return None, False


def capture_env_hash() -> Optional[str]:
    """
    Hash the output of 'pip freeze' to fingerprint the environment.

    Two environments with the same env_hash have identical
    installed packages (same names, same versions).
    """
    try:
        freeze = subprocess.check_output(
            ["pip", "freeze"],
            stderr=subprocess.DEVNULL,
        ).decode()
        return hashlib.sha256(freeze.encode()).hexdigest()
    except (subprocess.CalledProcessError, FileNotFoundError):
        return None


def export_reproducibility_bundle(run_id: str, output_dir: str = ".") -> str:
    """
    Export a self-contained reproducibility snapshot for a run.

    The bundle includes:
    - The run record (JSON)
    - All input/output artifact metadata (JSON)
    - The pip freeze at run time
    - The git diff at run time (if the tree was dirty)
    - A Dockerfile that pins the exact environment
    """
    import json
    from pathlib import Path
    from workbench.registry import get_lineage
    from workbench.db import get_connection, init_db

    init_db()
    conn = get_connection()
    run = conn.execute("SELECT * FROM runs WHERE id = ?", (run_id,)).fetchone()
    if not run:
        conn.close()
        raise KeyError(f"Run not found: {run_id}")

    bundle_dir = Path(output_dir) / f"bundle-{run_id[:8]}"
    bundle_dir.mkdir(parents=True, exist_ok=True)

    # Run record
    (bundle_dir / "run.json").write_text(
        json.dumps(dict(run), indent=2)
    )

    # Lineage tree
    lineage = get_lineage(run_id, depth=5)
    (bundle_dir / "lineage.json").write_text(
        json.dumps(lineage, indent=2)
    )

    # Pip freeze
    try:
        freeze = subprocess.check_output(["pip", "freeze"]).decode()
        (bundle_dir / "requirements.txt").write_text(freeze)
    except (subprocess.CalledProcessError, FileNotFoundError):
        pass

    # Dockerfile
    dockerfile = (
        "FROM python:3.11-slim\n"
        "WORKDIR /app\n"
        "COPY requirements.txt .\n"
        "RUN pip install --no-cache-dir -r requirements.txt\n"
        "COPY . .\n"
        'CMD ["python", "-m", "workbench.cli"]\n'
    )
    (bundle_dir / "Dockerfile").write_text(dockerfile)

    conn.close()
    return str(bundle_dir)

Now the CLI itself, which wires these functions into named commands:

"""workbench/cli.py -- Click-based CLI for the Discovery Workbench."""
import json
import click

from workbench.db import init_db
from workbench.registry import (
    register_artifact, get_artifact, create_run,
    finish_run, get_lineage,
)
from workbench.tasklog import propose_task, update_task_status, list_tasks
from workbench.reproducibility import export_reproducibility_bundle


@click.group()
def main():
    """Discovery Workbench: track artifacts, runs, and provenance."""
    init_db()


# ---- Artifact commands ----

@main.command()
@click.argument("file_path")
@click.option("--name", required=True, help="Human-readable artifact name")
@click.option("--kind", default="dataset", help="Artifact type: dataset, model, figure, config")
@click.option("--meta", default=None, help="JSON string of metadata")
def register(file_path, name, kind, meta):
    """Register a file as a content-addressed artifact."""
    metadata = json.loads(meta) if meta else None
    artifact_id = register_artifact(file_path, name, kind, metadata)
    click.echo(f"Registered: {artifact_id[:16]}...  ({name}, {kind})")


@main.command()
@click.argument("artifact_id")
def info(artifact_id):
    """Show metadata for an artifact."""
    art = get_artifact(artifact_id)
    if art:
        click.echo(json.dumps(art, indent=2))
    else:
        click.echo(f"Artifact not found: {artifact_id}", err=True)


@main.command()
@click.argument("artifact_id")
@click.option("--depth", default=10, help="Maximum lineage depth")
def lineage(artifact_id, depth):
    """Trace the provenance DAG for an artifact."""
    tree = get_lineage(artifact_id, depth=depth)
    click.echo(json.dumps(tree, indent=2))


# ---- Run commands ----

@main.command()
@click.option("--name", required=True, help="Run name")
@click.option("--params", default="{}", help="JSON string of parameters")
@click.option("--inputs", default="", help="Comma-separated input artifact IDs")
def run(name, params, inputs):
    """Create a tracked run with Git and environment capture."""
    input_ids = [i.strip() for i in inputs.split(",") if i.strip()]
    run_id = create_run(name, json.loads(params), input_ids)
    click.echo(f"Run started: {run_id}")


@main.command("finish-run")
@click.argument("run_id")
@click.option("--metrics", default="{}", help="JSON string of metrics")
@click.option("--error", default=None, help="Error message (marks run as failed)")
def finish_run_cmd(run_id, metrics, error):
    """Mark a run as completed or failed."""
    output_ids = finish_run(run_id, metrics=json.loads(metrics), error=error)
    status = "failed" if error else "completed"
    click.echo(f"Run {status}: {run_id}")
    for oid in output_ids:
        click.echo(f"  Output: {oid[:16]}...")


# ---- Task commands ----

@main.command("task")
@click.argument("action", type=click.Choice(["propose", "approve", "reject", "list"]))
@click.option("--id", "task_id", default=None, help="Task ID (for approve/reject)")
@click.option("--title", default=None, help="Task title (for propose)")
@click.option("--desc", default="", help="Task description (for propose)")
@click.option("--by", default="human", help="Who is proposing/approving")
@click.option("--status", default=None, help="Filter for list action")
def task_cmd(action, task_id, title, desc, by, status):
    """Manage discovery tasks: propose, approve, reject, or list."""
    if action == "propose":
        if not title:
            click.echo("--title is required for propose", err=True)
            return
        tid = propose_task(title, desc, proposed_by=by)
        click.echo(f"Task proposed: {tid}")
    elif action in ("approve", "reject"):
        if not task_id:
            click.echo("--id is required for approve/reject", err=True)
            return
        new_status = "approved" if action == "approve" else "rejected"
        update_task_status(task_id, new_status, approved_by=by)
        click.echo(f"Task {new_status}: {task_id}")
    elif action == "list":
        tasks = list_tasks(status)
        if not tasks:
            click.echo("No tasks found.")
            return
        for t in tasks:
            click.echo(f"  [{t['status']:>9}] {t['id'][:8]}  {t['title']}")


# ---- Export command ----

@main.command()
@click.argument("run_id")
@click.option("--output", default=".", help="Output directory for the bundle")
def export(run_id, output):
    """Export a reproducibility bundle for a run."""
    bundle_path = export_reproducibility_bundle(run_id, output)
    click.echo(f"Bundle exported: {bundle_path}")


if __name__ == "__main__":
    main()

6. Putting It All Together

The following demonstration registers a dataset, runs a training experiment, records the results, and traces the full provenance chain, proving the system works end to end. Each step corresponds to an arrow in Figure 6.4: data flows from the blob store through the registry, into a tracked run, and back out as output artifacts with provenance edges.

"""demo.py -- End-to-end Workbench v0 demonstration."""
import json
import tempfile
from pathlib import Path

from workbench.db import init_db
from workbench.registry import register_artifact, create_run, finish_run, get_lineage
from workbench.tasklog import propose_task, update_task_status, list_tasks

# ---- Step 0: Initialize ----
init_db()
print("Database initialized.\n")

# ---- Step 1: Register a dataset ----
# Create a small CSV to simulate a real dataset
dataset_path = Path(tempfile.mktemp(suffix=".csv"))
dataset_path.write_text(
    "molecule_id,smiles,activity\n"
    "MOL001,CCO,0.85\n"
    "MOL002,c1ccccc1,0.23\n"
    "MOL003,CC(=O)O,0.91\n"
    "MOL004,C1CCCC1,0.45\n"
)

dataset_id = register_artifact(
    dataset_path,
    name="ligand-activity-v1",
    kind="dataset",
    metadata={"source": "ChEMBL", "n_rows": 4, "target": "IC50"},
)
print(f"1. Registered dataset: {dataset_id[:16]}...")

# ---- Step 2: Propose and approve a task ----
task_id = propose_task(
    title="Train random forest on ligand activity data",
    description="Fit an RF classifier to predict active/inactive ligands.",
    proposed_by="agent:discovery-loop",
    priority=5,
    metadata={"estimated_cost_usd": 0.0, "rationale": "Baseline model"},
)
print(f"2. Task proposed:  {task_id[:8]}...")

update_task_status(task_id, "approved", approved_by="human:alice")
print(f"   Task approved by human:alice")

# ---- Step 3: Start a tracked run ----
run_id = create_run(
    name="rf-ligand-activity-baseline",
    params={"n_estimators": 100, "max_depth": 5, "random_state": 42},
    input_ids=[dataset_id],
)
update_task_status(task_id, "running", run_id=run_id)
print(f"3. Run started:    {run_id[:8]}...")

# ---- Step 4: Simulate training and save a model ----
model_path = Path(tempfile.mktemp(suffix=".pkl"))
model_path.write_bytes(b"FAKE_MODEL_WEIGHTS_v1")  # placeholder

output_ids = finish_run(
    run_id,
    output_paths=[(model_path, "rf-baseline-v1", "model")],
    metrics={"accuracy": 0.87, "f1": 0.84, "auc_roc": 0.91},
)
update_task_status(task_id, "completed")
print(f"4. Run completed.  Outputs: {[oid[:12] for oid in output_ids]}")

# ---- Step 5: Query lineage ----
model_id = output_ids[0]
lineage = get_lineage(model_id)
print(f"\n5. Lineage for model {model_id[:12]}...")
print(json.dumps(lineage, indent=2, default=str)[:800])

# ---- Step 6: Show task log ----
print("\n6. Task log:")
for t in list_tasks():
    print(f"   [{t['status']:>9}]  {t['title']}")

# Cleanup
dataset_path.unlink(missing_ok=True)
model_path.unlink(missing_ok=True)

Database initialized.

1. Registered dataset: a7c3e9f1b2d04e8a...
2. Task proposed:  f91c2a3b...
   Task approved by human:alice
3. Run started:    d4e5f6a7...
4. Run completed.  Outputs: ['8b1a2c3d4e5f', '9f0e1d2c3b4a']
5. Lineage for model 8b1a2c3d4e5f...
{
  "type": "artifact",
  "info": {
    "id": "8b1a2c3d4e5f...",
    "name": "rf-baseline-v1",
    "kind": "model",
    ...
  },
  "parents": [
    {
      "role": "output",
      "node": {
        "type": "run",
        "info": {
          "name": "rf-ligand-activity-baseline",
          "git_hash": "a3be1fe...",
          "git_dirty": 0,
          ...
        },
        "parents": [
          {
            "role": "input",
            "node": {
              "type": "artifact",
              "info": {"name": "ligand-activity-v1", "kind": "dataset", ...}
            }
          }
        ]
      }
    }
  ]
}

6. Task log:
   [completed]  Train random forest on ligand activity data

A single lineage call surfaces every ancestor of the model: the run that produced it (with parameters and Git commit) and the input dataset. This chain is the Workbench's reproducibility guarantee, letting anyone trace a result back to its origins.

import mlflow

mlflow.set_experiment("ligand-activity")
with mlflow.start_run(run_name="rf-baseline"):
    mlflow.log_param("n_estimators", 100)
    mlflow.log_param("max_depth", 5)
    mlflow.log_metric("accuracy", 0.87)
    mlflow.log_metric("f1", 0.84)
    mlflow.log_artifact("data/ligand-activity-v1.csv")
    mlflow.sklearn.log_model(model, "rf-model")
