8.3 Human-AI Collaboration Patterns

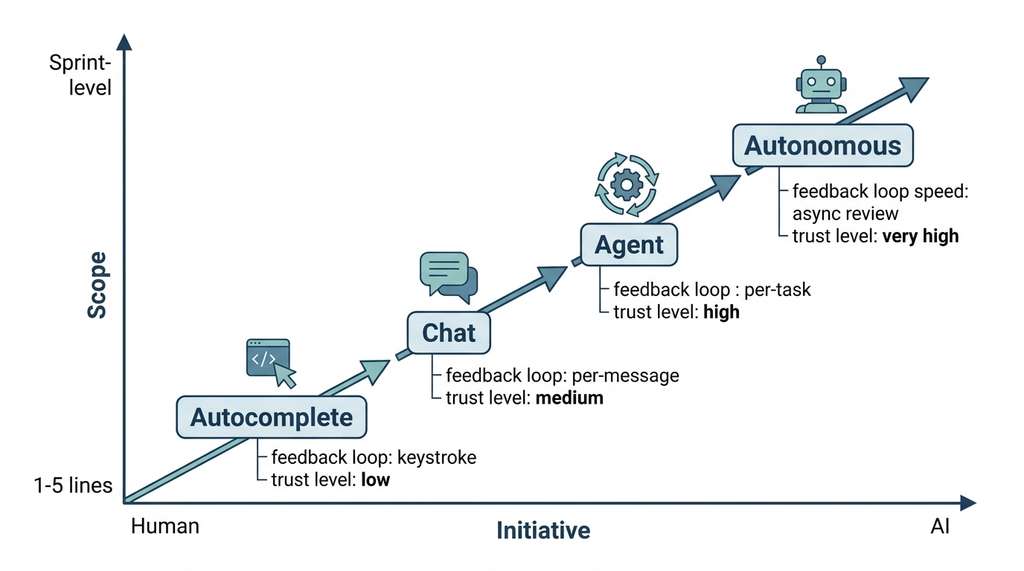

1. The Collaboration Spectrum

Choosing the wrong collaboration mode does not just slow a team down; it changes what the team builds. Early analyses of large-scale Copilot deployments suggest that developers who default to a single mode tend to produce more rework, miss design alternatives, and accumulate blind spots in the code they nominally "wrote." The patterns below make that cost visible and the remedy concrete.

The same developer who accepts an autocomplete suggestion every six seconds will spend twenty minutes negotiating a database schema with a chat assistant. Both interactions qualify as "AI-assisted coding." Two axes organize this range: the initiative axis (who decides what to do next) and the scope axis (how much code the AI produces per interaction). These axes define four canonical modes, shown in Figure 8.5. Figure 8.3.1 illustrates Collaboration Spectrum.

Mode 1: Autocomplete. The developer writes code; the AI suggests completions inline. Initiative stays with the developer. Scope is small: a single line or a short block. The developer accepts, rejects, or modifies each suggestion with a keystroke. This is the mode of GitHub Copilot's inline suggestions and Cursor's tab completion. Autocomplete excels at reducing keystrokes for boilerplate, Application Programming Interface (API) calls with predictable argument patterns, and repetitive code that follows a local pattern. It struggles with novel logic, cross-file reasoning, and anything requiring understanding of the broader system design.

Autocomplete runs continuously in the background of your editor as a token-level prediction system. It feeds the code surrounding your cursor (typically a few hundred lines of local context plus open-tab contents) into a language model that returns the most probable next tokens. It matters because it targets the highest-frequency, lowest-risk class of edits: boilerplate glue code, argument lists, and idiomatic patterns that consume a surprising share of typing time but carry little design ambiguity. On each keystroke (or brief pause), the editor sends the current prefix to a fast, small model optimized for latency under 200 ms. The model returns one or more candidate continuations ranked by likelihood. Use autocomplete when the code you need follows a well-established local pattern or API convention; switch to chat or agent mode whenever the next lines require reasoning about distant code, architectural decisions, or domain-specific logic the model has not seen in its immediate context.

Mode 2: Chat. The developer describes a task in natural language; the AI produces a response containing code, explanations, or both. Initiative is shared: the developer frames the problem, the AI proposes a solution, the developer evaluates and iterates. Scope varies from a single function to a multi-file design. Chat mode is the interface of Claude, ChatGPT, and Cursor's chat panel. It excels at explaining unfamiliar code, exploring design alternatives, and generating initial implementations that the developer then refines.

Mode 3: Agent. The developer provides a high-level goal (an issue, a feature specification, a failing test); the AI autonomously plans a sequence of actions, reads files, writes code, runs tests, and iterates. Initiative belongs to the AI during execution, but the developer retains approval authority over the final result. Scope can span an entire feature or bug fix. This is the mode of Claude Code, Codex CLI, and Cursor's agent mode. Agents excel at well-specified tasks with clear acceptance criteria (passing tests, matching a specification) and struggle with ambiguous requirements or tasks requiring subjective design judgment. In short: the right collaboration mode is not the most powerful one; it is the one whose scope matches the clarity of your specification.

Mode 4: Autonomous. The AI operates without real-time human supervision, picking up tasks from a queue (issue tracker, CI pipeline), executing them, and submitting results for asynchronous review. Initiative belongs entirely to the AI. Scope can span multiple issues or an entire sprint's worth of work. This mode is emerging in systems like Codex's autonomous agents and in the multi-agent software teams we explore in Chapter 17. The autonomous mode is the frontier; it demands high reliability, comprehensive test coverage, and robust guardrails. Continuous Integration (CI) pipelines serve as the primary guardrail in this mode.

from dataclasses import dataclass
from enum import Enum


class CollaborationMode(Enum):
    AUTOCOMPLETE = "autocomplete"
    CHAT = "chat"
    AGENT = "agent"
    AUTONOMOUS = "autonomous"


@dataclass
class ModeCharacteristics:
    """Characteristics of each human-AI collaboration mode."""
    mode: CollaborationMode
    initiative: str          # "human", "shared", "ai", "ai-full"
    typical_scope: str       # scope of each AI action
    feedback_loop: str       # how quickly human reviews AI output
    trust_required: str      # level of trust needed in AI output
    best_for: list[str]      # task types where this mode excels


COLLABORATION_MODES = [
    ModeCharacteristics(
        mode=CollaborationMode.AUTOCOMPLETE,
        initiative="human",
        typical_scope="1-5 lines",
        feedback_loop="immediate (keystroke)",
        trust_required="low",
        best_for=["boilerplate", "API calls", "repetitive patterns"],
    ),
    ModeCharacteristics(
        mode=CollaborationMode.CHAT,
        initiative="shared",
        typical_scope="1 function to 1 file",
        feedback_loop="per-message (seconds to minutes)",
        trust_required="medium",
        best_for=["exploration", "explanation", "prototyping",
                  "design discussion"],
    ),
    ModeCharacteristics(
        mode=CollaborationMode.AGENT,
        initiative="ai (with human approval)",
        typical_scope="1 feature or bug fix (multi-file)",
        feedback_loop="per-task (minutes to hours)",
        trust_required="high",
        best_for=["well-specified features", "bug fixes with tests",
                  "refactoring", "migration"],
    ),
    ModeCharacteristics(
        mode=CollaborationMode.AUTONOMOUS,
        initiative="ai (fully autonomous)",
        typical_scope="multiple tasks (sprint-level)",
        feedback_loop="asynchronous review (hours to days)",
        trust_required="very high",
        best_for=["CI-gated changes", "dependency updates",
                  "routine maintenance"],
    ),
]


def recommend_mode(task_description: str,
                   has_tests: bool,
                   is_well_specified: bool) -> CollaborationMode:
    """Recommend a collaboration mode based on task characteristics.

    This simple heuristic illustrates the decision factors;
    real systems would use richer signals.
    """
    if not is_well_specified:
        return CollaborationMode.CHAT  # need exploration first

    if has_tests and is_well_specified:
        return CollaborationMode.AGENT  # clear criteria, verifiable

    if is_well_specified:
        return CollaborationMode.CHAT   # specified but unverifiable

    return CollaborationMode.AUTOCOMPLETE  # fallback to inline help

This mode-switching ability gives rise to a recurring collaboration pattern we call explore-implement-polish: begin in chat mode to understand the problem and evaluate design alternatives, shift to agent mode to implement the chosen design against concrete acceptance criteria, then drop to autocomplete for final cleanup and stylistic consistency. Each phase uses the mode whose initiative and scope best match the task's current level of ambiguity. Recognizing this three-phase rhythm (and the variants that emerge in practice) is the core skill this section aims to build.

Fluid mode switching, however, depends on something that distinguishes the more autonomous modes from simple autocomplete: the ability of an AI to use tools that read, write, and execute code inside a real repository.

2. Tool-Augmented Code Generation

Agent-mode coding tools are distinguished from chat tools by their ability to use tools: read files, write files, execute shell commands, run tests, search codebases, and interact with version control. Tool use transforms the code model from a text generator into an actor that can observe the state of a repository, take actions, and observe the results.

The tool-use loop follows a pattern that will be familiar from Chapter 4's treatment of reasoning with actions:

1. Observe: The agent reads relevant files, inspects the directory structure, or examines test output.
2. Think: The model reasons about what it has observed and plans the next action.
3. Act: The agent executes a tool call: editing a file, running a command, or searching for a symbol.
4. Evaluate: The agent observes the result of its action and decides whether to continue, retry, or report completion.

Each cycle through this loop consumes tokens (for observation and reasoning) and latency (for tool execution). Efficient agents minimize the number of cycles by gathering information strategically and making larger, more confident edits. The repository graph structures from Section 8.2 directly serve this efficiency: a good repository map lets the agent skip the "explore randomly" phase and jump directly to relevant files.

from dataclasses import dataclass, field
from typing import Any


@dataclass
class ToolCall:
    """A single tool invocation by a coding agent."""
    tool_name: str        # "read_file", "write_file", "run_command", etc.
    arguments: dict       # tool-specific parameters
    result: str = ""      # populated after execution
    duration_ms: int = 0  # wall-clock time for execution


@dataclass
class AgentStep:
    """One step in the agent's observe-think-act-evaluate loop."""
    observation: str          # what the agent saw
    reasoning: str            # the agent's chain of thought
    tool_calls: list[ToolCall] = field(default_factory=list)
    evaluation: str = ""      # agent's assessment of the result


@dataclass
class AgentTrace:
    """Complete trace of an agent's work on a task."""
    task: str
    steps: list[AgentStep] = field(default_factory=list)
    outcome: str = ""         # "success", "failure", "partial"
    total_tokens: int = 0
    total_tool_calls: int = 0

    def add_step(self, step: AgentStep) -> None:
        self.steps.append(step)
        self.total_tool_calls += len(step.tool_calls)

    def summary(self) -> str:
        """Generate a human-readable summary of the agent's work."""
        lines = [f"Task: {self.task}",
                 f"Steps: {len(self.steps)}",
                 f"Tool calls: {self.total_tool_calls}",
                 f"Outcome: {self.outcome}", ""]
        for i, step in enumerate(self.steps, 1):
            lines.append(f"Step {i}:")
            lines.append(f"  Reasoning: {step.reasoning[:100]}...")
            for tc in step.tool_calls:
                lines.append(f"  Tool: {tc.tool_name}"
                             f"({tc.duration_ms}ms)")
            if step.evaluation:
                lines.append(f"  Evaluation: {step.evaluation[:80]}...")
        return "\n".join(lines)

3. Three Tools in Practice

The coding agent landscape in 2026 includes dozens of tools, but three represent the main architectural patterns: Claude Code (terminal-native agent), Codex CLI (sandboxed autonomous agent), and Cursor (IDE-integrated agent). Understanding their designs illuminates the trade-offs in building coding AI.

Claude Code operates in the developer's terminal with full access to the file system, shell, and git. It reads, writes, runs commands, and manages branches in the actual working environment. This maximizes capability but demands trust: the agent modifies real files. A permission system mitigates the risk; developers approve action categories and can review each operation before execution. The key architectural choice, no sandbox, means changes are immediately testable and observations always current.

Codex CLI (as of 2025, OpenAI also offers a cloud-hosted Codex agent integrated into ChatGPT, which extends this sandboxed model with asynchronous task queues and GitHub integration) takes the opposite approach: each task runs in a sandboxed environment (an isolated container or temporary directory that prevents the agent from modifying the developer's real files) where the agent can read, write, and execute freely without risk to the developer's working state. The sandbox is initialized from the repository state, and the agent's changes are presented as a diff for review. This design enables autonomous operation: the developer can assign multiple tasks and review results asynchronously, because sandbox isolation guarantees that one task cannot corrupt another. The trade-off is that the agent cannot observe real-time changes or interact with services (databases, APIs) that live outside the sandbox.

Cursor integrates AI into the Integrated Development Environment (IDE) itself, offering all four collaboration modes in a single interface: autocomplete (tab completion), chat (side panel), agent (Composer, renamed to "Agent" in early 2025), and inline editing (Cmd+K). Its key architectural choice is multi-model routing, where different models handle different tasks. Fast, small models handle autocomplete (where latency matters most); large, capable models handle agent-mode tasks (where accuracy matters most). Cursor also maintains a persistent index of the codebase, enabling instant symbol lookup and semantic search without re-parsing on each query.

4. Measuring Collaboration Effectiveness

How do we know if human-AI collaboration is working? Raw metrics like "lines of code generated" or "suggestions accepted" are misleading. A developer who accepts 80% of autocomplete suggestions might be writing trivial code, while one who accepts 15% might be using the suggestions as a starting point for complex implementations.

More meaningful metrics operate at the task level:

Core Effectiveness Metrics

Task completion time measures how long it takes to go from a specification to a working, tested implementation. This is the most directly relevant metric for productivity, but it requires careful baselines: the comparison should be against the same developer doing the same type of task without AI assistance.

Iteration count measures how many cycles of the generate-test-refine loop are needed. Fewer iterations suggest better first-attempt quality, which reduces both time and cognitive load.

Code quality metrics (test coverage, cyclomatic complexity, where cyclomatic complexity counts the number of independent execution paths through a function, lint violations, type-checking errors) measure whether the AI-generated code meets the project's standards. These are automatable and objective, making them suitable for continuous monitoring.

Rework rate measures how often AI-generated code is subsequently modified in the next commit or within a short time window. High rework rates suggest the AI output requires substantial human correction, reducing the net productivity gain.

@dataclass
class CollaborationMetrics:
    """Metrics for evaluating human-AI coding collaboration."""
    task_id: str
    mode: CollaborationMode
    completion_time_minutes: float
    iteration_count: int
    lines_generated: int
    lines_accepted: int           # after human review
    lines_modified: int           # human edits to AI output
    test_coverage_delta: float    # change in test coverage
    lint_violations: int
    rework_within_24h: int        # lines changed in next day

    @property
    def acceptance_rate(self) -> float:
        """Fraction of generated code accepted without modification."""
        if self.lines_generated == 0:
            return 0.0
        return self.lines_accepted / self.lines_generated

    @property
    def net_productivity(self) -> float:
        """Lines of accepted code per minute of developer time.

        Accounts for time spent reviewing and modifying AI output.
        """
        net_lines = self.lines_accepted - self.lines_modified
        if self.completion_time_minutes == 0:
            return 0.0
        return max(0, net_lines) / self.completion_time_minutes

    @property
    def quality_score(self) -> float:
        """Composite quality score (0 to 1).

        Combines test coverage improvement, lint cleanliness,
        and low rework rate.
        """
        coverage_score = min(1.0, max(0, self.test_coverage_delta) / 0.1)
        lint_score = 1.0 / (1.0 + self.lint_violations)
        rework_score = 1.0 / (1.0 + self.rework_within_24h / 10)
        return (coverage_score + lint_score + rework_score) / 3


def compare_modes(metrics: list[CollaborationMetrics]) -> str:
    """Compare collaboration modes across a set of completed tasks."""
    by_mode: dict[str, list[CollaborationMetrics]] = {}
    for m in metrics:
        by_mode.setdefault(m.mode.value, []).append(m)

    lines = ["Mode Comparison:"]
    for mode, tasks in sorted(by_mode.items()):
        avg_time = sum(t.completion_time_minutes for t in tasks) / len(tasks)
        avg_accept = sum(t.acceptance_rate for t in tasks) / len(tasks)
        avg_quality = sum(t.quality_score for t in tasks) / len(tasks)
        lines.append(
            f"  {mode:14s}: {len(tasks):3d} tasks, "
            f"avg {avg_time:.1f}min, "
            f"accept {avg_accept:.0%}, "
            f"quality {avg_quality:.2f}"
        )
    return "\n".join(lines)

import litellm

# Same interface, different models for different tasks
# Fast model for autocomplete-style completions
quick = litellm.completion(
    model="claude-haiku-4-5-20250620",
    messages=[{"role": "user", "content": "Complete: def sort("}],
    max_tokens=50,
)

# Powerful model for agent-style reasoning
deep = litellm.completion(
    model="claude-sonnet-4-20250514",
    messages=[{"role": "user", "content": spec_prompt}],
    max_tokens=4000,
)

Metrics can tell us whether collaboration is productive in aggregate, but they leave open a harder, more immediate question: how does a developer decide, in the moment, whether to trust a particular piece of AI-generated code?

5. The Trust Calibration Problem

Unlike a library or framework whose behavior can be inspected through source code, an AI model's reasoning is opaque, so the developer cannot simply read the implementation to decide whether to trust a suggestion. The deepest challenge in human-AI coding collaboration is therefore trust calibration: the developer must learn when to trust the AI's output and when to verify carefully. Under-trust wastes the AI's capability (the developer manually rewrites correct code). Over-trust introduces bugs (the developer accepts incorrect code without review).

Trust calibration is task-dependent. For well-understood patterns (Create, Read, Update, Delete (CRUD) endpoints, serialization logic, test boilerplate), AI output is highly reliable and can be trusted with minimal review. For novel algorithms, security-sensitive code, or complex state management, AI output requires careful verification regardless of how confident the model appears. The model's expressed confidence does not reliably predict correctness in practice; it reflects token-level likelihood, which correlates with but does not equal semantic correctness.

Effective trust calibration follows three principles:

1. Verify through tests, not through reading. Running the code is more reliable than reading the code. A comprehensive test suite is the most effective trust mechanism.
2. Calibrate on experience. Track the AI's error rate on different task types in your specific codebase. Trust is earned, not assumed.
3. Increase autonomy gradually. Start with autocomplete, move to chat, then to agent mode as you build confidence in the tool's behavior on your codebase.

Exercises

1. (Conceptual) A team decides to use agent mode for all coding tasks to maximize productivity. Identify three categories of tasks where this strategy would likely produce worse outcomes than chat mode or manual coding. Explain why for each category.
2. (Coding) Implement a TrustCalibrator class that tracks acceptance rate, rework rate, and test-pass rate for AI-generated code across different task categories (e.g., "endpoint", "algorithm", "test", "refactoring"). After 20 tasks, it should recommend whether to increase or decrease autonomy for each category. Write tests for the calibrator.
3. (Analysis) Read the SWE-bench leaderboard at swebench.com. Compare the top three agent architectures. For each, identify whether they use a sandboxed or unsandboxed approach, how many tool-call rounds they average per issue, and what localization strategy they employ. Summarize the trade-offs.
