14.3 Building Architecture Decision Records

1. What Is an Architecture Decision Record?

An ADR is the answer to a question every team eventually faces: when a critical production outage forces you to re-evaluate a two-year-old database choice, who remembers whether the team picked PostgreSQL over DynamoDB for latency, cost, or simply because the lead developer knew it best? An Architecture Decision Record is a short document that captures a single architectural decision along with its context and consequences. Michael Nygard proposed the format in 2011, and it has since become widely adopted in software engineering. Each ADR contains five sections:

Architectural decisions rank among the most expensive to reverse, yet their rationale is the first knowledge lost as teams change. When a decision is made, the team writes a short, structured text file in version control that records the context, options evaluated, choice made, and expected consequences. Use an ADR whenever a decision would be costly to undo (component boundaries, communication protocols, data storage strategies); for easily reversible choices, code comments or commit messages suffice.

• Title: A short noun phrase describing the decision ("Use event-driven communication between ingestion and analysis services").
• Status: One of Proposed, Accepted, Deprecated, or Superseded. An ADR is immutable once accepted; if the decision changes, a new ADR supersedes the old one.
• Context: The forces at play, including the requirements driving the decision, the quality attributes at stake, and any constraints (technical, organizational, regulatory).
• Decision: The architectural choice made, stated clearly and concisely.
• Consequences: What follows from the decision, both positive (quality attributes improved) and negative (quality attributes sacrificed, new complexity introduced).

The power of ADRs comes from their cumulative effect. A project with 20 ADRs has a largely complete decision history: anyone can trace the evolution of the architecture by reading them in order. Looking up an ADR takes minutes; without one, the NASA Curiosity rover team estimated that a single anomaly review during Entry, Descent, and Landing would have consumed weeks of reverse-engineering under mission-critical time pressure. When a new team member asks "why do we use Kafka instead of direct HTTP calls?", the answer is ADR-007, not a tribal memory that evaporates when people change teams. In short: the architecture is the decision; the ADR is the proof that the decision was rational.

2. Structuring ADRs in Python

With the structure and purpose of ADRs established, the next step is to encode that structure in code so the discovery pipeline can generate and validate records automatically.

To generate ADRs programmatically, we define a Pydantic model that enforces the standard ADR structure. This model serves as both a validation schema for LLM-generated ADRs and a data structure for the Discovery Workbench.

from pydantic import BaseModel, Field
from datetime import date
from enum import Enum
from typing import Optional


class ADRStatus(str, Enum):
    PROPOSED = "Proposed"
    ACCEPTED = "Accepted"
    DEPRECATED = "Deprecated"
    SUPERSEDED = "Superseded"


class QualityImpact(BaseModel):
    """Impact of a decision on a single quality attribute."""
    attribute: str = Field(description="Quality attribute name")
    direction: str = Field(description="'improved', 'degraded', or 'neutral'")
    explanation: str = Field(description="Why this attribute is affected")


class AlternativeConsidered(BaseModel):
    """A candidate architecture that was evaluated but not selected."""
    name: str
    style: str
    summary: str = Field(description="One-sentence description")
    reason_rejected: str = Field(
        description="Why this alternative was not selected"
    )
    metrics: dict[str, float] = Field(
        description="Quality attribute scores for this alternative"
    )


class ArchitectureDecisionRecord(BaseModel):
    """A complete Architecture Decision Record."""
    adr_id: str = Field(description="Unique identifier, e.g. 'ADR-001'")
    title: str = Field(description="Short noun phrase describing the decision")
    date: date = Field(default_factory=date.today)
    status: ADRStatus = Field(default=ADRStatus.PROPOSED)
    context: str = Field(
        description="The forces at play: requirements, constraints, "
        "quality priorities"
    )
    decision: str = Field(
        description="The architectural choice, stated clearly"
    )
    alternatives: list[AlternativeConsidered] = Field(
        description="Other candidates that were evaluated"
    )
    quality_impacts: list[QualityImpact] = Field(
        description="How the decision affects each quality attribute"
    )
    consequences_positive: list[str] = Field(
        description="Benefits of this decision"
    )
    consequences_negative: list[str] = Field(
        description="Costs and risks of this decision"
    )
    related_requirements: list[str] = Field(
        default_factory=list,
        description="Requirement IDs addressed by this decision"
    )
    supersedes: Optional[str] = Field(
        default=None,
        description="ADR ID this record supersedes, if any"
    )
    mermaid_diagram: str = Field(
        default="",
        description="Mermaid diagram of the selected architecture"
    )  # Mermaid is a text-based diagramming language rendered by tools like GitHub and Log4brains

3. Generating ADRs from Pipeline Results

Teams that skip this step pay for it later: when a post-incident review demands justification for a two-year-old storage decision, the only evidence is a Slack thread whose key participants have moved on, and the review stalls for days while engineers reconstruct rationale from code archaeology.

The architecture discovery pipeline from Section 14.2 produces all the raw material for an ADR: candidates with metrics, the Pareto frontier (the set of candidates where no single alternative scores better on every quality metric simultaneously), and the selected architecture. The next step transforms this output into a structured ADR. The LLM generates the narrative sections (context, decision statement, consequence explanations), while the pipeline data populates the quantitative sections (metrics, alternatives) directly.

from anthropic import Anthropic

client = Anthropic()


def generate_adr(
    pipeline_result: dict,
    requirements: list[str],
    quality_weights: dict[str, float],
    adr_number: int = 1,
) -> ArchitectureDecisionRecord:
    """Generate an ADR from architecture discovery pipeline results.

    Combines LLM-generated narrative with pipeline-computed metrics
    to produce a complete, validated ADR.
    """
    selected = pipeline_result["candidates"][pipeline_result["selected_index"]]
    non_selected = [
        c for i, c in enumerate(pipeline_result["candidates"])
        if i != pipeline_result["selected_index"]
    ]

    # Build alternatives from non-selected candidates
    alternatives = [
        AlternativeConsidered(
            name=c["name"],
            style=c["style"],
            summary=c.get("rationale", "")[:200],
            reason_rejected=(
                "Dominated on the Pareto frontier"
                if not c["on_frontier"]
                else "On Pareto frontier but further from stakeholder "
                     "preference weights"
            ),
            metrics=c["metrics"],
        )
        for c in non_selected
    ]

    # Use LLM for narrative sections
    narrative_prompt = f"""Write the narrative sections of an Architecture
Decision Record for the following selection.

## Selected Architecture
Name: {selected['name']}
Style: {selected['style']}
Metrics: {json.dumps(selected['metrics'], indent=2)}

## Requirements Addressed
{chr(10).join(f'- {r}' for r in requirements)}

## Quality Priorities
{chr(10).join(f'- {k}: {v}' for k, v in quality_weights.items())}

## Alternatives Considered
{chr(10).join(f'- {a.name} ({a.style}): {a.reason_rejected}'
              for a in alternatives)}

Write:
1. A CONTEXT paragraph (3-4 sentences) explaining the forces at play.
2. A DECISION statement (1-2 sentences) stating the choice clearly.
3. A list of 3-4 POSITIVE consequences.
4. A list of 2-3 NEGATIVE consequences (honest tradeoffs).
5. A list of QUALITY IMPACTS: for each of maintainability, performance,
   scalability, deployability, state whether it is improved, degraded,
   or neutral, with a one-sentence explanation.

Return as JSON with keys: context, decision, positive, negative, impacts."""

    message = client.messages.create(
        model="claude-sonnet-4-20250514",
        max_tokens=2048,
        messages=[{"role": "user", "content": narrative_prompt}],
    )

    # Parse narrative response
    response_text = message.content[0].text
    if "```json" in response_text:
        json_str = response_text.split("```json")[1].split("```")[0]
    elif "```" in response_text:
        json_str = response_text.split("```")[1].split("```")[0]
    else:
        json_str = response_text

    narrative = json.loads(json_str)

    # Build quality impacts from LLM response
    quality_impacts = [
        QualityImpact(
            attribute=impact.get("attribute", "unknown"),
            direction=impact.get("direction", "neutral"),
            explanation=impact.get("explanation", ""),
        )
        for impact in narrative.get("impacts", [])
    ]

    # Assemble the complete ADR
    adr = ArchitectureDecisionRecord(
        adr_id=f"ADR-{adr_number:03d}",
        title=f"Use {selected['style']} architecture for "
              f"{pipeline_result['system_name']}",
        status=ADRStatus.PROPOSED,
        context=narrative.get("context", ""),
        decision=narrative.get("decision", ""),
        alternatives=alternatives,
        quality_impacts=quality_impacts,
        consequences_positive=narrative.get("positive", []),
        consequences_negative=narrative.get("negative", []),
        related_requirements=[f"REQ-{i+1:03d}" for i in range(len(requirements))],
        mermaid_diagram=selected.get("mermaid", ""),
    )

    return adr

4. Rendering ADRs to Markdown and HTML

ADRs need to be readable by humans, not just parseable by machines. We render each ADR to Markdown (for version control in a Git repository) and to HTML (for the Discovery Workbench dashboard). The Markdown format follows the widely adopted convention (the five-section structure described above, attributed to Michael Nygard) of storing ADRs in a docs/decisions/ directory with sequential numbering.

from pathlib import Path


def render_adr_markdown(adr: ArchitectureDecisionRecord) -> str:
    """Render an ADR to Markdown following the Nygard format."""
    lines = [
        f"# {adr.adr_id}: {adr.title}",
        "",
        f"**Date**: {adr.date.isoformat()}",
        f"**Status**: {adr.status.value}",
        "",
    ]

    if adr.supersedes:
        lines.append(f"**Supersedes**: {adr.supersedes}")
        lines.append("")

    # Context
    lines.extend(["## Context", "", adr.context, ""])

    # Decision
    lines.extend(["## Decision", "", adr.decision, ""])

    # Alternatives Considered
    lines.extend(["## Alternatives Considered", ""])
    for alt in adr.alternatives:
        lines.append(f"### {alt.name} ({alt.style})")
        lines.append("")
        lines.append(alt.summary)
        lines.append("")
        lines.append(f"**Rejected because**: {alt.reason_rejected}")
        lines.append("")
        # Metrics table
        lines.append("| Attribute | Score |")
        lines.append("|-----------|-------|")
        for attr, score in sorted(alt.metrics.items()):
            lines.append(f"| {attr} | {score:.3f} |")
        lines.append("")

    # Quality Impacts
    lines.extend(["## Quality Impacts", ""])
    lines.append("| Attribute | Impact | Explanation |")
    lines.append("|-----------|--------|-------------|")
    for impact in adr.quality_impacts:
        emoji = {"improved": "+", "degraded": "-", "neutral": "="}
        symbol = emoji.get(impact.direction, "?")
        lines.append(
            f"| {impact.attribute} | {symbol} {impact.direction} "
            f"| {impact.explanation} |"
        )
    lines.append("")

    # Consequences
    lines.extend(["## Consequences", ""])
    lines.append("### Positive")
    for pos in adr.consequences_positive:
        lines.append(f"- {pos}")
    lines.append("")
    lines.append("### Negative")
    for neg in adr.consequences_negative:
        lines.append(f"- {neg}")
    lines.append("")

    # Related Requirements
    if adr.related_requirements:
        lines.extend(["## Related Requirements", ""])
        for req_id in adr.related_requirements:
            lines.append(f"- {req_id}")
        lines.append("")

    # Architecture Diagram
    if adr.mermaid_diagram:
        lines.extend([
            "## Architecture Diagram", "",
            "```mermaid",
            adr.mermaid_diagram,
            "```", "",
        ])

    return "\n".join(lines)


def save_adr(adr: ArchitectureDecisionRecord, output_dir: str) -> Path:
    """Save an ADR as a Markdown file in the decisions directory."""
    path = Path(output_dir)
    path.mkdir(parents=True, exist_ok=True)

    filename = f"{adr.adr_id.lower().replace('-', '_')}.md"
    filepath = path / filename

    content = render_adr_markdown(adr)
    filepath.write_text(content, encoding="utf-8")

    return filepath


# Example usage
adr_path = save_adr(adr, "docs/decisions")
print(f"ADR saved to: {adr_path}")
# Output: ADR saved to: docs/decisions/adr_001.md

5. The Complete Architecture Discovery Assistant

The full Architecture Discovery Assistant is a single function that takes requirements and quality priorities as input and produces a complete set of evaluated, visualized, and documented architecture candidates with a recommended selection and ADR.

from dataclasses import dataclass


@dataclass
class ArchitectureDiscoveryResult:
    """Complete output of the Architecture Discovery Assistant."""
    pipeline_result: dict          # raw pipeline output
    selected_architecture: dict    # the chosen candidate
    adr: ArchitectureDecisionRecord  # the generated ADR
    adr_markdown: str              # rendered Markdown
    comparison_table: str          # formatted comparison
    frontier_summary: str          # Pareto frontier explanation


def discover_architecture(
    requirements: list[str],
    quality_weights: dict[str, float],
    num_candidates: int = 3,
    output_dir: str = "docs/decisions",
) -> ArchitectureDiscoveryResult:
    """Run the complete Architecture Discovery Assistant.

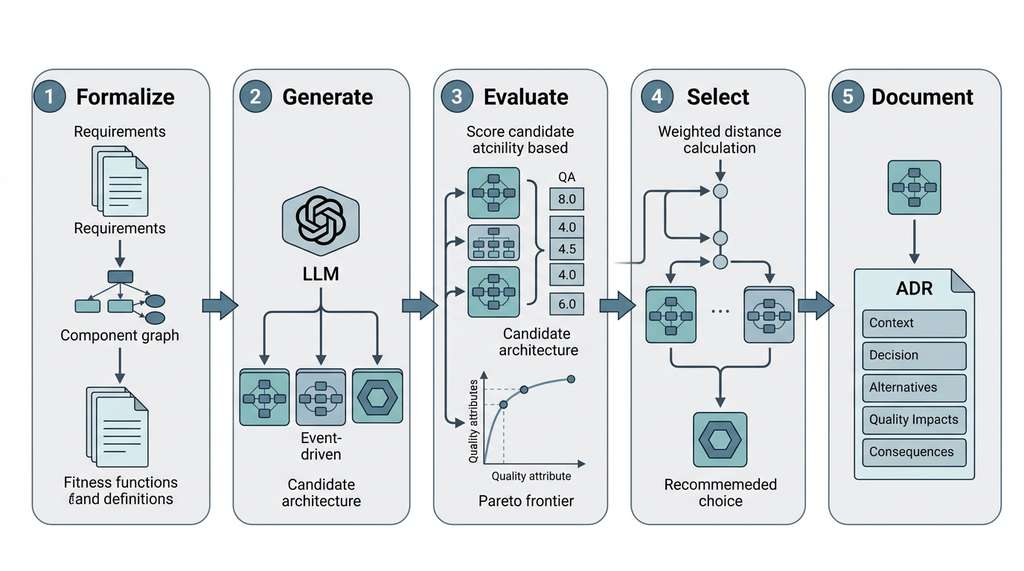

    This is the top-level entry point that orchestrates:
    1. Candidate generation (LLM)
    2. Quality evaluation (fitness functions)
    3. Pareto analysis (multi-objective optimization)
    4. Selection (using the weighted-distance-to-ideal method from Section 14.2, which picks the frontier candidate closest to a perfect score on all quality attributes, scaled by stakeholder weights)
    5. ADR generation (LLM + pipeline data)
    6. Rendering and persistence

    Args:
        requirements: Validated requirement strings from Chapter 13.
        quality_weights: Stakeholder priorities per quality attribute.
        num_candidates: Number of candidates to generate (2-5).
        output_dir: Directory for saving ADR files.

    Returns:
        ArchitectureDiscoveryResult with all outputs.
    """
    # Phase 1: Generate and evaluate
    pipeline_result = run_architecture_discovery(
        requirements, quality_weights, num_candidates
    )

    # Phase 2: Build comparison table
    candidates = pipeline_result["candidates"]
    header = f"{'Candidate':<25} {'Style':<15}"
    attrs = sorted(candidates[0]["metrics"].keys())
    header += "".join(f" {a:>14}" for a in attrs)
    header += "  Pareto?"

    rows = [header, "-" * len(header)]
    for c in candidates:
        row = f"{c['name']:<25} {c['style']:<15}"
        row += "".join(f" {c['metrics'][a]:>14.3f}" for a in attrs)
        row += f"  {'  YES' if c['on_frontier'] else '   no'}"
        rows.append(row)
    comparison_table = "\n".join(rows)

    # Phase 3: Summarize frontier
    frontier_candidates = [c for c in candidates if c["on_frontier"]]
    frontier_summary = (
        f"The Pareto frontier contains {len(frontier_candidates)} "
        f"candidate(s): "
        + ", ".join(c["name"] for c in frontier_candidates)
        + ". "
    )
    selected = candidates[pipeline_result["selected_index"]]
    frontier_summary += (
        f"Based on stakeholder weights, '{selected['name']}' "
        f"({selected['style']}) is the recommended architecture."
    )

    # Phase 4: Generate ADR
    adr = generate_adr(
        pipeline_result, requirements, quality_weights
    )
    adr_markdown = render_adr_markdown(adr)

    # Phase 5: Save ADR to disk
    save_adr(adr, output_dir)

    return ArchitectureDiscoveryResult(
        pipeline_result=pipeline_result,
        selected_architecture=selected,
        adr=adr,
        adr_markdown=adr_markdown,
        comparison_table=comparison_table,
        frontier_summary=frontier_summary,
    )

# Requirements from the Chapter 13 pipeline
lab_requirements = [
    "Ingest experimental data from 15+ instrument types at up to 10 GB/hour",
    "Run configurable analysis pipelines that researchers update weekly",
    "Serve results through a web dashboard with sub-second query response",
    "Enforce Institutional Review Board (IRB) access controls on sensitive datasets",
    "Scale to 3x current instrument count within 12 months",
    "Support independent deployment of ingestion and analysis components",
]

# Stakeholder quality priorities
lab_weights = {
    "maintainability": 0.20,
    "performance": 0.20,
    "scalability": 0.35,
    "deployability": 0.25,
}

# Run the assistant
result = discover_architecture(
    requirements=lab_requirements,
    quality_weights=lab_weights,
    num_candidates=3,
    output_dir="docs/decisions",
)

# Display results
print("=== Comparison Table ===")
print(result.comparison_table)
print()
print("=== Pareto Frontier ===")
print(result.frontier_summary)
print()
print("=== ADR Preview ===")
print(result.adr_markdown[:500])

# Output (representative):
# === Comparison Table ===
# Candidate                 Style           deployability   maintainability
#     performance     scalability  Pareto?
# -------------------------------------------------------------------------
# Event-Driven Pipeline     event_driven            0.833         0.767
#           0.750           0.633     no
# Microservices Platform    microservices            0.906         0.839
#           0.725           0.821    YES
# Hexagonal Monolith        hexagonal               0.917         0.833
#           0.875           0.800    YES
#
# === Pareto Frontier ===
# The Pareto frontier contains 2 candidate(s): Microservices Platform,
# Hexagonal Monolith. Based on stakeholder weights, 'Microservices Platform'
# (microservices) is the recommended architecture.

6. ADR Lifecycle and Evolution

The pipeline above produces a single ADR for a single moment in time, but real architectures do not stay frozen; requirements shift, teams grow, and the forces that shaped the original decision change.

An ADR is immutable once accepted. When the architecture evolves (as it inevitably will), the team writes a new ADR that supersedes the old one. The superseding ADR references the original by ID, explains what changed, and documents the new decision with fresh context and metrics. This creates an audit trail of architectural evolution.

def supersede_adr(
    original_adr: ArchitectureDecisionRecord,
    new_pipeline_result: dict,
    new_requirements: list[str],
    new_weights: dict[str, float],
    adr_number: int,
) -> ArchitectureDecisionRecord:
    """Create a new ADR that supersedes an existing one.

    Marks the original as Deprecated and creates a new ADR
    with a reference to the superseded record.
    """
    # Mark original as superseded
    original_adr.status = ADRStatus.SUPERSEDED

    # Generate new ADR
    new_adr = generate_adr(
        new_pipeline_result, new_requirements, new_weights, adr_number
    )
    new_adr.supersedes = original_adr.adr_id
    new_adr.context = (
        f"This decision supersedes {original_adr.adr_id} "
        f"('{original_adr.title}'). " + new_adr.context
    )

    return new_adr


# Example: requirements changed, re-run discovery
updated_requirements = lab_requirements + [
    "Support real-time streaming analytics on incoming instrument data",
    "Enable cross-instrument correlation queries across all data stores",
]

updated_weights = {
    "maintainability": 0.15,
    "performance": 0.30,  # increased: real-time streaming
    "scalability": 0.35,
    "deployability": 0.20,
}

# The new pipeline might select a different architecture
# because performance weight increased
new_result = run_architecture_discovery(
    updated_requirements, updated_weights, num_candidates=3
)

superseding_adr = supersede_adr(
    result.adr, new_result, updated_requirements, updated_weights, adr_number=2
)
print(f"New ADR: {superseding_adr.adr_id}, supersedes {superseding_adr.supersedes}")
# Output: New ADR: ADR-002, supersedes ADR-001

7. Integration with the Discovery Workbench

Individual ADRs and their evolution chains gain their full value when connected to the larger system that tracks requirements, implementations, and tests.

The Architecture Discovery Assistant becomes a component of the Discovery Workbench that was introduced in Chapter 6 and has been growing across Part II. The integration connects three flows:

1. Requirements to Architecture: The requirement traceability matrix from Chapter 13 feeds directly into the architecture generation prompt. Each ADR references the requirement IDs it addresses, extending the traceability chain.
2. Architecture to Implementation: The selected architecture's component graph defines the scaffolding for Chapter 15 (Algorithm Discovery) and Chapter 16 (AI-Assisted Implementation). Each component becomes a site where algorithm selection and code generation occur.
3. Architecture to Testing: The fitness functions defined in this chapter become architectural fitness tests (see Chapter 18: AI-Assisted Testing), running in CI/CD to detect architectural drift.

class ArchitectureDiscoveryWorkbench:
    """Discovery Workbench component for architecture discovery.

    Manages the lifecycle of architecture candidates, evaluations,
    and ADRs, connecting to the requirement and implementation pipelines.
    """

    def __init__(self, project_name: str, decisions_dir: str = "docs/decisions"):
        self.project_name = project_name
        self.decisions_dir = decisions_dir
        self.adrs: list[ArchitectureDecisionRecord] = []
        self.current_architecture: Optional[dict] = None
        self._adr_counter = 0

    def discover(
        self,
        requirements: list[str],
        quality_weights: dict[str, float],
        num_candidates: int = 3,
    ) -> ArchitectureDiscoveryResult:
        """Run architecture discovery and record the result."""
        self._adr_counter += 1
        result = discover_architecture(
            requirements, quality_weights, num_candidates, self.decisions_dir
        )
        self.adrs.append(result.adr)
        self.current_architecture = result.selected_architecture
        return result

    def evolve(
        self,
        new_requirements: list[str],
        new_weights: dict[str, float],
    ) -> ArchitectureDiscoveryResult:
        """Re-run discovery with updated requirements, superseding
        the current ADR."""
        if not self.adrs:
            return self.discover(new_requirements, new_weights)

        self._adr_counter += 1
        new_pipeline = run_architecture_discovery(
            new_requirements, new_weights, num_candidates=3
        )
        new_adr = supersede_adr(
            self.adrs[-1], new_pipeline,
            new_requirements, new_weights, self._adr_counter
        )
        self.adrs.append(new_adr)
        save_adr(new_adr, self.decisions_dir)

        selected = new_pipeline["candidates"][new_pipeline["selected_index"]]
        self.current_architecture = selected

        return ArchitectureDiscoveryResult(
            pipeline_result=new_pipeline,
            selected_architecture=selected,
            adr=new_adr,
            adr_markdown=render_adr_markdown(new_adr),
            comparison_table="",
            frontier_summary="",
        )

    def get_component_list(self) -> list[str]:
        """Return component names from the current architecture.

        Used by downstream pipeline stages (algorithm discovery,
        implementation) to know what components to populate.
        """
        if not self.current_architecture:
            return []
        return [
            c["name"]
            for c in self.current_architecture.get("components", [])
            if isinstance(c, dict)
        ]

    def get_decision_history(self) -> list[dict]:
        """Return a summary of all ADRs for the project timeline."""
        return [
            {
                "id": adr.adr_id,
                "title": adr.title,
                "date": adr.date.isoformat(),
                "status": adr.status.value,
                "supersedes": adr.supersedes,
            }
            for adr in self.adrs
        ]


# Usage in the Discovery Workbench
workbench = ArchitectureDiscoveryWorkbench("Lab Data Platform")

# Initial discovery
initial_result = workbench.discover(lab_requirements, lab_weights)
print(f"Components: {workbench.get_component_list()}")
print(f"ADR count: {len(workbench.adrs)}")

# Later: requirements evolve, architecture evolves with them
evolved_result = workbench.evolve(updated_requirements, updated_weights)
print(f"Decision history: {workbench.get_decision_history()}")

8. Summary: The Architecture Discovery Pipeline

Figure 14.5 shows the end-to-end flow of the architecture discovery pipeline, from validated requirements through candidate generation, evaluation, selection, and ADR production. Each stage feeds its output into the next, and the final ADR links back to the requirements that initiated the process.

This chapter has built a complete architecture discovery pipeline that transforms requirements into documented, evaluated, Pareto-analyzed architectural decisions. The pipeline consists of five stages. Figure 14.3.1 illustrates Architecture Discovery Pipeline end-to-end flow.

1. Formalize (Section 14.1): Represent architectural styles as graph topologies and quality attributes as measurable fitness functions.
2. Generate (Section 14.2): Use LLMs with structured output schemas to produce diverse candidate architectures from requirements.
3. Evaluate (Section 14.2): Convert candidates to component graphs, compute quality metrics, and identify the Pareto frontier.
4. Select (Section 14.2): Use stakeholder-weighted distance to the ideal point to recommend a candidate from the frontier.
5. Document (Section 14.3): Generate an ADR that captures context, alternatives, metrics, tradeoffs, and rationale, persisted as version-controlled Markdown.

Each stage produces artifacts that feed into downstream chapters: component graphs for Chapter 15, deployment topologies for Chapter 21, fitness functions for Chapter 18, and ADRs for the project knowledge base queried by the research agents in Chapter 40.

Exercises

1. Conceptual: An ADR states "we chose microservices for scalability" but the fitness function shows the hexagonal architecture scored equally well on scalability. What is wrong with this ADR, and how would you fix it? What does this reveal about the importance of quantitative evidence in architectural documentation?
2. Coding: Extend the ArchitectureDiscoveryWorkbench to include a validate_conformance method that takes a codebase path, uses static analysis (e.g., import graph extraction with ast module) to recover the actual architecture, and compares it against the architecture in the most recent accepted ADR. Report any edges in the actual graph that violate the intended architecture's style constraints.
3. Analysis: Generate ADRs for two different systems: a real-time trading platform (performance and reliability weighted highest) and a content management system (maintainability and deployability weighted highest). Compare the selected architectures and their ADRs. Do the fitness functions correctly reflect the different priorities? Where do the metrics fail to capture important quality attributes?
