55.1 Laboratory Automation Infrastructure

1. The Laboratory Automation Stack

When a pharmaceutical team needs to screen 10,000 compounds per week, every manual step that takes a technician two minutes adds up to 333 hours of human labor, turning a one-week campaign into a months-long slog. The layered architecture below is what makes that throughput physically achievable.

When a robotic arm drops a microplate at 2 a.m. because the gripper calibration drifted by half a millimeter, no amount of brilliant AI planning can salvage the experiment. The reliability of autonomous science depends less on the intelligence at the top of the stack than on the infrastructure underneath it. Laboratory automation arranges into four layers, each abstracting the one below it, as Figure 55.1 illustrates. At the bottom, actuators (motors, pumps, syringes) move physical matter. Above them, instruments (liquid handlers, plate readers, spectrometers) combine actuators with sensors into functional units. The orchestration layer schedules instrument operations into workflows, handling timing dependencies and error recovery. At the top, the intelligence layer (our AI planner) decides what to do next based on accumulated results. Figure 55.1.1 illustrates the four-layer laboratory automation stack.

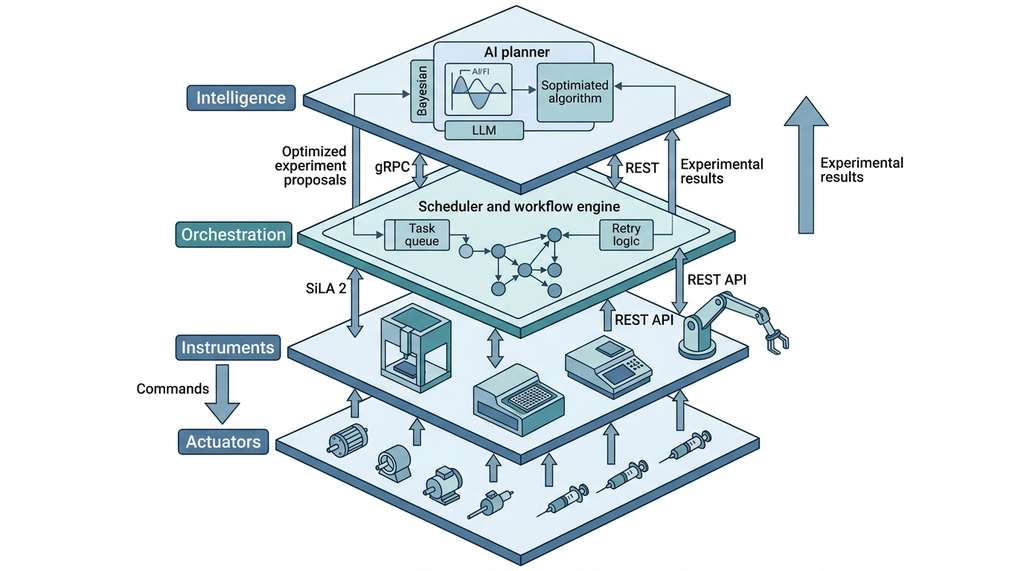

The laboratory automation stack separates physical motion from scientific decision-making through well-defined interfaces at each level. Without this separation, every change to an instrument driver would force a rewrite of the AI planner, and every new AI strategy would require re-engineering the hardware integration. Each layer exposes a standardized API to the layer above it. An instrument exposes "aspirate 10 uL" rather than "move stepper motor 400 steps," so upper layers never need to know the details below. Use this layered approach whenever you integrate more than one instrument or anticipate swapping components. For single-instrument setups with no plans to scale, a monolithic script that directly controls the hardware may be simpler.

This four-layer stack mirrors the software architecture from Chapter 6: actuators correspond to hardware drivers, instruments to service modules, orchestration to the workflow engine, and intelligence to the decision layer. The parallel is not accidental. Laboratory automation software evolved from industrial process control, inheriting its layered architecture.

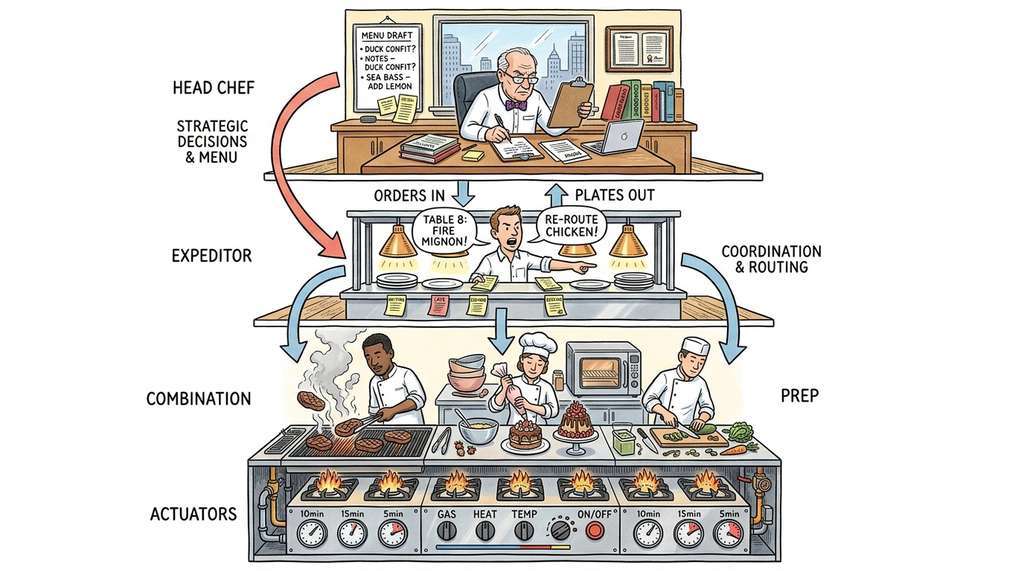

Mental Model

Think of the laboratory automation stack like a restaurant kitchen. The actuators are the individual burners, knobs, and timers on the stove. The instruments are the stations: the grill station, the pastry station, the prep station, each combining several tools into a functional unit. The orchestration layer is the expeditor (the person calling orders and timing courses so that every dish for a table arrives together, rerouting work when a station falls behind). The intelligence layer is the head chef deciding the menu and adjusting tonight's specials based on what ingredients arrived and what sold well yesterday. Just as a head chef never reaches over to adjust a burner directly (that would bypass the station cook and the expeditor, creating chaos), the AI planner never sends raw motor commands. Each layer trusts the one below it to handle its own complexity.

2. Robotic Platforms and Liquid Handling

The workhorse of high-throughput experimentation is the liquid handler: a Cartesian robot (X-Y-Z gantry with a pipetting head) that dispenses precise volumes of liquid into multiwell plates. Modern liquid handlers typically achieve volumetric precision of better than 1% at microliter volumes and better than 5% at nanoliter volumes. Key platforms include the Hamilton STAR, Beckman Coulter Biomek, and Opentrons OT-2 (Opentrons released the higher-throughput Flex platform in 2023; the OT-2 remains widely used in academic SDLs).

The Opentrons OT-2 stands out because its control software is open-source Python: each physical operation (aspirate, dispense, move to well) is a method call rather than a vendor-specific script. An AI planner can therefore generate executable instrument commands directly, making the OT-2 a natural fit for SDL integration.

The following Python class models a simplified liquid handler, capturing the essential operations without requiring physical hardware. In short: automate the plumbing so the science can run while you sleep.

"""Simulated liquid handler with the core operations of a real platform.

Models volumetric operations on multiwell plates with realistic
constraints: dead volume, maximum aspiration, tip tracking.
"""
from dataclasses import dataclass, field
from typing import Optional
import numpy as np


@dataclass
class Well:
    """Single well in a multiwell plate."""
    row: int
    col: int
    max_volume_ul: float = 200.0    # standard 96-well plate
    current_volume_ul: float = 0.0
    contents: dict = field(default_factory=dict)  # solute -> concentration

    @property
    def address(self) -> str:
        """Human-readable well address, e.g., 'A1', 'H12'."""
        return f"{chr(65 + self.row)}{self.col + 1}"


@dataclass
class Plate:
    """Multiwell plate (96-well default)."""
    rows: int = 8
    cols: int = 12
    wells: dict = field(default_factory=dict)

    def __post_init__(self):
        for r in range(self.rows):
            for c in range(self.cols):
                self.wells[(r, c)] = Well(row=r, col=c)

    def well(self, address: str) -> Well:
        """Look up well by address string, e.g., 'A1'."""
        row = ord(address[0].upper()) - 65
        col = int(address[1:]) - 1
        return self.wells[(row, col)]


class LiquidHandler:
    """Simulated liquid handler with volumetric tracking.

    Models the core operations of a Hamilton STAR or Opentrons OT-2:
    aspirate, dispense, mix, and transfer. Tracks tip state and
    enforces volume constraints.
    """

    def __init__(self, dead_volume_ul: float = 5.0,
                 max_aspirate_ul: float = 200.0):
        self.dead_volume_ul = dead_volume_ul
        self.max_aspirate_ul = max_aspirate_ul
        self.tip_volume_ul: float = 0.0
        self.tip_contents: dict = {}
        self.log: list[dict] = []

    def aspirate(self, plate: Plate, well_address: str,
                 volume_ul: float) -> None:
        """Aspirate liquid from a well into the current tip."""
        well = plate.well(well_address)
        available = well.current_volume_ul - self.dead_volume_ul
        if volume_ul > available:
            raise ValueError(
                f"Cannot aspirate {volume_ul} uL from {well_address}: "
                f"only {available:.1f} uL available above dead volume"
            )
        if self.tip_volume_ul + volume_ul > self.max_aspirate_ul:
            raise ValueError(
                f"Aspirating {volume_ul} uL would exceed tip capacity "
                f"({self.max_aspirate_ul} uL)"
            )
        well.current_volume_ul -= volume_ul
        self.tip_volume_ul += volume_ul
        self.tip_contents = dict(well.contents)
        self.log.append({
            "action": "aspirate", "well": well_address,
            "volume_ul": volume_ul
        })

    def dispense(self, plate: Plate, well_address: str,
                 volume_ul: float) -> None:
        """Dispense liquid from the current tip into a well."""
        well = plate.well(well_address)
        if volume_ul > self.tip_volume_ul:
            raise ValueError(
                f"Cannot dispense {volume_ul} uL: tip contains "
                f"only {self.tip_volume_ul:.1f} uL"
            )
        if well.current_volume_ul + volume_ul > well.max_volume_ul:
            raise ValueError(
                f"Dispensing {volume_ul} uL into {well_address} would "
                f"exceed well capacity ({well.max_volume_ul} uL)"
            )
        well.current_volume_ul += volume_ul
        self.tip_volume_ul -= volume_ul
        # Simplified mixing model: update well contents
        for solute, conc in self.tip_contents.items():
            if solute in well.contents:
                # Volume-weighted average
                total_vol = well.current_volume_ul
                old_vol = total_vol - volume_ul
                well.contents[solute] = (
                    well.contents[solute] * old_vol + conc * volume_ul
                ) / total_vol
            else:
                well.contents[solute] = conc * volume_ul / well.current_volume_ul
        self.log.append({
            "action": "dispense", "well": well_address,
            "volume_ul": volume_ul
        })

    def transfer(self, plate: Plate, source: str, dest: str,
                 volume_ul: float) -> None:
        """Transfer liquid from one well to another."""
        self.aspirate(plate, source, volume_ul)
        self.dispense(plate, dest, volume_ul)


# Demonstrate the liquid handler
plate = Plate()
handler = LiquidHandler()

# Prepare a stock solution in well A1
stock_well = plate.well("A1")
stock_well.current_volume_ul = 150.0
stock_well.contents = {"compound_X": 10.0}  # 10 mM

# Serial dilution into A2, A3, A4
for i, dest in enumerate(["A2", "A3", "A4"], start=1):
    dest_well = plate.well(dest)
    dest_well.current_volume_ul = 100.0  # pre-filled with buffer
    dest_well.contents = {"buffer": 1.0}
    handler.transfer(plate, "A1", dest, volume_ul=20.0)

# Print resulting concentrations
for addr in ["A1", "A2", "A3", "A4"]:
    w = plate.well(addr)
    conc = w.contents.get("compound_X", 0.0)
    print(f"Well {addr}: {w.current_volume_ul:.1f} uL, "
          f"[compound_X] = {conc:.3f} mM")

The simulation in Listing 55.1 enforces the same constraints a physical handler enforces: dead volume (liquid that cannot be aspirated from the bottom of a well), tip capacity, and well overflow. These constraints matter for SDL design because they limit the space of executable experiments. An AI planner that ignores dead volume will propose experiments that fail on the robot.

Once the liquid handler has prepared samples in the plate, the next question is immediate: what happened in those wells, and how do we measure it?

3. Measurement Instruments and Readout

After the liquid handler prepares samples, measurement instruments characterize them. The most common high-throughput measurement is plate reading: passing light through each well of a multiwell plate and measuring absorbance (how much light the sample absorbs, governed by the Beer-Lambert law, which states that absorbance is proportional to the product of the analyte concentration, the molar absorptivity of the compound, and the optical path length), fluorescence, or luminescence. A plate reader can measure all 96 (or 384, or 1536) wells in under a minute, producing a matrix of values that maps directly to the experimental design. (That is up to 1,536 independent measurements per minute from a single benchtop instrument, a throughput no human with a cuvette spectrophotometer could match in an entire day.)

Beyond plate readers, SDLs integrate more specialized instruments. X-ray diffraction (XRD) identifies crystal structures. Mass spectrometry (MS) determines molecular weights and fragmentation patterns. Nuclear magnetic resonance (NMR) resolves molecular geometry. Each instrument produces data in different formats (vendor-specific binary, CSV, JCAMP-DX), at different time scales (seconds for UV-Vis, hours for NMR), and with different reliability characteristics (plate readers tend to be relatively robust; mass spectrometers require frequent calibration).

The following class models a plate reader that returns absorbance measurements with realistic noise.

"""Simulated plate reader returning absorbance measurements.

Models Beer-Lambert law with Gaussian measurement noise,
background correction, and saturation at high optical density.
"""
import numpy as np
from dataclasses import dataclass


@dataclass
class PlateReaderConfig:
    """Configuration for a simulated plate reader."""
    wavelength_nm: float = 450.0
    path_length_cm: float = 0.56     # standard 96-well plate
    noise_std: float = 0.005         # typical CV ~1% at OD 0.5
    saturation_od: float = 3.5       # detector saturation
    background_od: float = 0.045     # plate + buffer background


class SimulatedPlateReader:
    """Plate reader following Beer-Lambert with noise and saturation.

    Absorbance = epsilon * c * l, where epsilon is the molar
    absorptivity, c is concentration, and l is path length.
    """

    def __init__(self, config: PlateReaderConfig = None):
        self.config = config or PlateReaderConfig()
        self.rng = np.random.default_rng(seed=42)

    def read_well(self, concentration_mM: float,
                  extinction_coeff: float = 21000.0) -> float:
        """Read absorbance for a single well.

        Args:
            concentration_mM: analyte concentration in millimolar
            extinction_coeff: molar absorptivity in L/(mol*cm)

        Returns:
            Measured optical density (absorbance units)
        """
        # Beer-Lambert: A = epsilon * c * l
        # Convert mM to M for standard units
        concentration_M = concentration_mM / 1000.0
        true_od = (extinction_coeff * concentration_M
                   * self.config.path_length_cm)

        # Add background and noise
        measured_od = (true_od + self.config.background_od
                       + self.rng.normal(0, self.config.noise_std))

        # Apply saturation (detector cannot read above this value)
        measured_od = min(measured_od, self.config.saturation_od)
        return max(measured_od, 0.0)  # OD cannot be negative

    def read_plate(self, concentration_matrix: np.ndarray,
                   extinction_coeff: float = 21000.0) -> np.ndarray:
        """Read all wells of a plate.

        Args:
            concentration_matrix: (rows, cols) array of concentrations
            extinction_coeff: molar absorptivity

        Returns:
            (rows, cols) array of measured absorbance values
        """
        readings = np.zeros_like(concentration_matrix)
        for i in range(concentration_matrix.shape[0]):
            for j in range(concentration_matrix.shape[1]):
                readings[i, j] = self.read_well(
                    concentration_matrix[i, j], extinction_coeff
                )
        return readings


# Demonstrate: read a dilution series
reader = SimulatedPlateReader()
concentrations = np.array([10.0, 5.0, 2.5, 1.25, 0.625, 0.3125])
readings = np.array([reader.read_well(c) for c in concentrations])

print("Concentration (mM) | Absorbance (OD)")
print("-" * 38)
for c, od in zip(concentrations, readings):
    print(f"    {c:>8.4f}       |    {od:.4f}")

Simulating an individual instrument is straightforward, but a real SDL must coordinate many instruments that speak entirely different languages; the challenge shifts from what each device does to how they talk to one another.

4. Instrument Control Protocols

Real laboratory instruments communicate over several standardized protocols. The most important for SDL integration are:

SiLA 2 (Standardization in Laboratory Automation, version 2) defines a gRPC-based (gRPC is a high-performance remote procedure call framework that uses binary serialization for efficient communication between services) protocol for instrument control. Each instrument exposes "features" (capabilities like "Aspirate," "Dispense," "ReadAbsorbance") as gRPC services with defined request and response schemas. SiLA 2's strength is composability: because every instrument speaks the same protocol, the orchestration layer can address any instrument through the same client code.

OPC UA (Open Platform Communications Unified Architecture) is the industrial automation standard for process instruments. It provides a hierarchical information model where instruments publish variables (temperature, pressure, flow rate) that clients can read, write, and subscribe to. OPC UA is more common in chemical engineering and process chemistry than in life sciences.

REST/HTTP is increasingly used by modern platforms, particularly cloud-connected instruments. The Opentrons HTTP API, Emerald Cloud Lab's API, and many LIMS (Laboratory Information Management Systems) expose REST endpoints. REST has lower integration complexity than gRPC for simple request-response patterns and is easier to integrate with web-based AI planners.

The instrument interface takes the form of a Python abstract class that every adapter must implement.

"""Abstract instrument interface for SDL integration.

Every instrument in the SDL must implement this interface,
providing a uniform API for the orchestration layer.
"""
from abc import ABC, abstractmethod
from dataclasses import dataclass
from enum import Enum
from typing import Any
import json
import time


class InstrumentStatus(Enum):
    IDLE = "idle"
    BUSY = "busy"
    ERROR = "error"
    MAINTENANCE = "maintenance"


@dataclass
class InstrumentCommand:
    """A command to be sent to an instrument."""
    instrument_id: str
    action: str
    parameters: dict
    timestamp: float = 0.0

    def __post_init__(self):
        if self.timestamp == 0.0:
            self.timestamp = time.time()

    def to_json(self) -> str:
        return json.dumps({
            "instrument_id": self.instrument_id,
            "action": self.action,
            "parameters": self.parameters,
            "timestamp": self.timestamp
        })


@dataclass
class InstrumentResult:
    """Result returned by an instrument after executing a command."""
    instrument_id: str
    command_action: str
    success: bool
    data: dict
    error_message: str = ""
    execution_time_s: float = 0.0


class InstrumentAdapter(ABC):
    """Abstract base class for instrument integration.

    Every physical or simulated instrument in the SDL implements
    this interface. The orchestration layer interacts with instruments
    exclusively through these methods.
    """

    @abstractmethod
    def get_status(self) -> InstrumentStatus:
        """Query the current instrument status."""
        ...

    @abstractmethod
    def execute(self, command: InstrumentCommand) -> InstrumentResult:
        """Execute a command and return the result."""
        ...

    @abstractmethod
    def validate_command(self, command: InstrumentCommand) -> bool:
        """Check whether a command is valid before execution."""
        ...

    @property
    @abstractmethod
    def capabilities(self) -> list[str]:
        """List the actions this instrument supports."""
        ...


class SimulatedPlateReaderAdapter(InstrumentAdapter):
    """Adapter wrapping our simulated plate reader."""

    def __init__(self):
        self.reader = SimulatedPlateReader()
        self._status = InstrumentStatus.IDLE

    def get_status(self) -> InstrumentStatus:
        return self._status

    def execute(self, command: InstrumentCommand) -> InstrumentResult:
        self._status = InstrumentStatus.BUSY
        start = time.time()
        try:
            if command.action == "read_well":
                od = self.reader.read_well(
                    concentration_mM=command.parameters["concentration_mM"],
                    extinction_coeff=command.parameters.get(
                        "extinction_coeff", 21000.0
                    )
                )
                result = InstrumentResult(
                    instrument_id=command.instrument_id,
                    command_action=command.action,
                    success=True,
                    data={"absorbance_od": od},
                    execution_time_s=time.time() - start
                )
            else:
                result = InstrumentResult(
                    instrument_id=command.instrument_id,
                    command_action=command.action,
                    success=False,
                    data={},
                    error_message=f"Unknown action: {command.action}"
                )
        finally:
            self._status = InstrumentStatus.IDLE
        return result

    def validate_command(self, command: InstrumentCommand) -> bool:
        if command.action == "read_well":
            return "concentration_mM" in command.parameters
        return False

    @property
    def capabilities(self) -> list[str]:
        return ["read_well"]


# Demonstrate the adapter pattern
adapter = SimulatedPlateReaderAdapter()
cmd = InstrumentCommand(
    instrument_id="plate_reader_01",
    action="read_well",
    parameters={"concentration_mM": 5.0}
)

print(f"Status: {adapter.get_status().value}")
print(f"Valid command: {adapter.validate_command(cmd)}")
result = adapter.execute(cmd)
print(f"Absorbance: {result.data['absorbance_od']:.4f} OD")
print(f"Execution time: {result.execution_time_s*1000:.1f} ms")

5. Scheduling and Orchestration

With uniform instrument adapters in place, the remaining bottleneck is coordination: deciding which instrument runs which operation, in what order, and what to do when something goes wrong.

A realistic SDL runs multiple instruments concurrently. While the plate reader measures batch \(n\), the liquid handler prepares batch \(n+1\), and the AI planner computes acquisition scores (numerical rankings of how informative each candidate experiment would be, as introduced in Section 5.2) for batch \(n+2\). This concurrency requires a scheduler that manages instrument availability, handles timing dependencies, and recovers from failures.

Scheduling maps to the job-shop problem from operations research. Each experiment is a "job" consisting of ordered "operations" (prepare, incubate, measure), and each instrument is a "machine" that processes one operation at a time. The scheduler aims to maximize throughput (experiments per hour) while respecting timing constraints (incubation times, measurement windows) and resource limits (available tips, plate positions).

"""Simple priority-queue scheduler for SDL instrument orchestration.

Manages a queue of experiment tasks, dispatches them to available
instruments, and handles completion callbacks.
"""
import heapq
from dataclasses import dataclass, field
from typing import Callable
from enum import Enum


class TaskState(Enum):
    PENDING = "pending"
    RUNNING = "running"
    COMPLETED = "completed"
    FAILED = "failed"


@dataclass(order=True)
class ExperimentTask:
    """A single task in the SDL workflow."""
    priority: int
    task_id: str = field(compare=False)
    instrument_id: str = field(compare=False)
    command: InstrumentCommand = field(compare=False)
    state: TaskState = field(default=TaskState.PENDING, compare=False)
    depends_on: list[str] = field(default_factory=list, compare=False)
    result: InstrumentResult = field(default=None, compare=False)


class SDLScheduler:
    """Priority-queue scheduler for SDL experiments.

    Dispatches tasks to instruments when their dependencies are
    satisfied and instruments are available.
    """

    def __init__(self):
        self.queue: list[ExperimentTask] = []
        self.instruments: dict[str, InstrumentAdapter] = {}
        self.completed: dict[str, ExperimentTask] = {}
        self.task_registry: dict[str, ExperimentTask] = {}

    def register_instrument(self, instrument_id: str,
                            adapter: InstrumentAdapter) -> None:
        """Register an instrument with the scheduler."""
        self.instruments[instrument_id] = adapter

    def submit(self, task: ExperimentTask) -> None:
        """Submit a task to the scheduling queue."""
        heapq.heappush(self.queue, task)
        self.task_registry[task.task_id] = task

    def _dependencies_met(self, task: ExperimentTask) -> bool:
        """Check if all dependencies for a task are completed."""
        return all(
            dep_id in self.completed
            for dep_id in task.depends_on
        )

    def _instrument_available(self, instrument_id: str) -> bool:
        """Check if an instrument is idle and ready."""
        if instrument_id not in self.instruments:
            return False
        return (self.instruments[instrument_id].get_status()
                == InstrumentStatus.IDLE)

    def step(self) -> list[ExperimentTask]:
        """Execute one scheduling step: dispatch ready tasks.

        Returns list of tasks that completed in this step.
        """
        completed_this_step = []
        remaining = []

        while self.queue:
            task = heapq.heappop(self.queue)

            if (self._dependencies_met(task)
                    and self._instrument_available(task.instrument_id)):
                # Dispatch the task
                task.state = TaskState.RUNNING
                adapter = self.instruments[task.instrument_id]
                result = adapter.execute(task.command)
                task.result = result
                task.state = (TaskState.COMPLETED if result.success
                              else TaskState.FAILED)
                self.completed[task.task_id] = task
                completed_this_step.append(task)
            else:
                remaining.append(task)

        # Re-queue tasks that could not run
        for task in remaining:
            heapq.heappush(self.queue, task)

        return completed_this_step

    def run_all(self, max_steps: int = 100) -> dict[str, ExperimentTask]:
        """Run the scheduler until the queue is empty or max steps."""
        for _ in range(max_steps):
            if not self.queue:
                break
            self.step()
        return self.completed


# Demonstrate: schedule three measurements with dependencies
scheduler = SDLScheduler()
scheduler.register_instrument(
    "plate_reader_01", SimulatedPlateReaderAdapter()
)

# Three experiments: measure at 1, 5, and 10 mM
for i, conc in enumerate([1.0, 5.0, 10.0]):
    task = ExperimentTask(
        priority=i,
        task_id=f"measure_{i}",
        instrument_id="plate_reader_01",
        command=InstrumentCommand(
            instrument_id="plate_reader_01",
            action="read_well",
            parameters={"concentration_mM": conc}
        )
    )
    scheduler.submit(task)

results = scheduler.run_all()
for task_id, task in sorted(results.items()):
    od = task.result.data.get("absorbance_od", "N/A")
    print(f"{task_id}: OD = {od:.4f} ({task.state.value})")

6. The Software Stack in Practice

One infrastructure concern that cuts across all layers is safety interlocks: checks that prevent physically dangerous or scientifically invalid operations regardless of what the upper layers request. At the actuator level, interlocks prevent a robotic arm from moving beyond its range of motion or a pump from exceeding its pressure limit. At the instrument level, they reject commands that would overflow a well or aspirate from an empty one (as our LiquidHandler does with its volume checks). At the orchestration level, they enforce timing constraints such as minimum incubation periods and prevent scheduling two instruments to access the same plate simultaneously. These deterministic guards are essential because the intelligence layer, whether a Bayesian optimizer or an LLM, can propose experiments that are logically coherent but physically unsafe.

Putting the pieces together, a production SDL software stack typically includes:

• Instrument drivers: vendor SDKs or SiLA 2 adapters that translate between the orchestration layer and physical hardware.
• A workflow engine: Prefect, Airflow, or a custom DAG (directed acyclic graph, where each node is a task and edges enforce execution order) executor that manages experiment pipelines with retry logic and logging.
• A data layer: a database (PostgreSQL, MongoDB) storing experiment definitions, instrument readings, and provenance metadata. This connects to the experiment registry from Chapter 47.
• An API gateway: a FastAPI or Flask server that exposes the SDL's capabilities to the AI planner. We build this in Section 55.3.
• The AI planner: a Bayesian optimization loop (BoTorch, Ax) or an LLM-based planner (as in Coscientist) that consumes results and proposes new experiments.

The Acceleration Consortium at the University of Toronto maintains an open-source reference implementation of this stack called Atlas, which provides pluggable modules for each layer. We use a simplified version of this architecture for the SDL recipe in Section 55.4.
